● Standard Communication Functions
6-9
》
Print description
Massage name
［ ］
Column 1 Column 2 Column 3
[
0 0 ・・・・・・・・] [・・・・・・・・・・] [・・・・・・・・・・] 
2011.07.07 12:45
《
Print layout
Menu
Manual
Prev.
col.
Next
col.
Maintenance
Auxiliary
function
Show fault
Status:Ready Com=0
Start
up
Shut
down
Comm
On/Off
Operation
management
Environment
setup menu
》
Print description
Column 1 Column 2 Column 3
[
0 0 ・・・・・・・・] [・・・・・・・・・・] [・・・・・・・・・・]
2011.07.07 12:45
《
Print layout
Menu
Manual
Prev.
col.
Next
col.
Maintenance
Auxiliary
function
Show fault
Status:Ready Com=1
Start
up
Shut
down
Comm
On/Off
Operation
management
Environment
setup menu
Massage name
［ ］

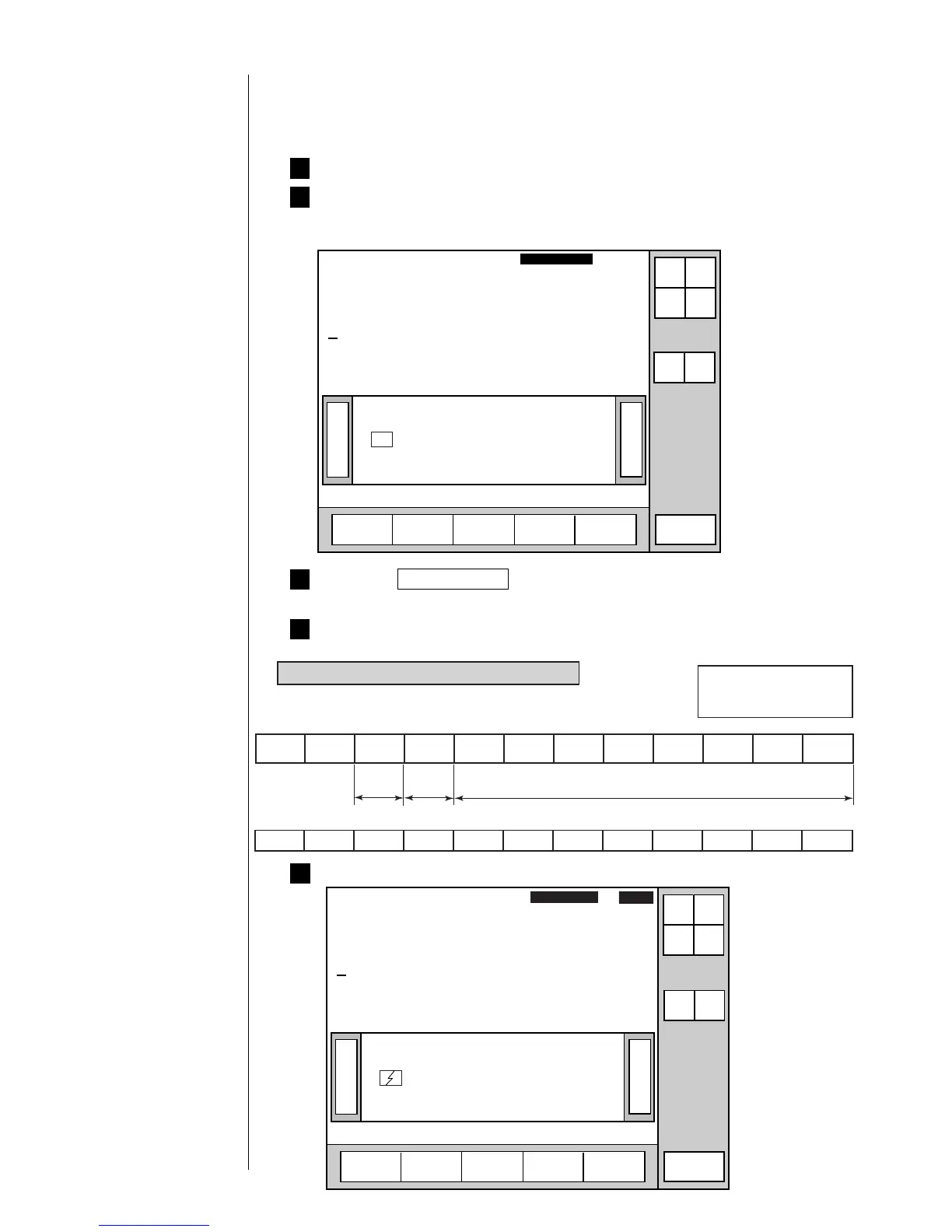

6.3.4 User Pattern Character Transmission
¡ The procedure for saving a user pattern as No. "00" for a character
size of 5 x 5 is shown in the example below.
１ Assume that the printer is ready for printing.
2 You can see that a registration No. "00" user pattern for a character
size of 5 x 5 (spaces only) is entered in the first digit position of the
first row.
4 Transmit "character size", "registration number", and "user pattern
data" from the external device to the IJ printer.
5 The transmitted user pattern appears on the display.
Shows text data between STX and ETX
ESC Header Size Data1 Data2 Data3 Data4 Data5 Data6 Data7 Data8
Character
size
1BH 20H 30H D0H 00H 01H 0CH 14H 00H 00H 00H 00H
Transmission
code
Communication byte
count
For "1 byte"
Regist-
ration
Regist-
ration No.
User pattern data
Transmission
data
3 Press the Comm On/Off key.
The status then changes from "off-line" to "on-line".
