1-16 ● Component Names and Functions
1.3 Component Names and Functions

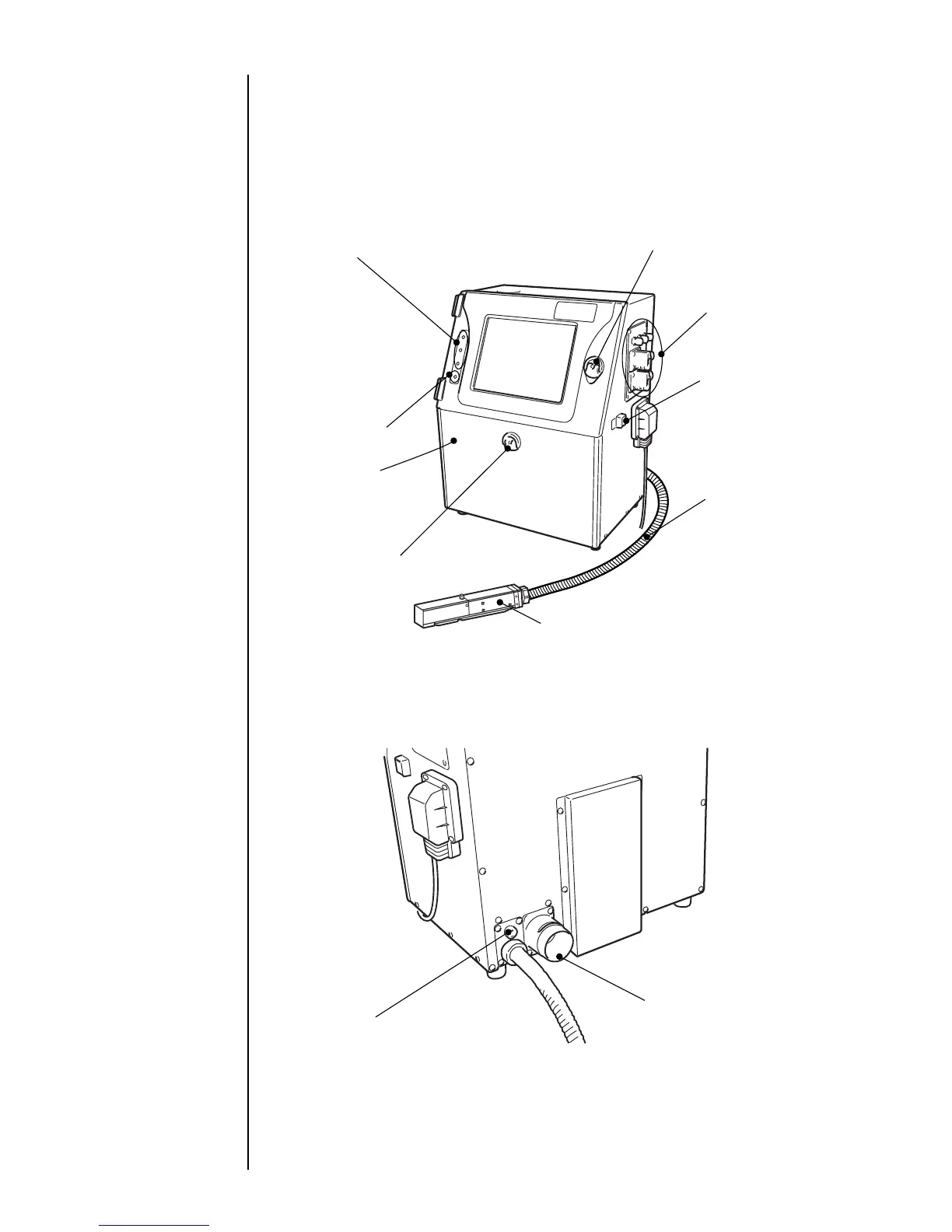

1.3.1 External views
Power switch
Push ON-push OFF
altanative.
Maintenance cover
Opened/closed for ink
replacement and other
maintenance purposes.
Handle
Print head
This section performs printing.
Operating status indicator lamps
Displays "Ready", "Fault" and "Warning"
Connection tube (4m)
Power lamp
Various signals intakes
See "1.5 Connection
of signals."
Handle
Turn it by 90 degrees to open
and close it.
Air-purge connection port
See Section 1.2.6, Print
head air purge.
Exhaust duct connection port
