● Usage Precautions 1-13
(1) Situations requiring an air purge
When the printer is used in a highly humid place such as a beer or other
beverage can line (If you use the printer in an environment in which the
relative humidity is 85% or higher, complete the print head air-purge
procedure).
When a water drainage blow sequence is performed before printing.
When the printer is used in a place where a considerable amount of paper
powder or other dust exists.
When the printing distance is short so that the end of the print head is
splashed with ink.
When you use the JP-K31A, JP-K60, JP-F63,JP-K68, JP-K70, JP-T71,
JP-K77, JP-E78, JP-K84 ink.
5
(2) Air-purging procedure
Introduce clean dry air into the print head air purge connection port (Rc 1/8 (PT
1/8)×screw) in the rear of the printer main body at a pressure of about 0.2 to 0.4
MPa. If it is possible that the employed air tanks oil or water,
turn it into clean dry air with an air filter, micro-mist separator, or the like before
introducing it into the printer main body.

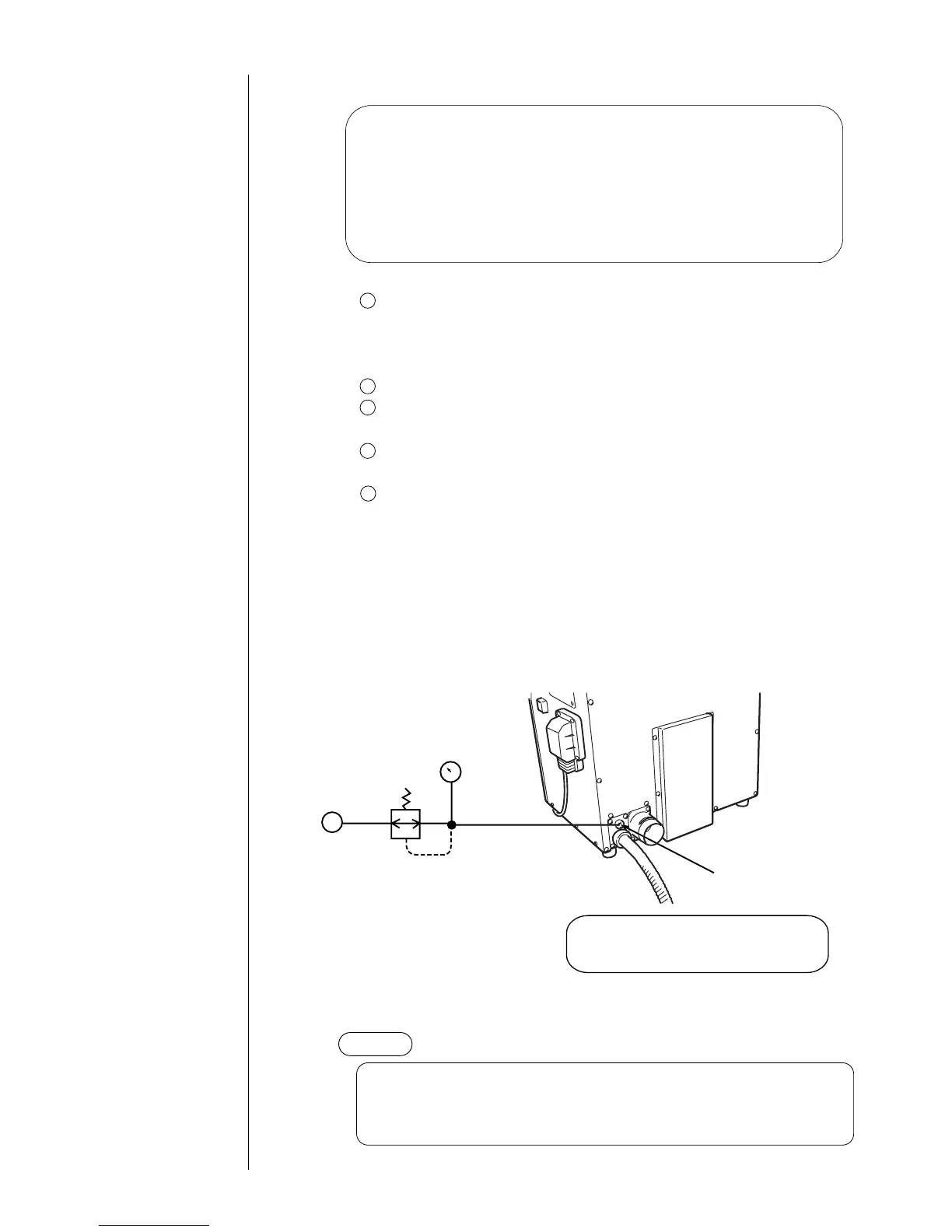

NOTICE
Pressure gauge
Pressure-reducing valve
Print head
air purge connection port
Rear of
main body
Air source
(clean dry air)
Since this is a plastic type, use care to
avoid overtightening when using a metal
joint to establish a connection.
The maximum tightening torque value is 1.47 N・m.
0.2〜0.4MPa
If the air-purge amount is excessive, print irregularities may occur.
After air-purge pressure adjustment, be sure to perform a printing test to
verify the printing results.
1.2.6 Print head air purge
1
2
3
4
If the makeup ink remains in the electrode section after cleaning or if
you use the IJ printer at a high humidity, moisture condensation may
occur within the print head, causing leakage from the deflection
electrode section. It is also important to remember that dust or splashed
ink accumulation on the deflection electrode section may cause leakage.
Performing the following air purge procedure for the print head interior is
effective in preventing such leakage.
