IPDS for Control Units

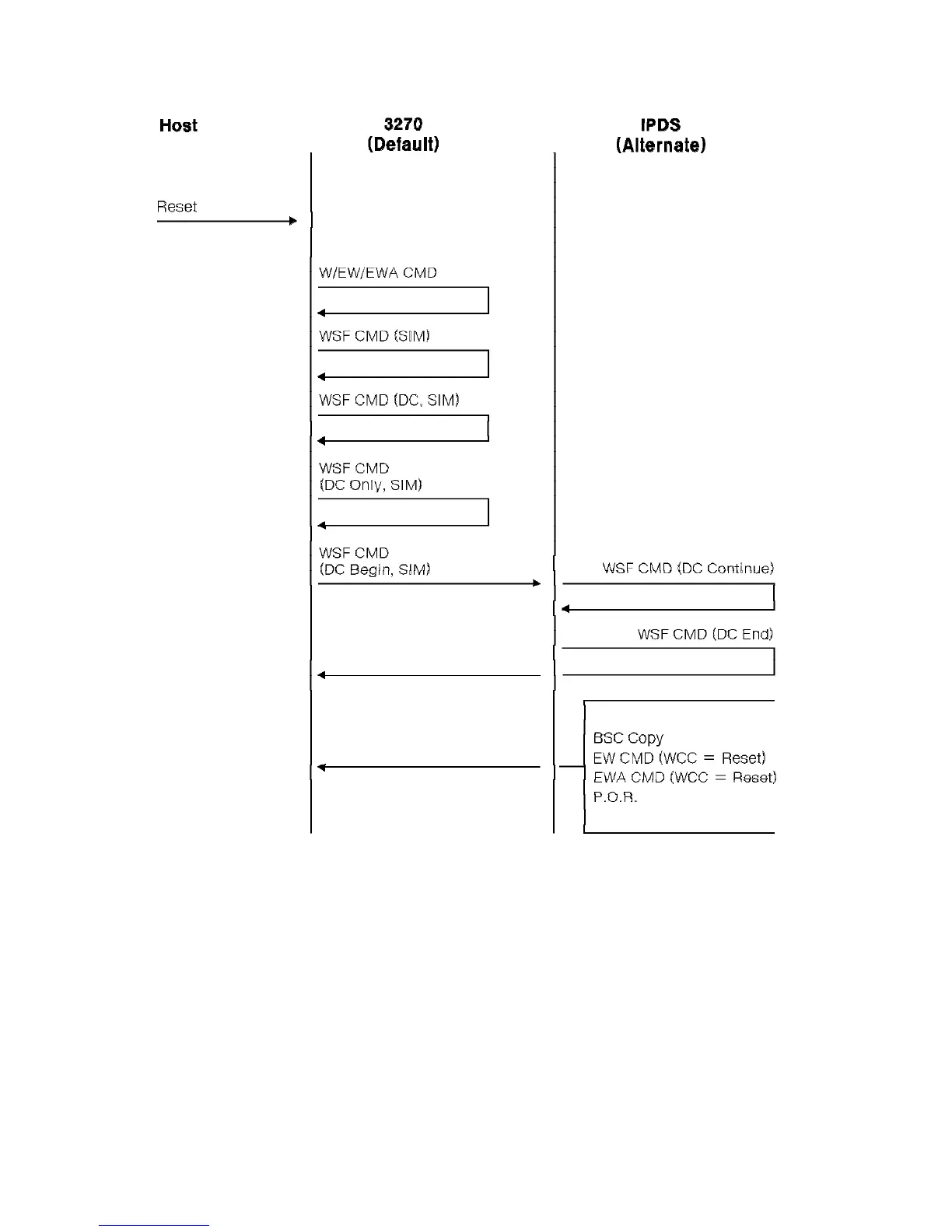

Figure 35. DSC Data Stream Modes
Implicit Termination of IPDS Mode
If IPDS mode is active across more than one transmission through the use of
data chaining, any of the following causes termination of the in-chain state and is
an implicit termination of IPDS mode:
•
Copy (BSC)
•
Erase Write (WCC equals Reset)
•
Erase Write Alternate (WCC equals Reset)
•
Power-on-Reset (POR).
Note: IPDS always returns to the home state upon termination.
180 6400 IPDS
