Icom IC-7000 Instruction Manual

45
External Keypad (VOICE)
This item sets the external keypad capability and
function.
For your information

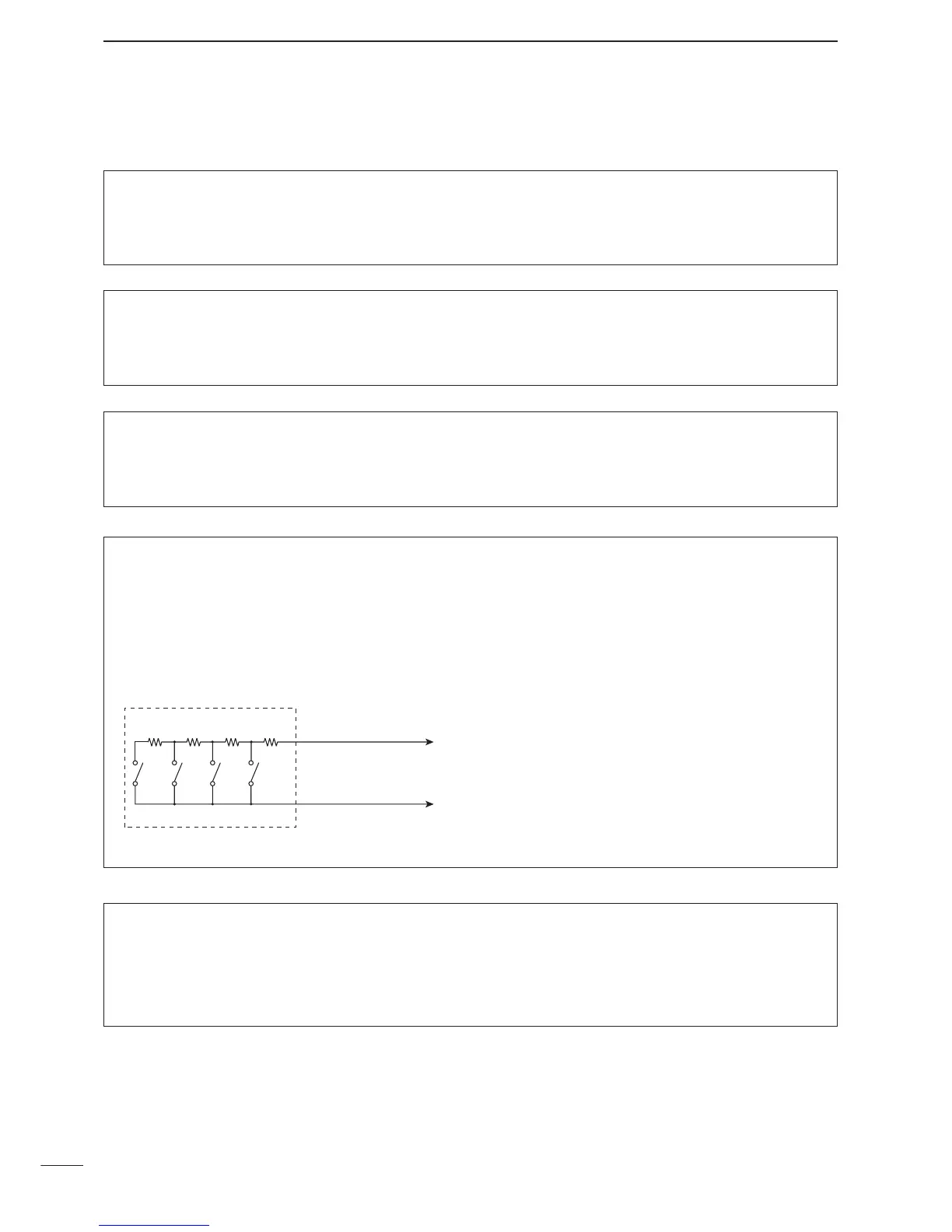

The following diagram shows the equivalent circuit of
an external keypad and connects to the pin 3 and
pin 7 of the [MIC] connector (p. 10).
ON
: Pushing one of external keypad switches, transmits
the desired voice memory contents during a phone
mode (SSB, AM, FM) operation.
OFF
: External keypad does not function.
(default)
To [MIC] connector pin e
To [MIC] connector pin u
1.5k1
±
5%
1.5k1
±
5%
2.2k1
±
5%
4.7k1
±
5%
S1
(T1/M1)
S2
(T2/M2)
S3
(T3/M3)
S4
(T4/M4)
USER EXTERNAL KEYPAD
46
External Keypad (KEYER)
This item sets the external keypad capability and
function.
User external keypad is same as above.
ON
: Pushing one of external keypad switches, transmits
the desired memory keyer contents during CW
mode operation.
OFF
: External keypad does not function. (default)
137
13
SET MODE
■ Miscellaneous (others) set mode (continued)
43
Mode Select (FM)
This item inhibits the selection of FM mode, and al-
lows you to simplify operation during normal opera-
tion.
ON
FM mode is selectable.
(default)
OFF
FM mode is inhibited.
44
Mode Select (WFM)
This item inhibits the selection of WFM mode, and al-
lows you to simplify operation during normal opera-
tion.
ON
WFM mode is selectable.
(default)
OFF
WFM mode is inihibited.
42
Mode Select (AM)
This item inhibits the selection of AM mode, and al-
lows you to simplify operation during normal opera-
tion.
ON
AM mode is selectable.
(default)
OFF
AM mode is inhibited.

Icom IC-7000 Specifications

General

Input voltage	13.8 V
Microphone included	Yes
Product type	Portable CB radio
Product color	Black
Housing material	-
Frequency range	0.5 - 455000 MHz
Channels quantity	503 channels

Weight and Dimensions

Depth	180 mm
Width	167 mm
Height	58 mm
