Icom IC-7000 Instruction Manual

31
3
BASIC OPERATION

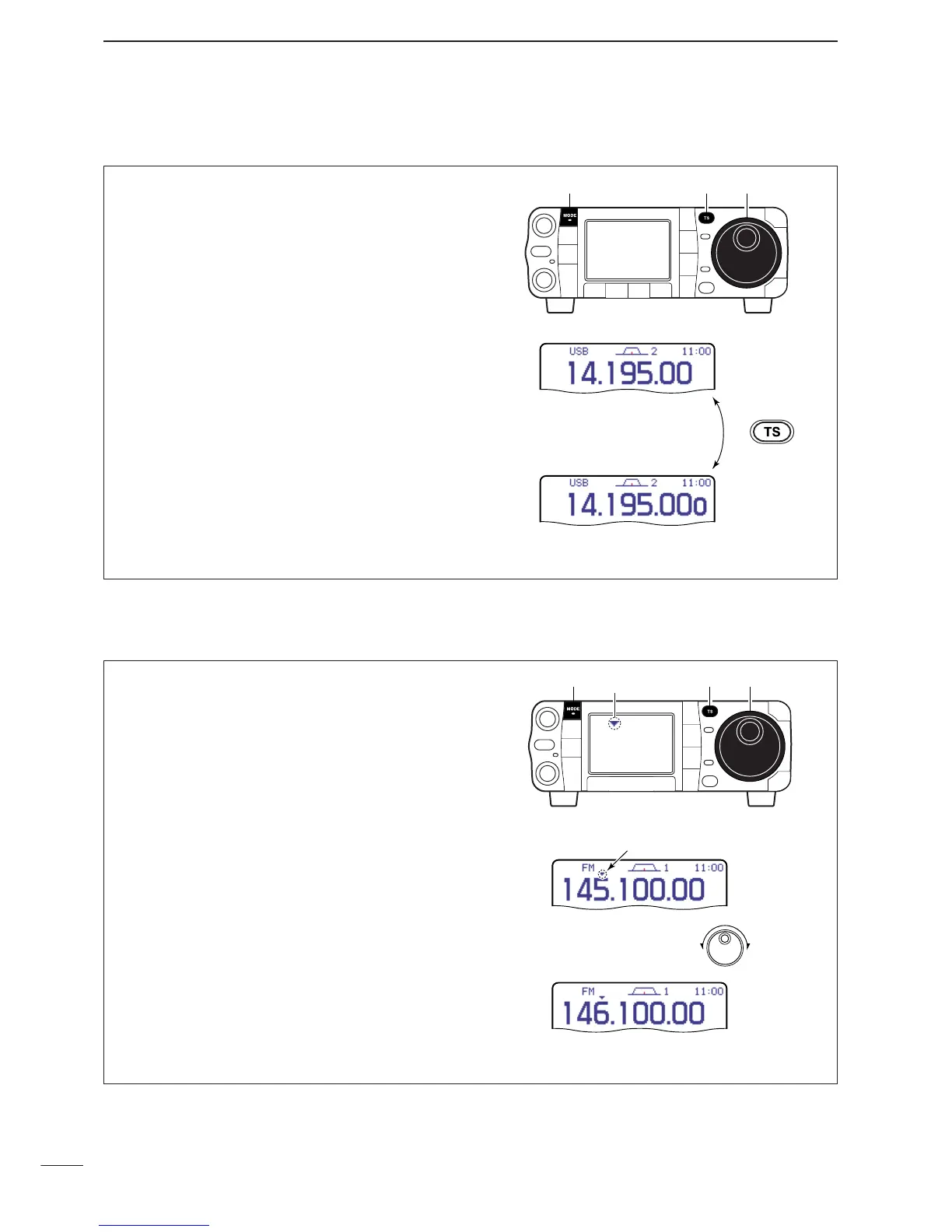

When neither the quick tuning step or programmable
tuning step “
Z ” appear, rotating [DIAL] changes the
frequency in increments of 1 or 10 Hz. These tuning
steps are only available in SSB, CW and RTTY
modes.
q Select SSB, CW or RTTY mode if necessary.
w Push and hold [TS] for 1 sec. to toggle between
the 1 Hz and 10 Hz step settings.
•When the 1 Hz step is selected, the 1 Hz digit appears
in the frequency indication; when the 10 Hz step is se-
lected, the 1 Hz digit disappears from the frequency in-
dication.
•Rotating [DIAL] changes the frequency in 1 Hz or 10Hz
tuning step.
Push and hold
for 1 sec.
Rotating [DIAL] changes the
frequency in 1 Hz steps.
Rotating [DIAL] changes the
frequency in 10 Hz steps.
[TS][MODE] [DIAL]
D
Selecting 1 Hz or 10 Hz step (SSB/CW/RTTY only)
The quick tuning step function allows you to change
the frequency in 1 MHz steps when rotating [DIAL].
This function is only available in FM, WFM and AM
modes.
q Select FM, WFM or AM mode if necessary.
w Push [TS] momentarily to toggle between the 1
MHz tuning step and the programmable tuning
step.
•“ Z ” appears above the 1 MHz indicator when the 1
MHz tuning step is selected.
•Rotating [DIAL] changes the frequency 1 MHz.
Quick tuning step indicator
Rotating [DIAL]
changes the frequency
in 1 MHz steps.
[TS][MODE] [DIAL]
Appears
D
1 MHz quick tuning step (FM/WFM/AM only)

Icom IC-7000 Specifications

General

Input voltage	13.8 V
Microphone included	Yes
Product type	Portable CB radio
Product color	Black
Housing material	-
Frequency range	0.5 - 455000 MHz
Channels quantity	503 channels

Weight and Dimensions

Depth	180 mm
Width	167 mm
Height	58 mm
