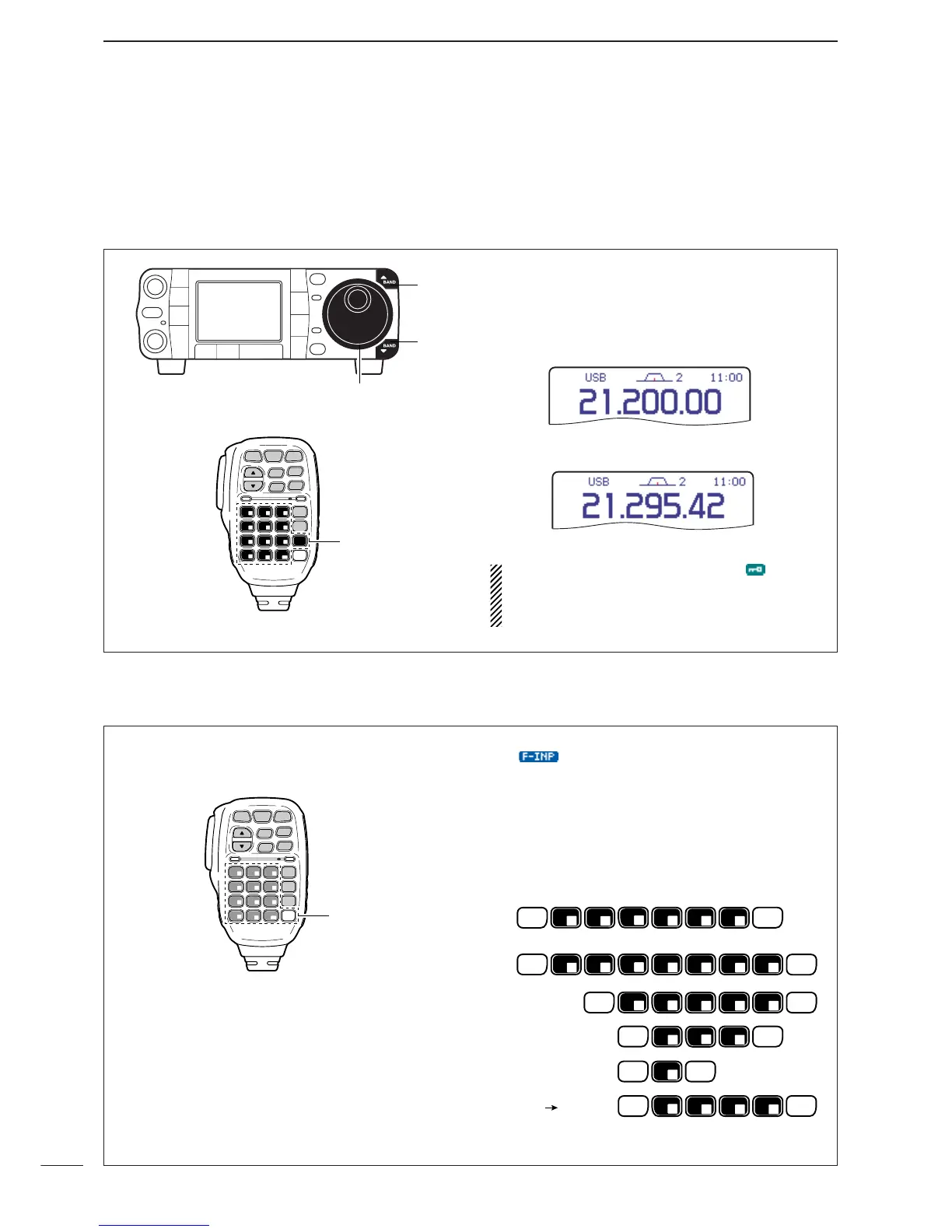

BASIC OPERATION
The transceiver has several tuning methods for conve-
nient frequency tuning.
■ Frequency setting
D
Tuning with the main dial
q Push [
Y
( BAND )] or [
Z
( BAND )] to select the desired
band. Or push the desired band key on the micro-
phone 1–3 times.
•Three different frequencies can be selected on each
band with the microphone’s band key. (See previous
page “Using the band stacking register.”)
w Rotate [DIAL] to set the desired frequency.
If the dial lock function is activated, “ ” indicator
lights, and [DIAL] does not function. In this case,
push [SPCH/LOCK] to deactivate the lock func-
tion. (p. 37)
SPCH
/LOCK
TUNER
/CALL
XFC
V/M
F-1
F-2
FIL
MODE
GENE
MW
123
456
789
.
0
CE
F-INP
ENT
1.8 3.5 7
10 14 18
21 24 28
50 144 430
Band keys
HM-151
[Y]
[Z]
[DIAL]
D
Direct frequency entry with the microphone’s keypad
The HM-151 has a keypad for direct frequency entry
as described right.
q Push [F-INP/ENT].
• “ ” appears.
w Input the desired frequency.
•Push [(50)•] to input “ • (decimal point)” between the
MHz digits and kHz digits.
e Push [F-INP/ENT] to set the input frequency.
•To cancel the input, push [CE] instead of [F-INP/ENT].
[EXAMPLES]
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
1
1.8
1
1.8
1
1.8
2
3.5
2
3.5
2
3.5
4
10
4
10
5
14
5
14
5
14
F-INP
ENT
5
14
6
18
7
21
7
21
7
21
8
24
.
50
.
50
.
50
.
50
.
50
0
144
0
144
0
144
0
144
21.280 21.245
14.025 MHz
18.0725 MHz
706 kHz
5.100 MHz
7.000 MHz
SPCH
/LOCK
TUNER
/CALL
XFC
V/M
F-1
F-2
FIL
MODE
GENE
MW
123
456
789
.
0
CE
F-INP
ENT
1.8 3.5 7
10 14 18
21 24 28
50 144 430
Keypad
HM-151
