Icom IC-7000 Instruction Manual

D Multi-function meter
36
3
BASIC OPERATION
3

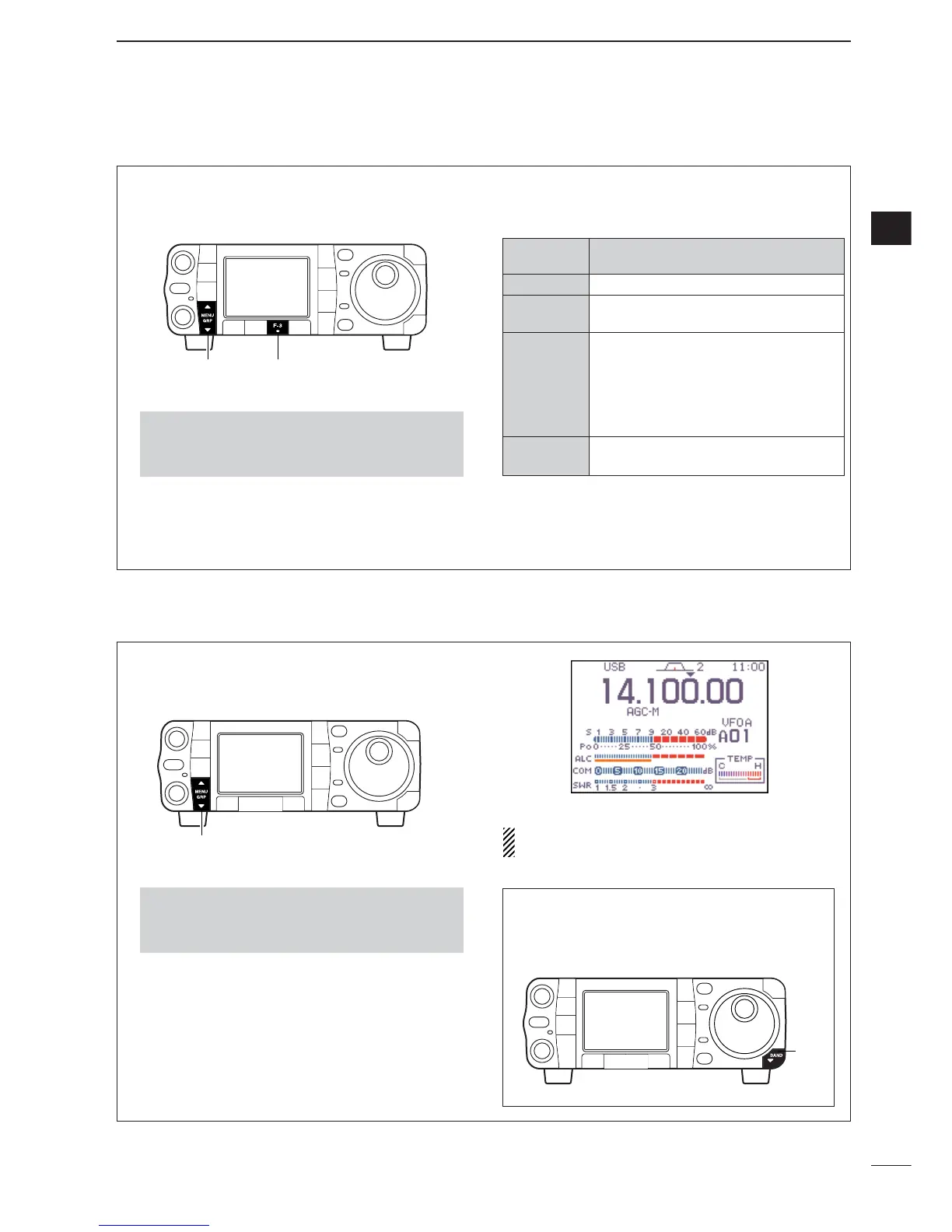

■ Meter function
The transceiver has 4 transmit meter functions for
your convenience. Select the desired meter with the
[F-3
MET
] in the
S
- 1
display.
q Select
S
- 1
.
w Push [F-3
MET
] one or more times to select from
RF power
(Po), SWR, ALC or compression level
(COM).
•The display indication changes as the table at the right.
•Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group
S
.
•Push [MENU/GRP] momentarily one or more times to
select the menu
S
- 1
.
[MENU/GRP] [F-3]
DISPLAY
MEASUREMENT
INDICATION
Po
Indicates the relative RF output power in %.
SWR
Indicates the SWR on the transmission
line.
ALC
Indicates the ALC level. When the meter
movement shows the input signal level ex-
ceeds the allowable level, the ALC limits
the RF power. In such cases, reduce the
MIC gain setting (see p. 38) in the quick
set mode.
COM
Indicates the compression level when the
speech compressor is in use.
In addition, the transceiver can display the multi-func-
tion meter in the graphic display, which displays all
transmit meters simultaneously.
➥ Select
G
- 2
(Multi-meter).
The multi-function meter displays the internal tem-
perature meter for your reference.
•Push and hold [MENU/GRP] for 1 sec. once or twice
to select the menu group
G
.
•Push [MENU/GRP] momentarily one or more times to
select the menu
G
-
2
(Multi-meter).
[MENU/GRP]
Quick entry
➥ Push [
Z
( BAND )] for 1 sec. to turn the multi-
function meter ON and OFF.
•Push [
Z
( MENU / GRP )] also to turn OFF.
[Z]
