Invacare Pronto M91 - Electro-Mechanical Parking Brake Testing

SECTION 10—MOTORS
Part No. 1125038 101 Pronto
®
M91™and M94™
Electro-Mechanical Parking Brake Testing
NOTE:Forthisprocedure,refertoFIGURE 10.4.
1. Onthefour‐pinmotorconnector,locatetheside‐by‐sideconnectorsintheblack
housings(FIGURE 10.4).
2. Setthedigitalmultimetertoreadohms(Ω).
3. Measuretheresistancebetweenthetwobrakecontacts.Anormalreadingisbetween
45‐100ohmsdependingonthemotor.Areadingof0ohms(Ω)oraveryhighreading;
i.e.,MEGohmsorO.L.(outoflimit)indicatesashortedbrakeoranopenconnection
respectively.Ifeitherconditionexists,sendthemotortoInvacareTechnicalServicefor
inspection/repair.
 WARNING
A shorted electro-mechanical brake will damage the brake output section in the
controller. DO NOT connect a shorted electro-mechanical brake to a good control-
ler module. A shorted brake MUST be replaced.
NOTE:AbadmotorcandamagethecontrollermodulebutabadcontrollerwillNOTdamagea
motor.
.

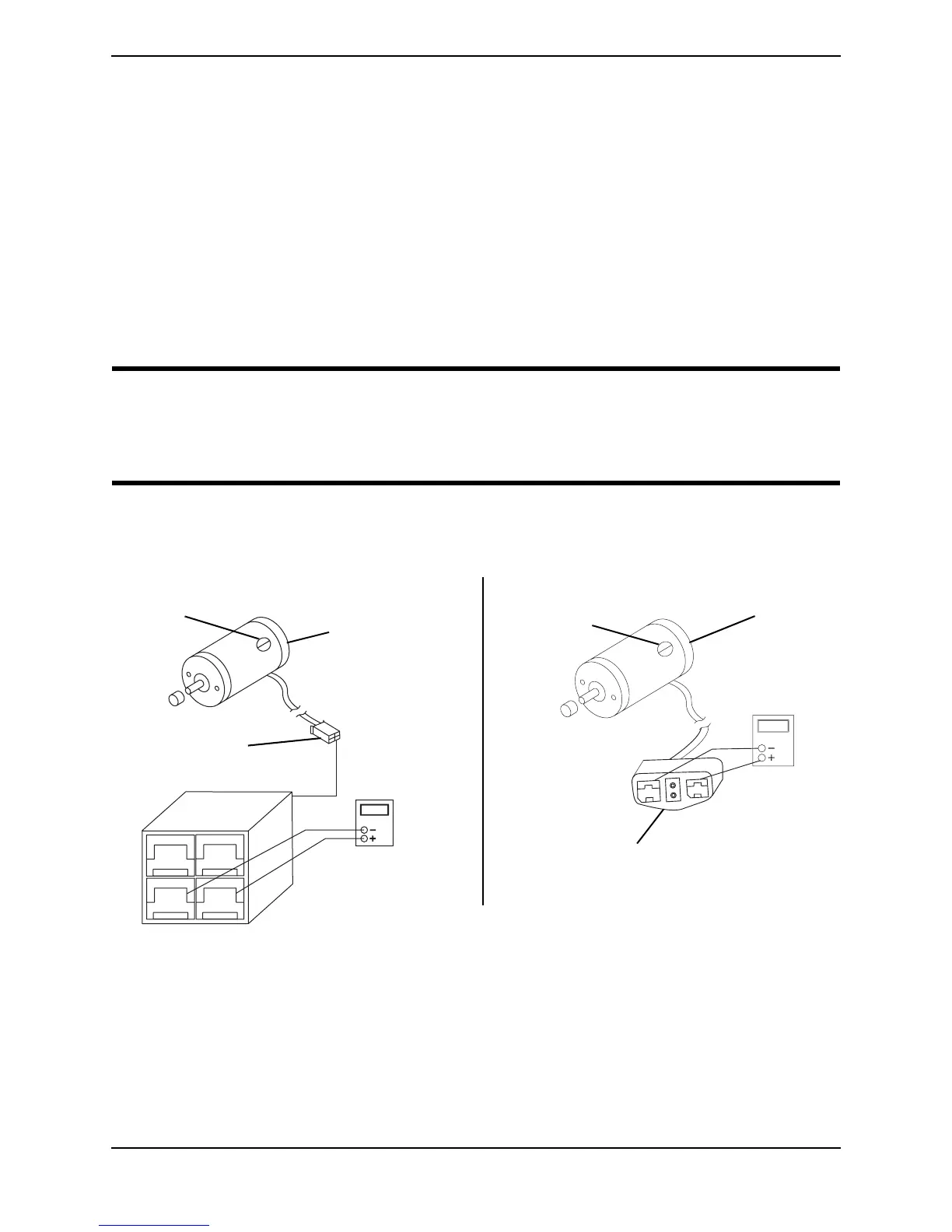

FIGURE 10.4 Electro-Mechanical Parking Brake Testing
Black
Black
Black
Red
4 Pin Motor
Connector
Motor
Cap
4 Pin Motor Connector
Motor
Cap
MKIV 4-pin Motor Connector MK
5
and MK6i 4-pin Motor Connector
