Invacare Pronto M91 Service Manual

SECTION 11—BATTERIES
Pronto
®
M91™and M94™ 102 Part No. 1125038
SECTION 11—BATTERIES
 WARNING
Make sure power to the wheelchair is OFF before performing this section.
NEVER allow any of your tools and/or battery cable(s) to contact BOTH battery
terminal(s)/post(s) at the same time. An electrical short may occur and serious
personal injury or damage may occur.
The use of rubber gloves is recommended when working with batteries.
Always use a battery lifting strap when lifting a battery. It is the most convenient
method and assures that the battery acid will not spill. It also helps to prolong the
life of the battery.
Avoid storage or use near external flame or combustible products.
DO NOT tip the batteries. Keep the batteries in an upright position.
Invacare strongly recommends that battery installation and battery replacement
always be done by a qualified technician.
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely - otherwise injury or damage may result.

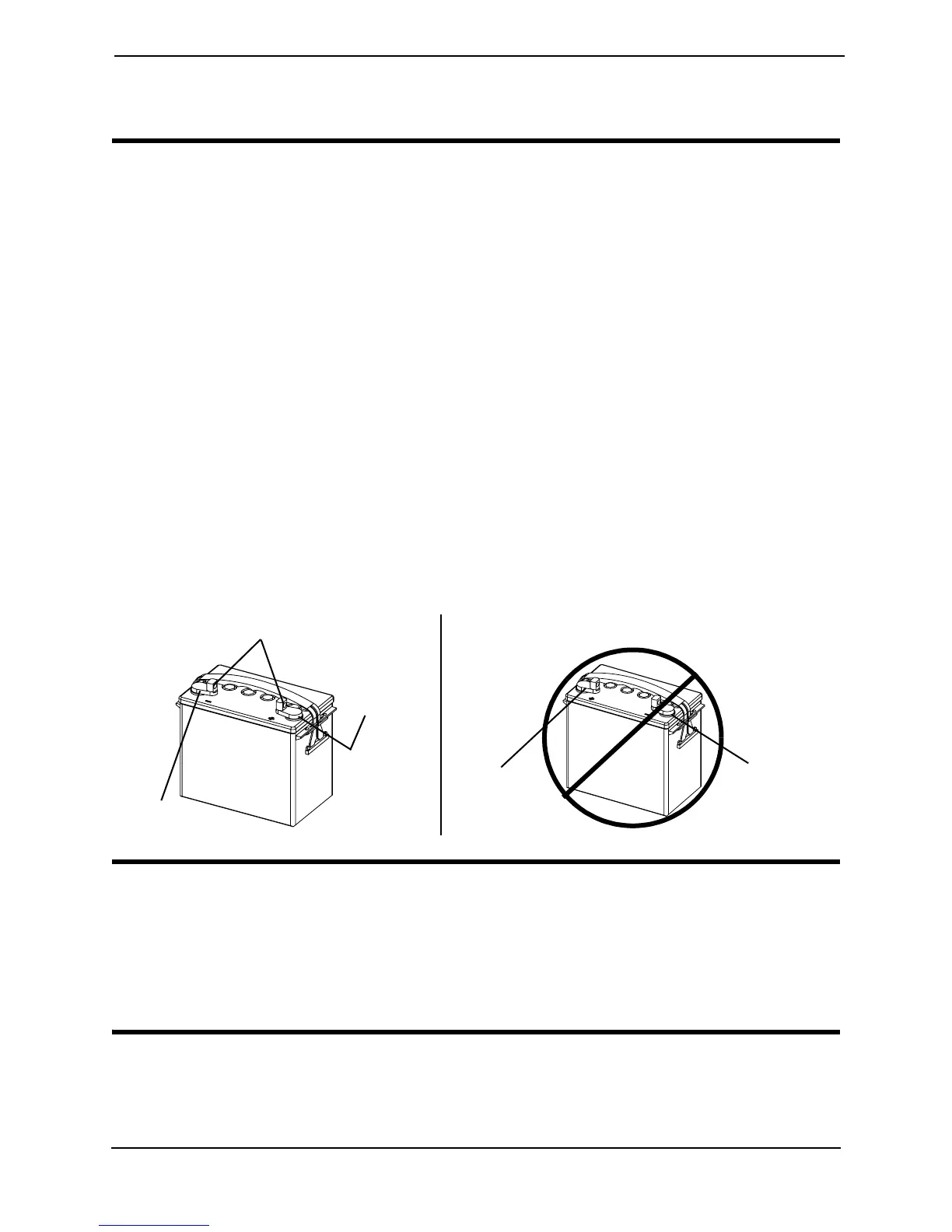

Battery terminal configuration shown below MUST be used. Batteries that have the
reversed terminal configuration MUST NOT be used - otherwise serious injury or
damage may occur.
 CAUTION
When connecting the battery cables to the battery(ies), the battery cable(s) MUST
be connected to the battery terminal(s)/post(s) as shown in FIGURE 11.3 on page
108 - otherwise damage to the battery may result.
For proper battery connection, batteries MUST use post style terminals with
mounting holes through the terminal.
NOTE:Ifthereisbatteryacidinthebottomofthebatterytrayoronthesidesofthebattery(ies),
applybakingsodatotheseareastoneutralizethebatteryacid.Beforereinstallingtheexistingor
newbattery(ies),cleanthebakingsodafromthebatterytrayorbattery(ies)beingsure
toavoid
contactwithskinandeyes.Determinesourceofcontamination.Neverinstall/reinstallabattery
withacrackedorotherwisedamagedcase.
NEGATIVE (-)
Battery Terminal
POSITIVE
(+) Battery
Terminal
POSITIVE
(+) Battery
Terminal
NEGATIVE
(-) Battery
Terminal
Do Not Use
Mounting Holes

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
