SECTION 14—TRANSPORT READY PACKAGE (TRRO)
Pronto
®
M91™and M94™ 128 Part No. 1125038
Vehicle-Anchored Belts
NOTE:Forthisprocedure,refertoFIGURE 14.3.
Thiswheelchairhasanoverallratingof“A ” withregardtoaccommodatingtheuseand
fitofvehicle‐anchoredbelts.Thisratingisscoredasfollows:
ThetestforLateralStabilityDisplacementforPoint(P)isshowninFIGURE 14.3.The
averagetestresultforpoint(P)is0.44‐inches(11.2mm).

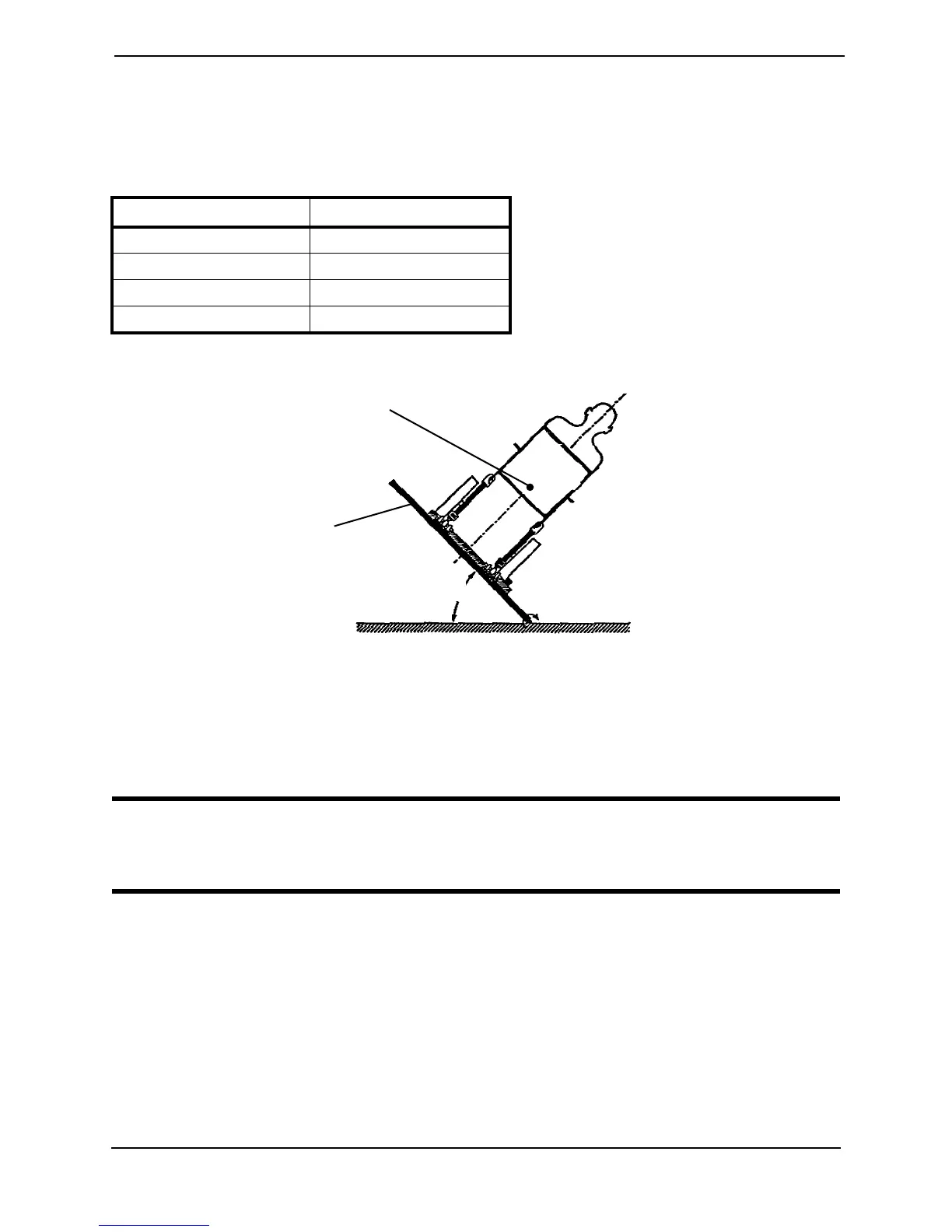

FIGURE 14.3 Vehicle-Anchored Belts
Seating System
 WARNING
This wheelchair has been tested for seating in a motor vehicle with the factory
installed seating system ONLY.
Ensurethatthefactoryinstalledseatingsystemissecuredtothewheelchairframebefore
operation.Refertotheseatingsystemowner’smanual.
RATING DESCRIPTION
A Excellent
B Good
C Fair
D Poor
Point (P)
Test Platform
45°
NOTE:Rearviewofthewheelchairandhumansurrogate
securedontestplatformandtiltedto45°.

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
