Invacare Pronto M91 Service Manual

SECTION 5—ARMS
Pronto
®
M91™and M94™ 68 Part No. 1125038
Replacing Van Seat Armrest Pad Assembly
NOTE:Forthisprocedure,refertoFIGURE 5.3.
1. Ifnecessary,removethejoystick.RefertoDisconnecting/ConnectingtheJoystickon
page 112.
2. Removethemountingscrew,washersandlocknutthatsecuretheexistingarmrestpad
assemblytothearmpost.
3. Positionthenewarmrestpadassemblyonthearmrestpostandsecurewiththe
mountingscrew,washers,andlocknut.RefertoFIGURE 5.3forcorrecthardware
orientation.
4. Ifnecessary,installthejoystick.RefertoDisconnecting/ConnectingtheJoystickon
page 112.
5. RepeatSTEPS2‐4fortheoppositearmrestplate,ifnecessary.

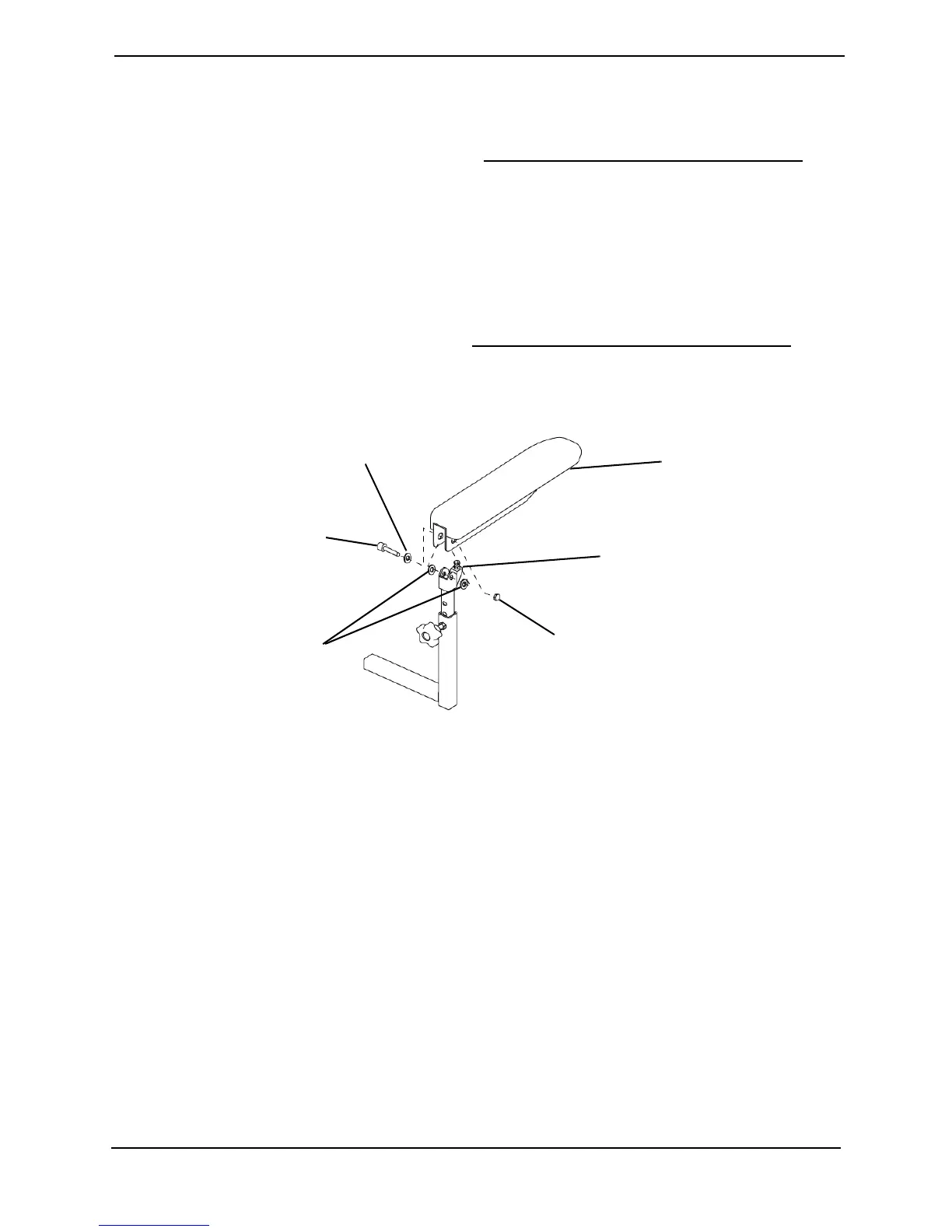

FIGURE 5.3 Replacing Van Seat Armrest Pad Assembly
Mounting Screw
Arm Post
Locknut
Armrest Pad
Assembly
Washers
Washer

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
