Invacare Pronto M91 Service Manual

SECTION 6—FRONT RIGGINGS
Part No. 1125038 75 Pronto
®
M91™and M94™

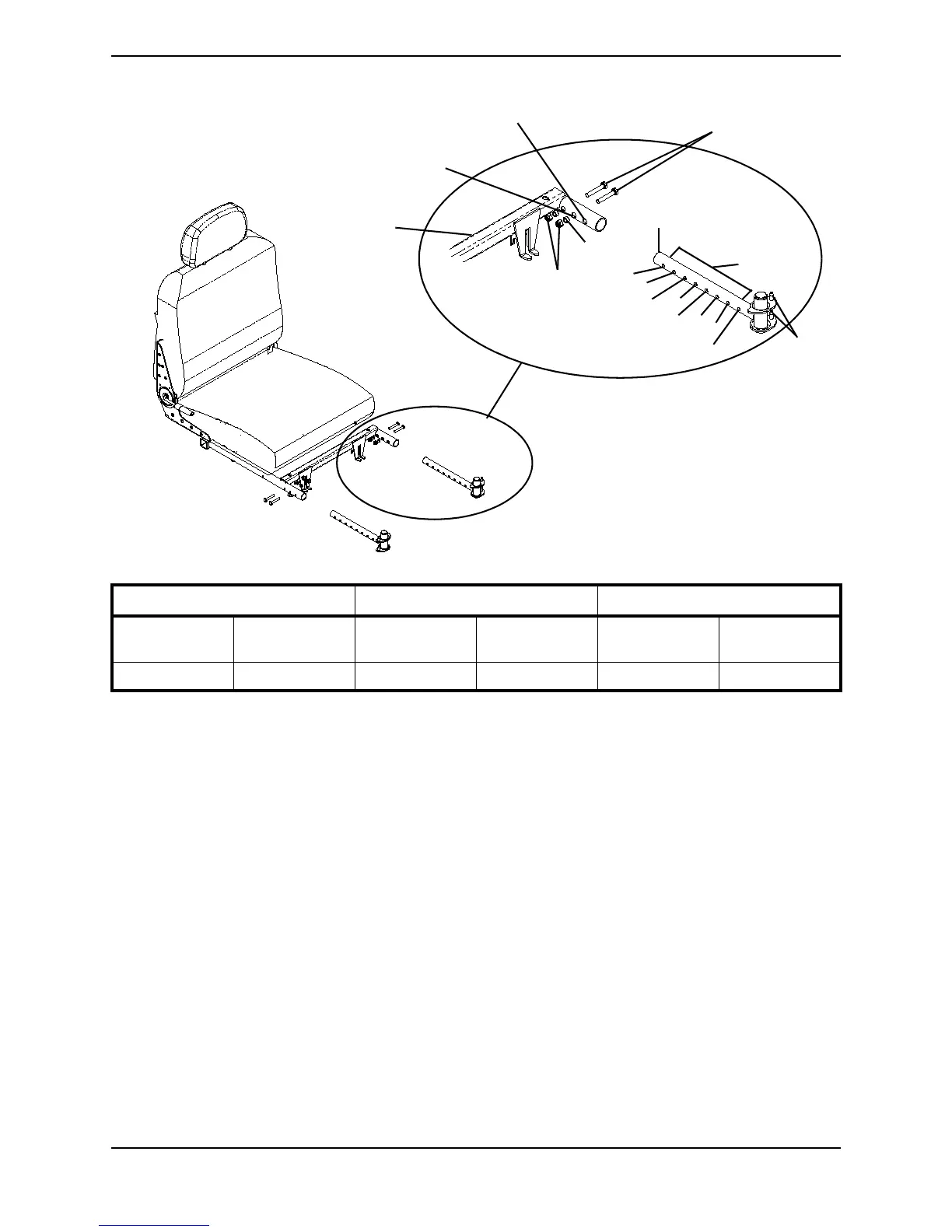

FRONT RIGGING SUPPORT MOUNTING POSITIONS
FIGURE 6.6 Adjusting/Replacing Telescoping Front Rigging Supports
ASBA
NOTE:Forthisprocedure,refertoFIGURE 6.7onpage76.
1. Removethetwomountingscrews,spacersandlocknutsthatsecurethetelescoping
frontriggingsupporttotheseatframe.
2. Performoneofthefollowing:
• Slideexistingtelescopingfrontriggingsupporttooneofthreedepthpositions.
•Removeexistingtelescopingfrontrigging.
3. Securetelescoping
frontriggingatdesireddepthwithexistingtwomountingscrews,
spacers,andlocknuts.Securelytighten.
NOTE:Thetwotelescopingfrontriggingsupportscanbepositionedatdifferentdepthsdepending
ontheneedoftheuser.
STANDARD POSITION 1-INCH OUT 2-INCHES OUT
18 & 20-Inches
Wide
22 & 24-Inches
Wide
18 & 20-Inches
Wide
22 & 24-Inches
Wide
18 & 20-Inches
Wide
22 & 24-Inches
Wide
Holes 2 and 3 Holes 4 and 5 Holes 3 and 4 Holes 5 and 6 Holes 4 and 5 Holes 6 and 7
Hinge
Pins
Spacer
Telescoping Front
Rigging Support
Mounting
Holes
Locknuts
Socket Bolts
Seat
Frame
Not Used
Middle Mounting
Holes
2
Not Used
4
3
5
7
8
6

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
