Invacare Pronto M91 Service Manual

SECTION 5—ARMS
Pronto
®
M91™and M94™ 70 Part No. 1125038
Adjusting the Flip Back Armrest
NOTE:Forthisprocedure,refertoFIGURE 5.5.
1. Unlocktopofflipbackarmrestbypullingheightadjustmentleverintotheup
(horizontal)position.
2. Adjusttopoftheflipbackarmresttothedesiredheight.
3. Locktopofflipbackarmrestbypushingheightadjustmentleverintothedown
(vertical)position.
4. Liftuponflipbackarmresttomakesurethearmrestislockedinplace.
5. RepeatSTEPS1‐4foroppositeflipbackarmrest,ifnecessary.

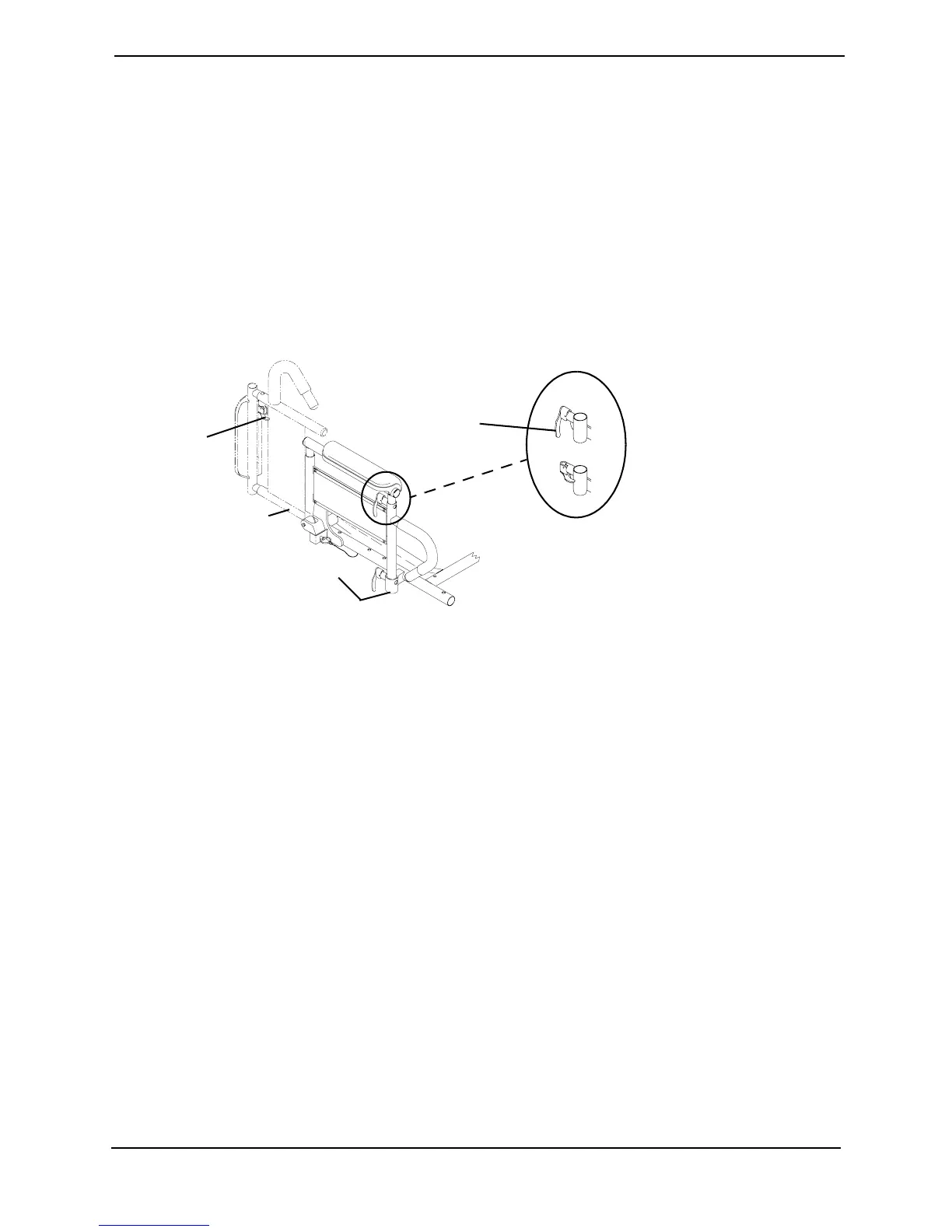

FIGURE 5.5 Adjusting the Flip Back Armrest
Locked
(Down - Vertical)
Unlocked
(Up - Horizontal)
Height
Adjustment
Lever
Flip Back Armrest
Front Arm Socket
Height
Adjustment
Lever
NOTE:ASBAarmrestshown.
ADJUSTABLEASBAarmrestworksthe
sameway.

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
