SECTION 7—FOOTBOARD ASSEMBLY
Pronto
®
M91™and M94™ 80 Part No. 1125038
Depth
NOTE:Forthisprocedure,refertoFIGURE 7.3.
1. Removethequickreleasepinthatsecuresthefootboardassemblytothewheelchair
frame.
 WARNING
Make sure the detent balls are engaged with the outer edge of the tube - otherwise,
injury and/or damage may result.
2. Adjustfootboardtooneofthreemountingpositions.
3. Installthequickreleasepin.Makesurethedetentballsareengagedwiththeouter
edgeofthetube(Detail“A” ofFIGURE 7.3).

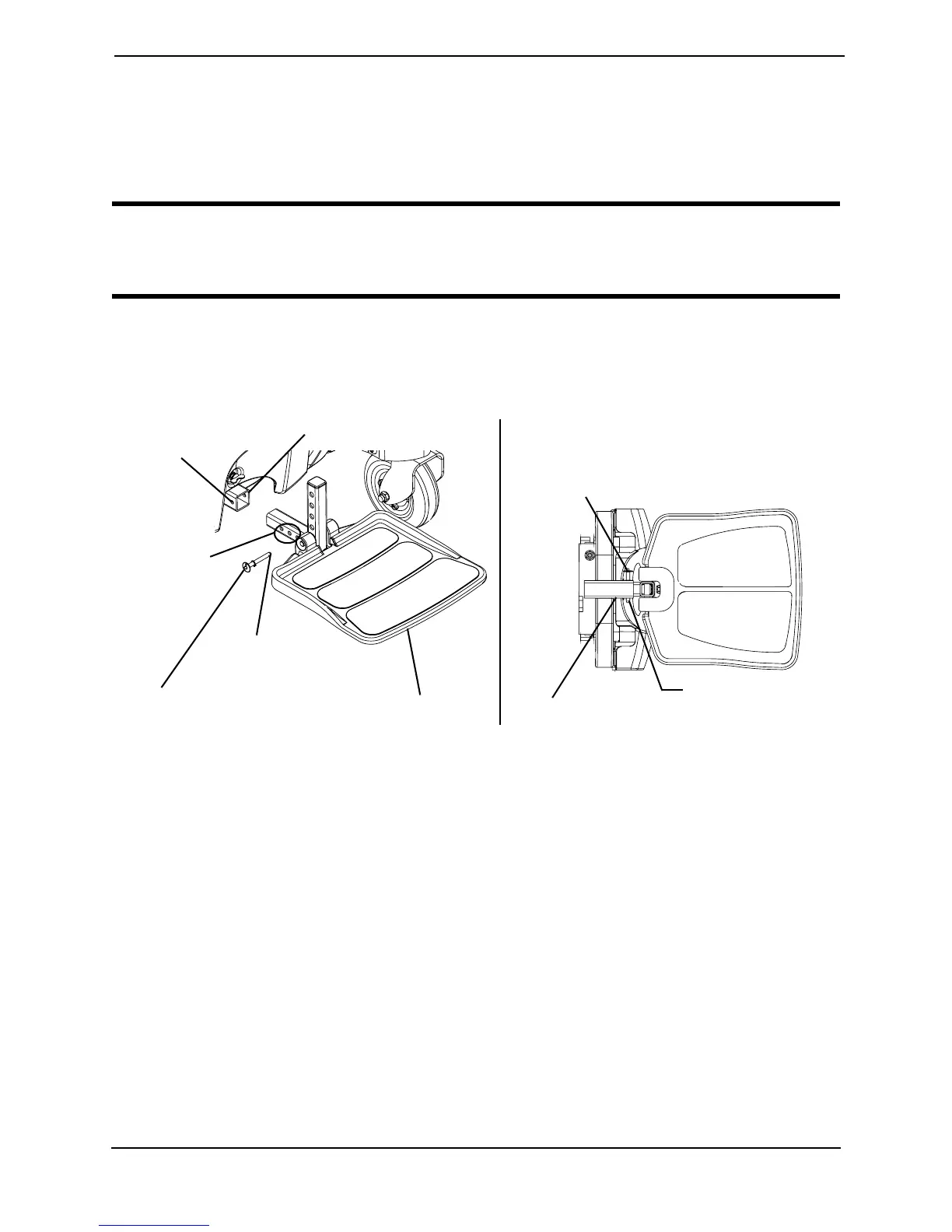

FIGURE 7.3 Adjusting the Footboard Assembly - Depth
DETAIL “A” - Bottom View of
Footboard
Quick Release Pin
Outer Edge of Tube
Detent Balls
Quick Release Pin
Three
Depth
Adjustment
Holes
Wheelchair Frame
Detent Ball
Footboard Assembly
Mounting
Hole

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
