SECTION 4—SEAT
Pronto
®
M91™and M94™ 60 Part No. 1125038
Replacing the Seat Positioning Strap
NOTE:Forthisprocedure,refertoFIGURE 4.19.
1. Removetheseatcushionfromtheseatpan.
2. Removetheflipbackarmrests.RefertoRemoving/InstallingFlipBackArmreston
page 69.
3. Removemountingscrew,washer,andlocknutthatsecuretheseatpositioningstrap
totheseatframe.
4. Positionanewseatpositioningstrapontheseatframe.
5. Reinstallthemountingscrew,washer,andlocknutthatsecuretheseatpositioning
straptotheseatframe.

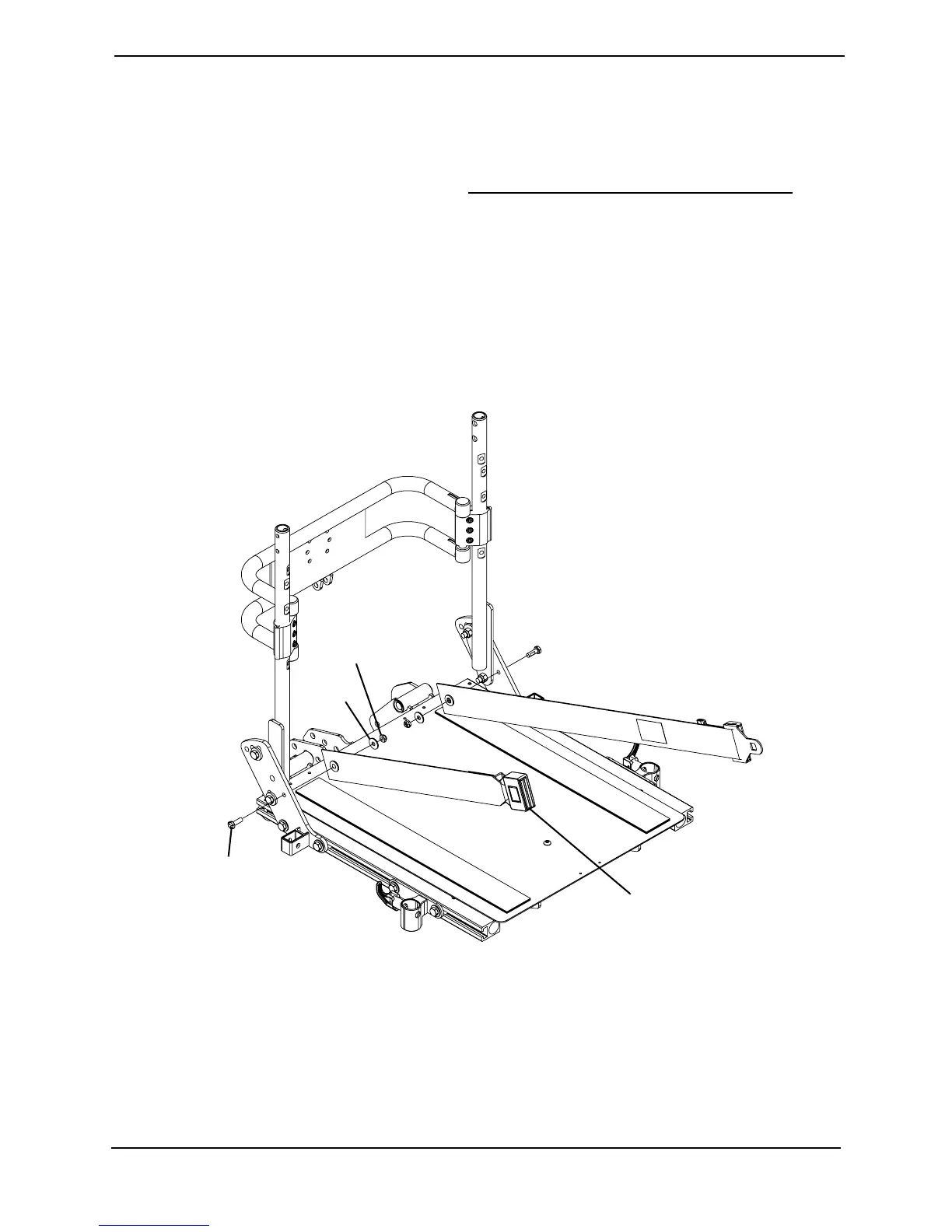

FIGURE 4.19 Replacing the Seat Positioning Strap
Mounting
Screw
Seat Positioning Strap
Washer
Lock
Nut

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
