Invacare Pronto M91 Service Manual

SECTION 6—FRONT RIGGINGS
Pronto
®
M91™and M94™ 76 Part No. 1125038

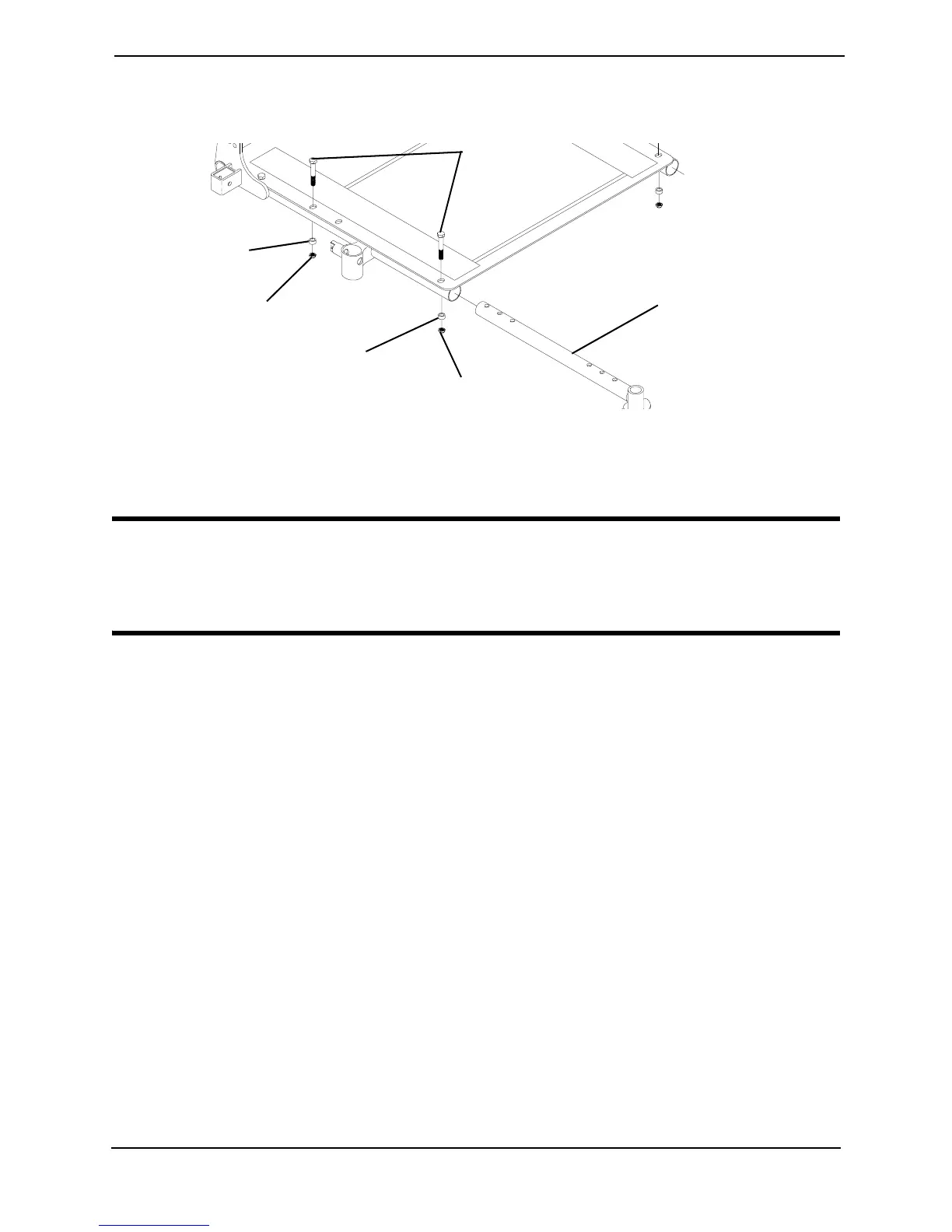

FIGURE 6.7 Adjusting/Replacing Telescoping Front Rigging Supports
Adjustable ASBA
 WARNING
If the telescoping tubes need to be extended greater than two inches, then the seat
MUST be repositioned rearward to ensure stability - otherwise personal injury and/
or damage to the wheelchair and surrounding property may result.
NOTE:Forthisprocedure,refertoFIGURE 6.8onpage77.
1. Removethetwocapscrews,spacersandthreadedblockssecuringthetelescoping
fronttubetothesiderail.
2. Performoneofthefollowing:
• Slideexistingtelescopingfrontriggingsupporttooneofsixdepthpositions.
•Removeexistingtelescopingfrontrigging.
3. Securethe
telescopingfronttubetothesiderailatthedesireddepthwiththeexisting
twocapscrews,spacersandthreadedblocks.
4. RepeatSTEPS1to3ontheoppositesideifdesired.
Spacer
Telescoping Front
Rigging Support
Locknut
Mounting
Screws
Locknut
Spacer

Invacare Pronto M91 Specifications

Power and Performance

maximum speed	6.5 mph / 4.5 mph
incline capability	9˚
weight capacity	300 lb. (400 lb. option)

Wheel and Caster Sizes

front casters	6" x 2"
drive wheels	14" x 3"
rear casters	6" x 2"

Weight and Dimensions

length with footboard up	39"
length with footboard down	40" - 42"
width excluding joystick	25.9"
height	37" - 48"
seat width	18" - 22"
seat depth	16" - 20"
overall height	37" - 40"
back height	18"
seat-to-floor height	21" - 23"
weight with batteries	273 lb.
weight without batteries	199 lb.
wheelchair mass	275 lb.
turning radius front	19.5"
turning radius rear	21.5"
ground clearance	3.25"
