SECTION 14—TRANSPORT READY PACKAGE (TRRO)
Part No. 1125038 125 Pronto
®
M91™and M94™
Securing the Wheelchair to the Vehicle
Positioning the Wheelchair in the Vehicle
 WARNING
This wheelchair must be in a forward facing position during travel in a motor
vehicle.

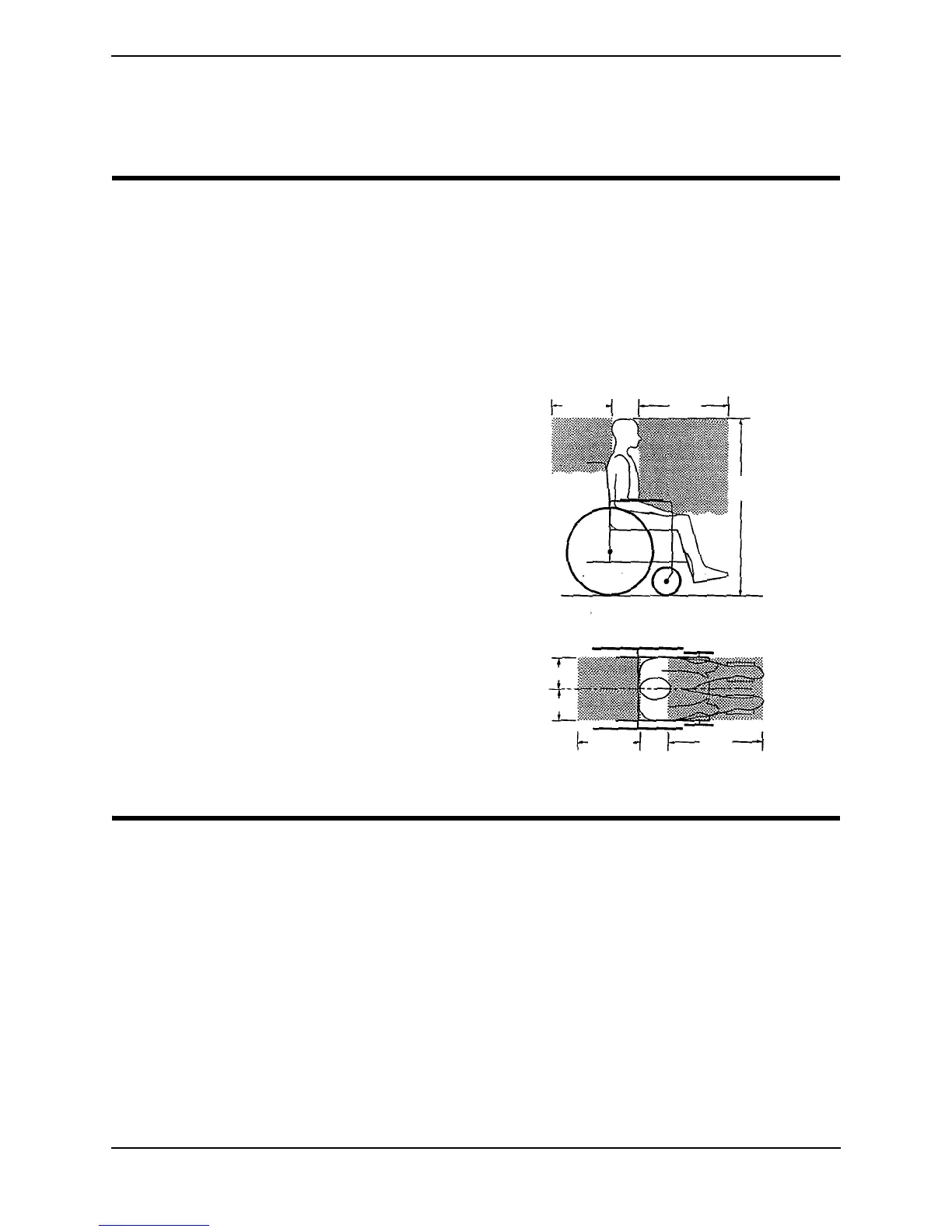

The recommended clear zones for wheelchair seated occupants restrained by
BOTH pelvic and upper-torso belt(s) and ONLY by a pelvic belt are shown in the
diagrams and described below.
Frontal Clear Zones (FCZ) need to be
LARGER when upper-torso belt(s) are
NOT used.
The rear clear zone of 16-inches is
measured from the rearmost point on
an occupant’s head.
The frontal clear zone is measured from
the frontmost point on an occupant’s
head and is 26-inches with pelvic and
upper-torso belt(s) and 37-inches with
ONLY a pelvic belt.
The frontal clear zone may not be
achievable for wheelchair-seated
drivers.
The estimated seated height (HHT)
from the ground or floor to the top of
the wheelchair-seated occupant’s head
ranges from approximately 47-inches
for a small adult female to about 61-
inches for a tall adult male.
16 in.
Frontal Clear
Zone
Side View
Top View
HHT
FCZ
Frontal Clear Zone
16 in.
8 in.
8 in.
