INVT IPE300 Series User Manual

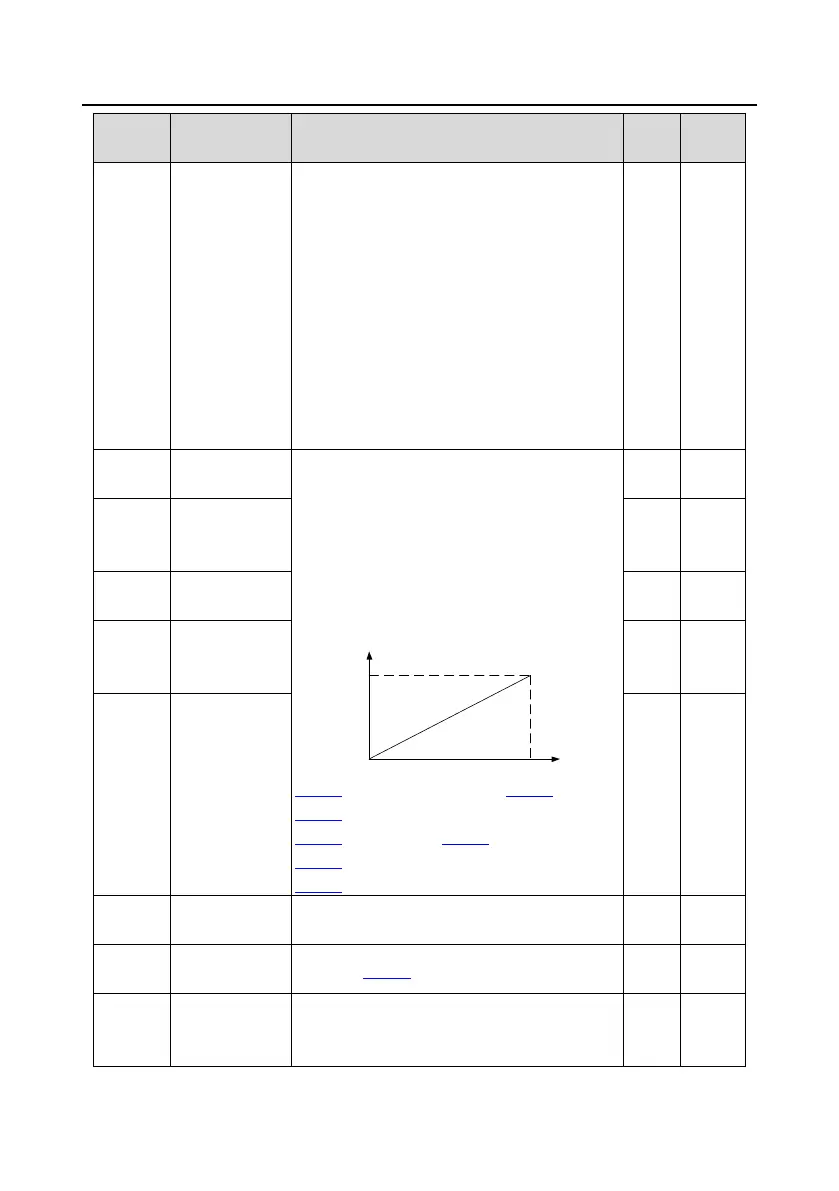

IPE300 series engineering VFD Function parameter list
-150-
Function
code
Name
Description
Default
Modify
26: Rotational speed (bipolar)
27: Value 2 set through EtherCAT/Profinet
communication
28: C_AO1 (Set P27.00 to 1)
29: C_AO2 (Set P27.00 to 1)
30: Rotational speed (10V corresponds to the
speed corresponding to twice the motor rated
frequency)
31: Output torque (Actual value, 10V
corresponds to twice the motor rated torque)
32: Source output at constant current
33–47: Reserved
P06.17
AO1 output lower
limit
Used to define the relationship between the
output value and analog output. When the output
value exceeds the allowed range, the output
uses the lower limit or upper limit.
When the analog output is current output, 1mA
equals 0.5V.
In different cases, the corresponding analog
output of 100% of the output value is different.
10V (20mA)
0.0% 100.0%
AO
P06.17 setting range: -100.0%–P06.19
P06.18 setting range: 0.00V–10.00V
P06.19 setting range: P06.17–100.0%
P06.20 setting range: 0.00V–10.00V
P06.21 setting range: 0.000s–10.000s
0.0%
○
P06.18
AO1 output
corresponding to
lower limit
0.00V
○
P06.19
AO1 output
upper limit
100.0%
○
P06.20
AO1 output
corresponding to
upper limit
10.00V
○
P06.21
AO1 output filter
time
0.000s
○
P06.22–P
06.26
Reserved
0–65535
0
●
P06.27
HDO output
lower limit
-100.0%– P06.29
0.00%
○
P06.28
HDO output
corresponding to
lower limit
0.00–50.00Hz
0.00kH
z
○
