ELECTRICAL

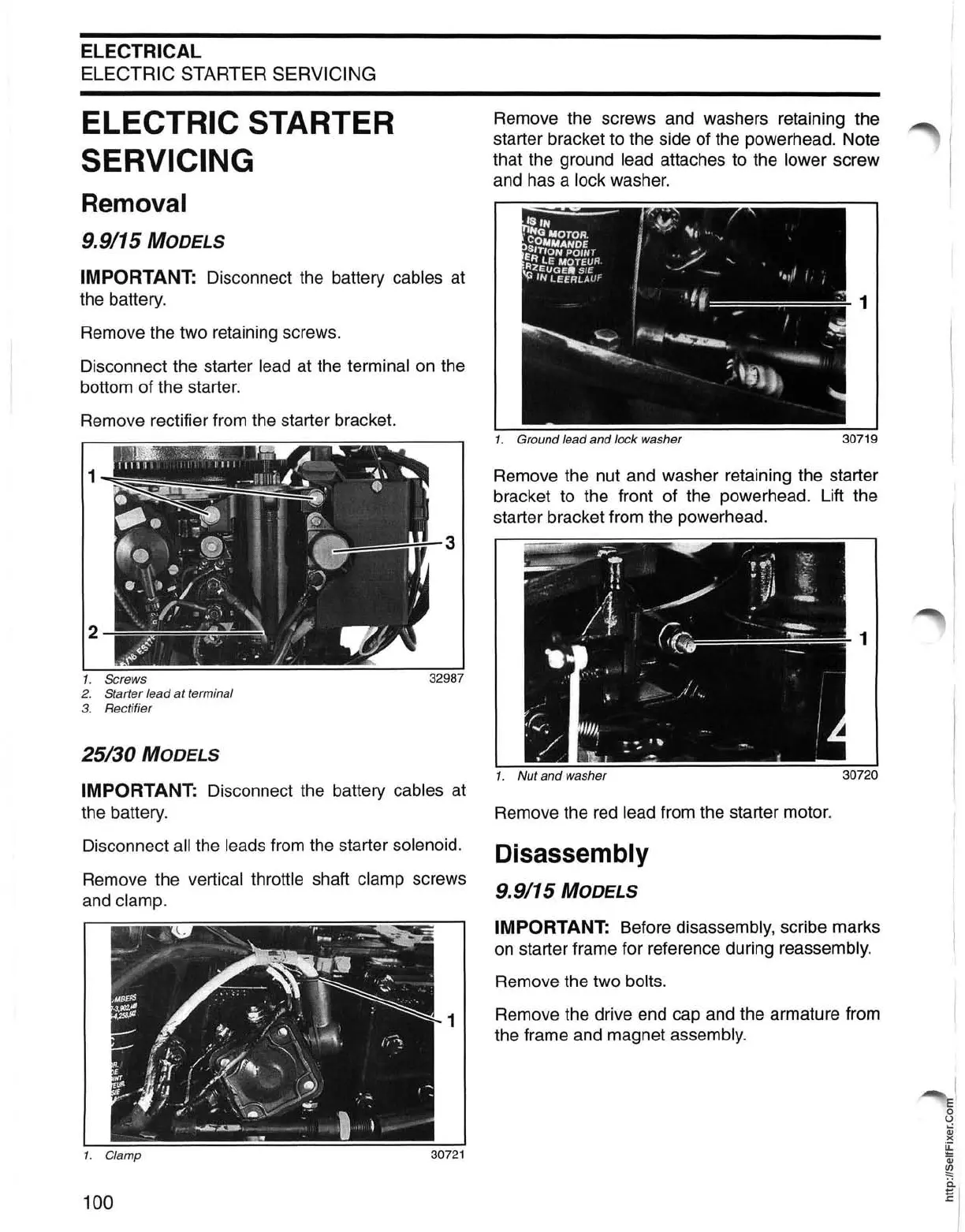

ELECTRIC STARTER SERVICING
ELECTRIC STARTER
SERVICING
Removal
9.9/15 MODELS
IMPORTANT: Disconnect the battery cables at
the battery.
Remove the two retaining screws.
Disconnect the starter
lead at the terminal on the
bottom of the starter.
Remove rectifier from the starter bracket.
1
3
2
1. Screws
2. Starter lead at terminal
3. Rectifier
25/30 MODELS
IMPORTANT: Disconnect the battery cables at
the battery.
Disconnect
all the leads from the starter solenoid.
Remove the vertical throttle shaft clamp screws
and
clamp.
Remove the screws and washers retaining the
starter bracket to the side of the powerhead. Note
that the ground
lead attaches to the lower screw
and has a
lock washer.
1
1. Ground lead and lock washer
Remove the nut and washer retaining the starter
bracket to the front of the powerhead. Lift the
starter bracket from the powerhead.
1. Nut and washer
Remove the red lead from the starter motor.
Disassembly
9.9/15 MODELS
1
IMPORTANT: Before disassembly, scribe marks
on starter frame for reference during reassembly.
Remove the two
bolts.
1 Remove the drive end cap and the armature from
the frame and magnet
assembly.
1. Clamp
100
