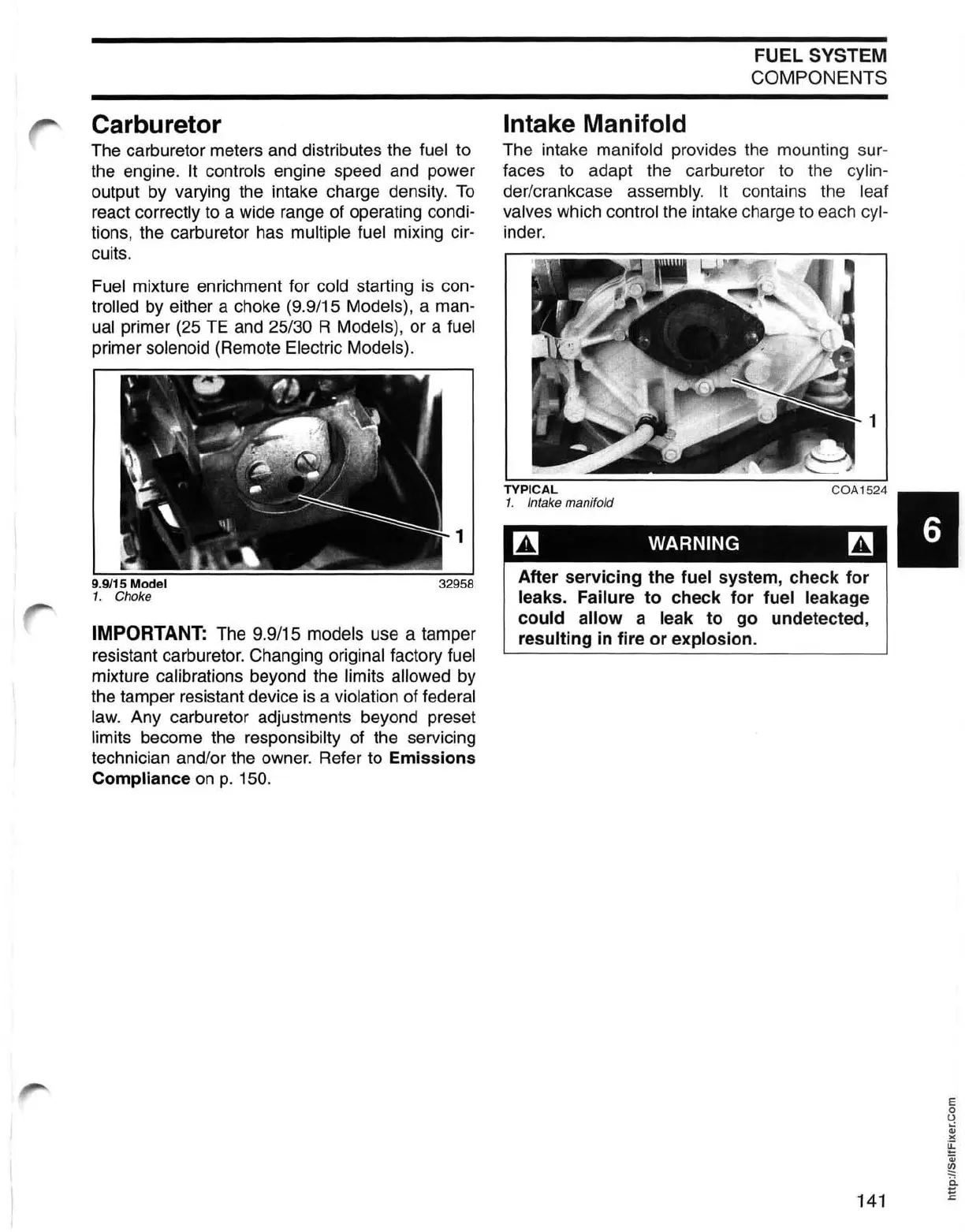

Carburetor
The carburetor meters and distributes the fuel to
the engine.
It controls engine speed and power
output by varying the intake charge density.
To
react correctly to a wide range of operating condi-
tions. the carburetor has
multiple fuel mixing cir-
cuits.
Fuel mixture enrichment for cold starting is con-
trolled by either a choke (9.9/15 Models). a man-
ual primer (25 TE and 25/30 R Models). or a fuel
primer solenoid (Remote Electric Models).
IMPORTANT: The 9.9/15 models use a tamper
resistant carburetor. Changing
original factory fuel
mixture calibrations beyond the limits allowed by
the tamper resistant device
is a violation of federal
law. Any carburetor adjustments beyond preset
limits become the responsibilty of the servicing
technician and/or the owner. Refer to
Emissions
Compliance on p. 150.
Intake Manifold
FUEL SYSTEM
COMPONENTS
The intake manifold provides the mounting sur-
faces to adapt the carburetor
to the cylin-
der/crankcase assembly. It contains the leaf
valves
which control the intake charge to each cy l-
inder.
1
TYPICAL
1. Intake manifold
CO A 1524 .
m WARNING m
After servicing the fuel system, check for
leaks. Failure to check for fuel leakage
could allow a leak to go undetected,
resulting in fire or explosion.
141
