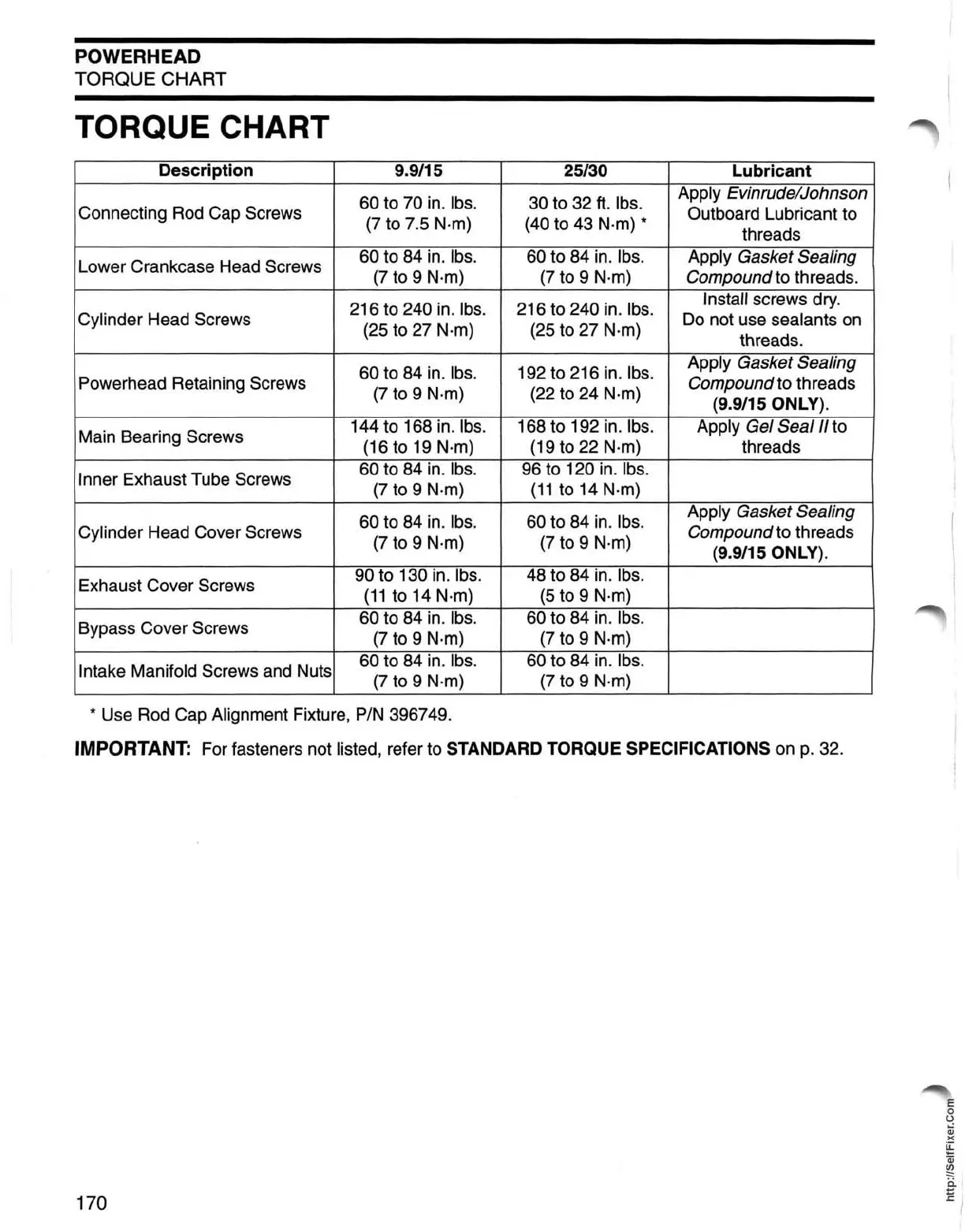

POWERHEAD
TORQUE
CHART
TORQUE CHART
Description
Connecting Rod Cap Screws
Lower Crankcase Head Screws
Cylinder
Head Screws
Powerhead Retaining Screws
Main Bearing Screws
Inner
Exhaust Tube Screws
Cylinder
Head Cover Screws
Exhaust Cover Screws
Bypass Cover Screws
Intake Manifold Screws
and Nuts
9.9/15
60 to 70 in. Ibs.
(7 to 7.5 N·m)
60
to 84
in
. Ibs.
(7
to 9 N.m)
216 to
240 in.
Ibs.
(25 to 27 N·m)
60
to 84 in.
Ibs.
(7 to 9 N·m)
144 to 168 in.
Ibs.
(16 to 19 N·m)
60
to 84
in
. Ibs.
(7 to 9 N·m)
60
to 84 in.
Ibs.
(7 to 9 N·
m)
90 to 130 in. Ibs.
(11
to 14 N·
m)
60 to 84 in.
Ibs.
(7
to 9 N·m)
60
to 84 in. Ibs.
(7
to 9 N·m)
* Use Rod Cap Alignment Fixture, PIN 396749.
25130
Lubricant
30 to 32
ft.
Ibs.
Apply
Evinrude/Johnson
(40 to 43 N·m) *
Outboard Lubricant to
threads
60 to 84 in. Ibs.
Apply
Gasket Sealing
(7
to 9 N·m) Compound to threads.
216 to
240
in
. Ibs.
Install
screws dry.
(25 to 27
N·
m)
Do not use sealants on
threads.
192 to 216 in.
Ibs.
Apply
Gasket Sealing
(22 to 24 N·
m)
Compound to threads
(9.9/15 ONLY).
168 to 192 in. Ibs. Apply Gel
Seal
II to
(19 to 22
N·m) threads
96 to
120
in
. Ibs.
(11
to 14 N·m)
60
to 84 in. Ibs.
Apply
Gasket Sealing
(7 to 9 N·m)
Compound to threads
(9.9/15 ONLY).
48 to 84
in
. Ibs.
(5
to 9 N·m)
60
to 84
in
. Ibs.
(7 to 9 N·
m)
60 to 84 in. Ibs.
(7
to 9 N·m)
IMPORTANT: For fasteners not listed, refer to STANDARD TORQUE SPECIFICATIONS on
p.
32.
