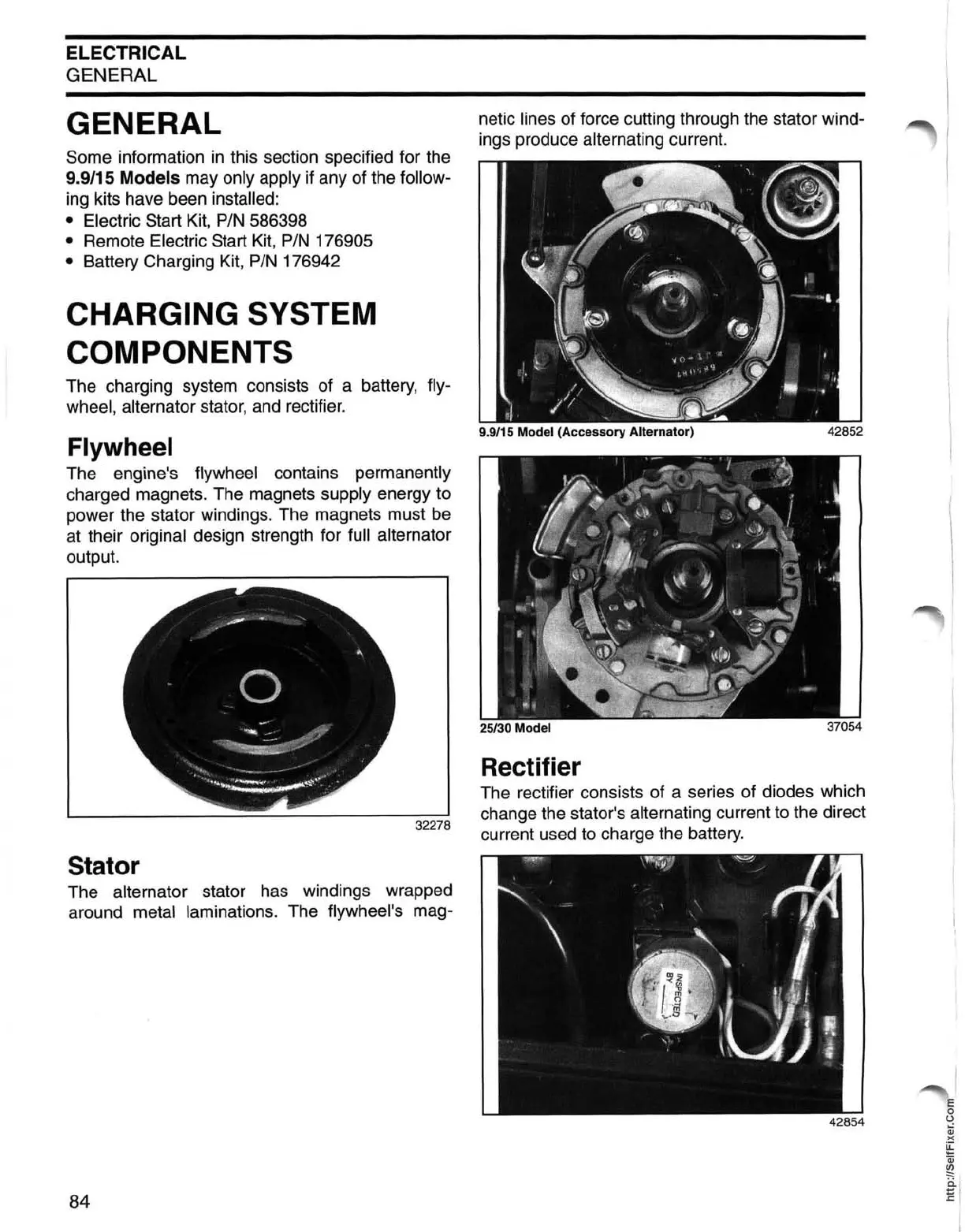

ELECTRICAL
GENERAL
GENERAL
Some information
in
this section specified for the
9.9/15 Models may only apply if any of the follow-
ing kits have been installed:
• Electric Start Kit,
PIN
586398
• Remote Electric Start
Kit,
PIN
176905
•
Battery Charging Kit,
PIN
176942
CHARGING SYSTEM
COMPONENTS
The charging system consists of a battery, fly-
wheel,
alternator stator, and rectifier.
Flywheel
The engine's flywheel contains permanently
charged magnets. The magnets
supply energy to
power the stator windings. The magnets must be
at their
original design strength for full alternator
output.
32278
Stator
The alternator stator has windings wrapped
around
metal laminations. The flywheel's mag-
84
netic lines of force cutting through the stator wind-
ings produce alternating current.
9.9/15 Model (Accessory Alternator)
42852
25/30 Model
Rectifier
The rectifier consists of a series of diodes which
change the stator's alternating current to the direct
current used to charge the battery.
42854
