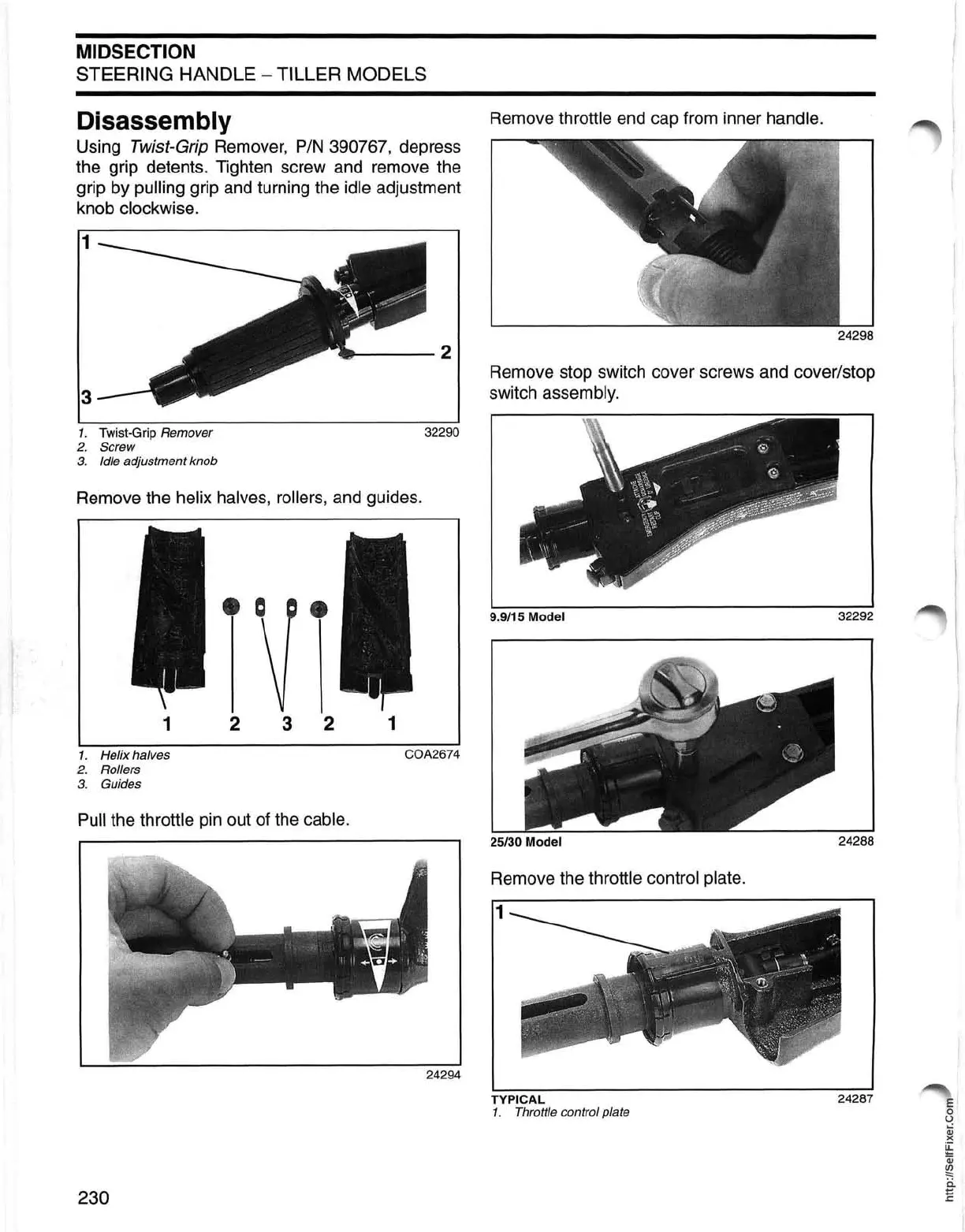

MIDSECTION
STEERING HANDLE - TILLER MODELS
Disassembly Remove throttle end cap from inner handle.
Using Twist-Grip Remover, PIN 390767, depress
the grip detents. Tighten screw and remove the
grip by
pulling grip and turning the idle adjustment
knob clockwise.
1
__ ---2
3
1. Twist-Grip Remover
32290
2. Screw
3. Idle adjustment knob
Remove the helix halves, rollers, and guides .
•
1
2
3
2
1
1. Helix halves
COA2674
2. Rollers
3. Guides
Pull the throttle pin out of the cable.
230
24298
Remove stop switch cover screws and cover/stop
switch
assembly.
9.9/15 Model
32292
25/30 Model
Remove the throttle control plate.
TYPICAL
24287
1. Throttle control plate
