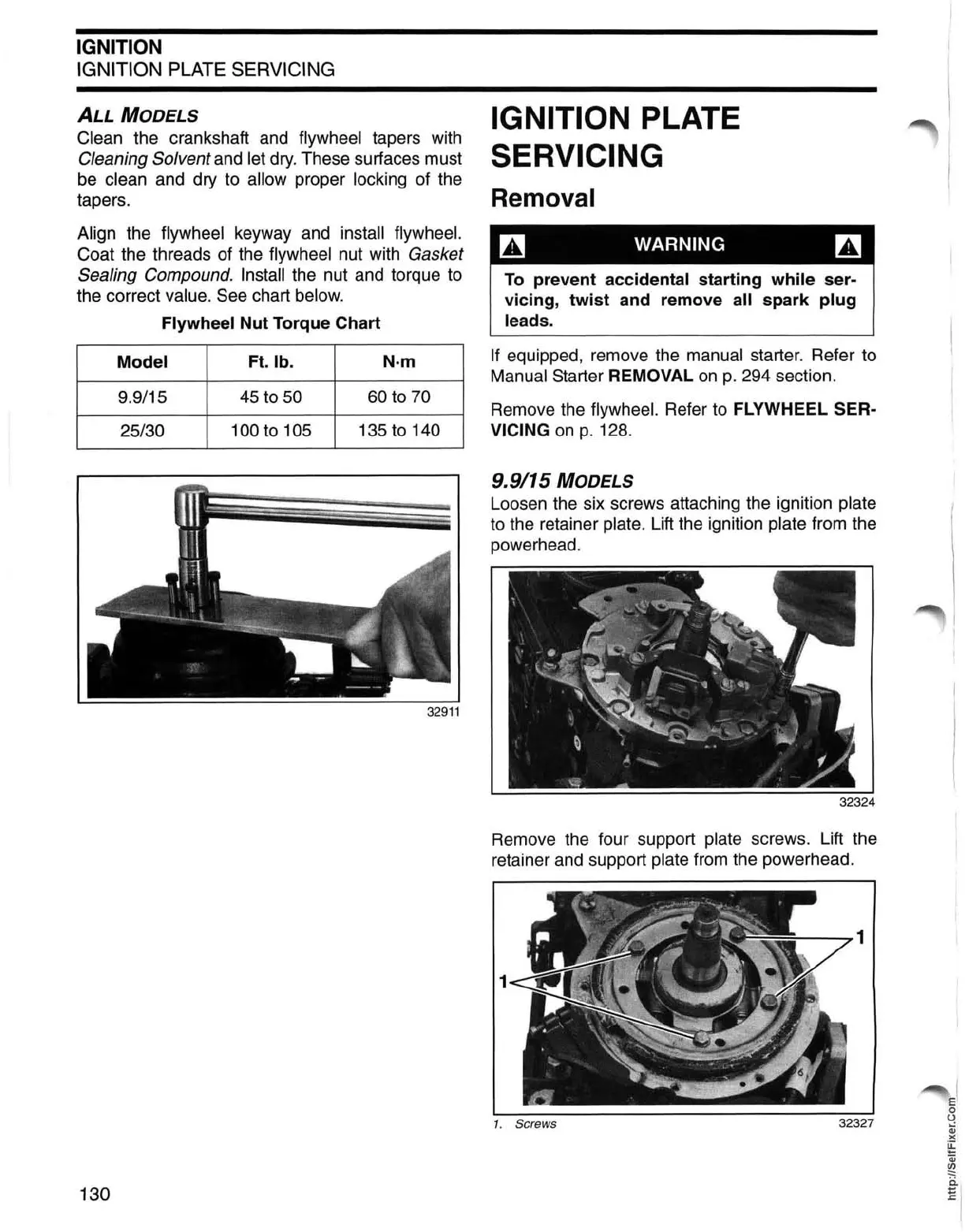

IGNITION
IGNITION
PLATE
SERVICING
ALL
MODELS
Clean the crankshaft
and
flywheel tapers with
Cleaning Solvent
and
let dry. These surfaces must
be
clean and dry to allow proper locking of the
tapers.
Align the flywheel keyway
and
install flywheel.
Coat the threads of the flywheel nut with Gasket
Sealing Compound. Install the nut and torque
to
the correct value. See chart below.
Flywheel Nut Torque Chart
Model
Ft.lb.
N·m
9.9/15
45
to
50
60
to
70
25/30
100
to
105
135 to 140
130
IGNITION PLATE
SERVICING
Removal
m WARNING m
To
prevent accidental starting while ser-
vicing, twist and remove
all spark plug
leads.
If
equipped, remove the manual starter. Refer to
Manual Starter REMOVAL
on
p.
294 section.
Remove the flywheel. Refer
to
FLYWHEEL SER-
VICING
on
p.
128.
9.9/15 MODELS
Loosen the six screws attaching the ignition plate
to
the retainer plate. Lift the ignition plate from the
powerhead.
Remove the four support
plate screws. Lift the
retainer and support plate
from
the powerhead.
=--"'71
1
1. Screws
32327
To Next Page
