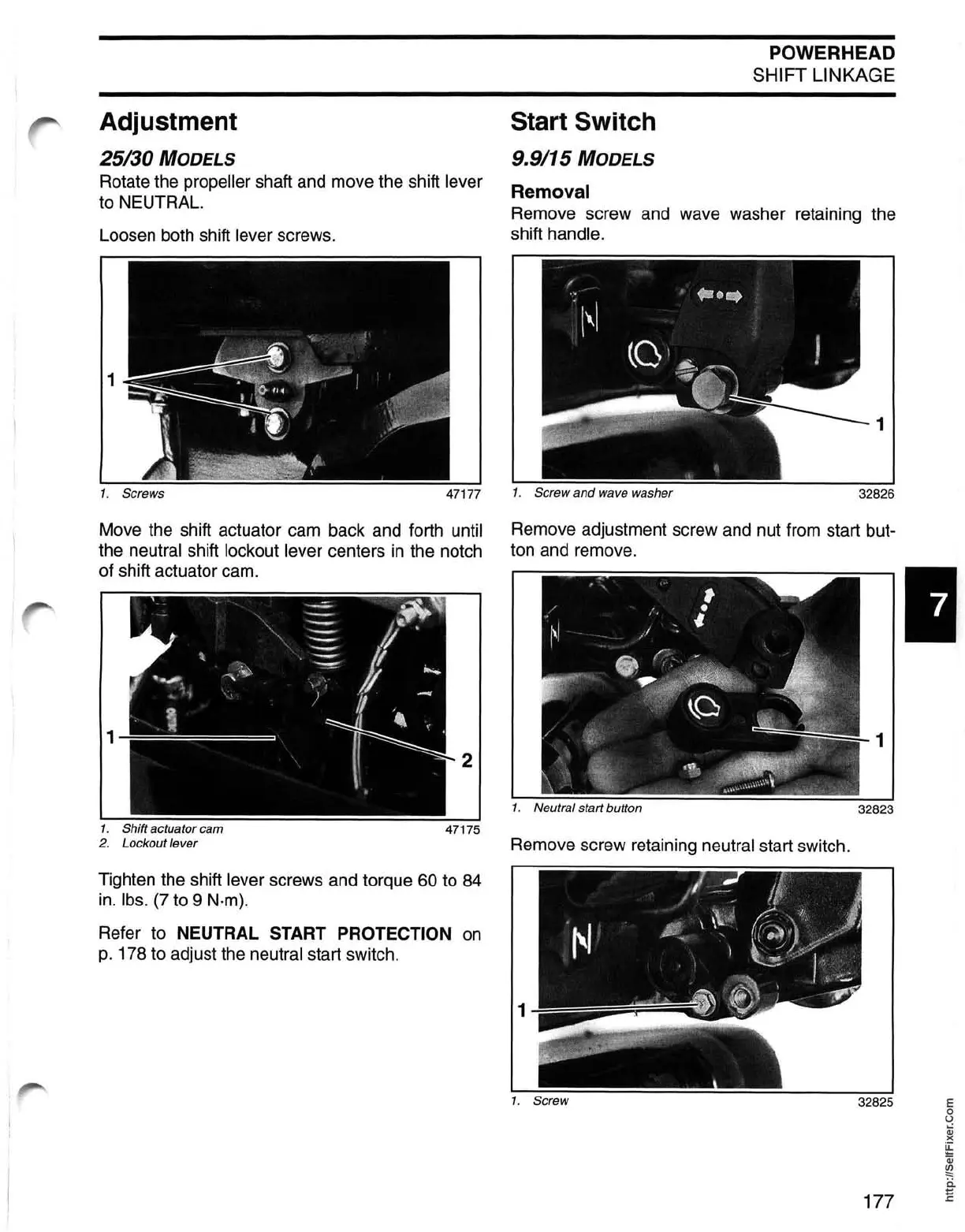

Adjustment
25/30 MODELS
Rotate the propeller shaft and move the shift lever
to NEUTRAL.
Loosen both shift
lever screws.
1. Screws
47177
Move the shift actuator cam back and forth until
the neutral shift lockout lever centers
in
the notch
of shift actuator cam.
2
1. Shift actuator
cam
47175
2. Lockout lever
Tighten the shift lever screws and torque 60 to 84
in.
Ibs.
(7 to 9 N·m).
Refer to NEUTRAL START PROTECTION
on
p.
178 to adjust the neutral start switch.
Start Switch
9.9/15 MODELS
Removal
POWERHEAD
SHIFT LINKAGE
Remove screw and wave washer retaining the
shift
handle.
1
1. Screw and
wave
washer
32826
Remove adjustment screw and nut from start but-
ton and remove.
1
Remove screw retaining neutral start switch.
1
I
32825 E
o
u
Qj
)(
~
Qj
~
ii
177
