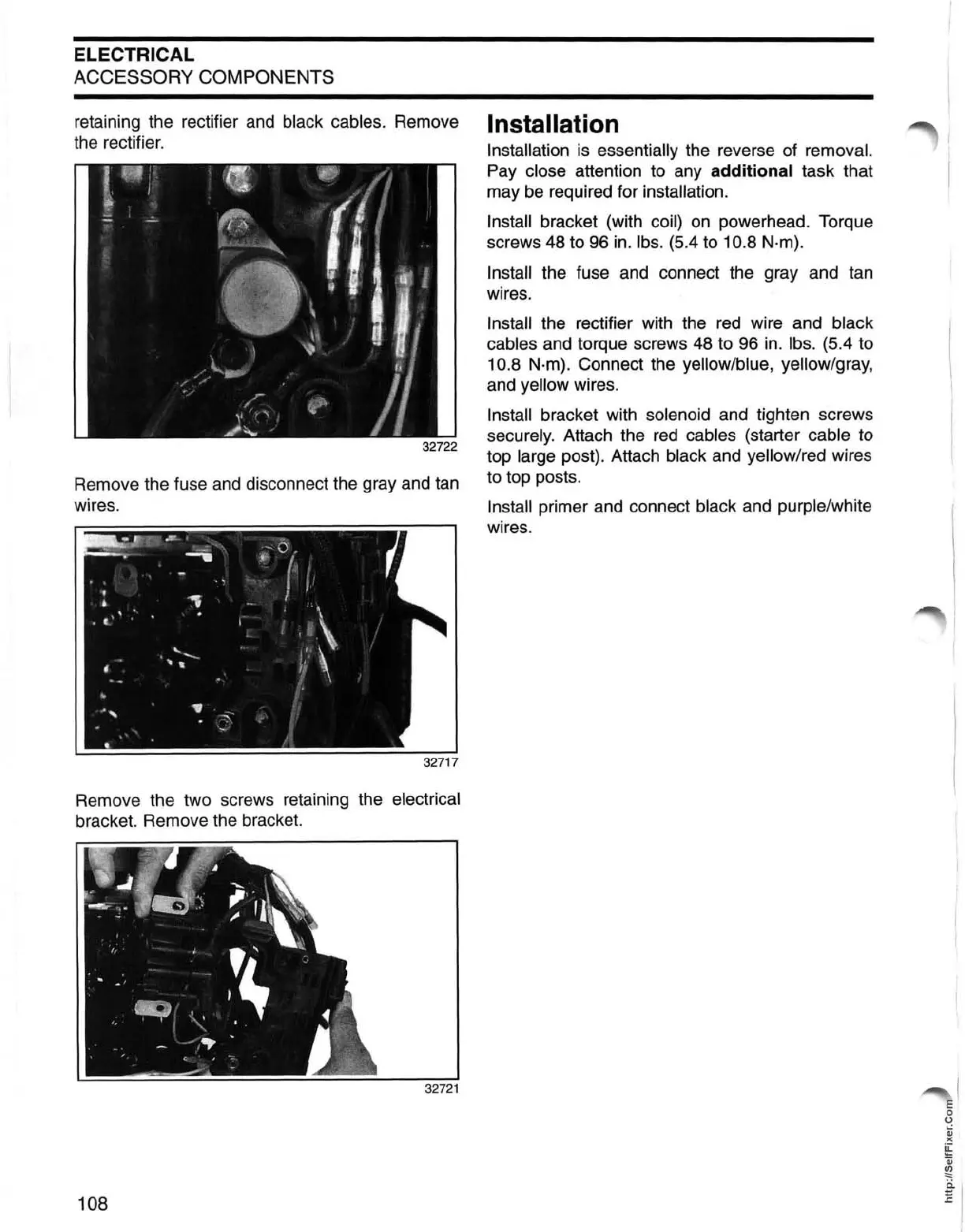

ELECTRICAL
ACCESSORY COMPONENTS
retaining the rectifier
and
black cables. Remove
the rectifier.
32722
Remove the fuse
and
disconnect the gray and
tan
wires.
Remove the two screws retaining the
electrical
bracket. Remove the bracket.
32721
108
Installation
Installation
is
essentially the reverse of removal.
Pay
close attention
to
any additional task that
may
be
required for installation.
Install
bracket (with coil)
on
powerhead. Torque
screws 48 to
96
in.
Ibs
. (5.4 to 10.8 N·m).
Install
the fuse and connect the gray and tan
wires.
Install the rectifier with the
red
wire and black
cables
and torque screws 48 to 96
in
. Ibs. (5.4 to
10.8 N·m). Connect the yellow/blue, yellow/gray,
and yellow wires.
Install bracket with solenoid and tighten screws
securely. Attach the
red
cables (starter cable
to
top large post). Attach black and yellow/red wires
to
top posts.
Install primer and connect black and purple/white
wires.
