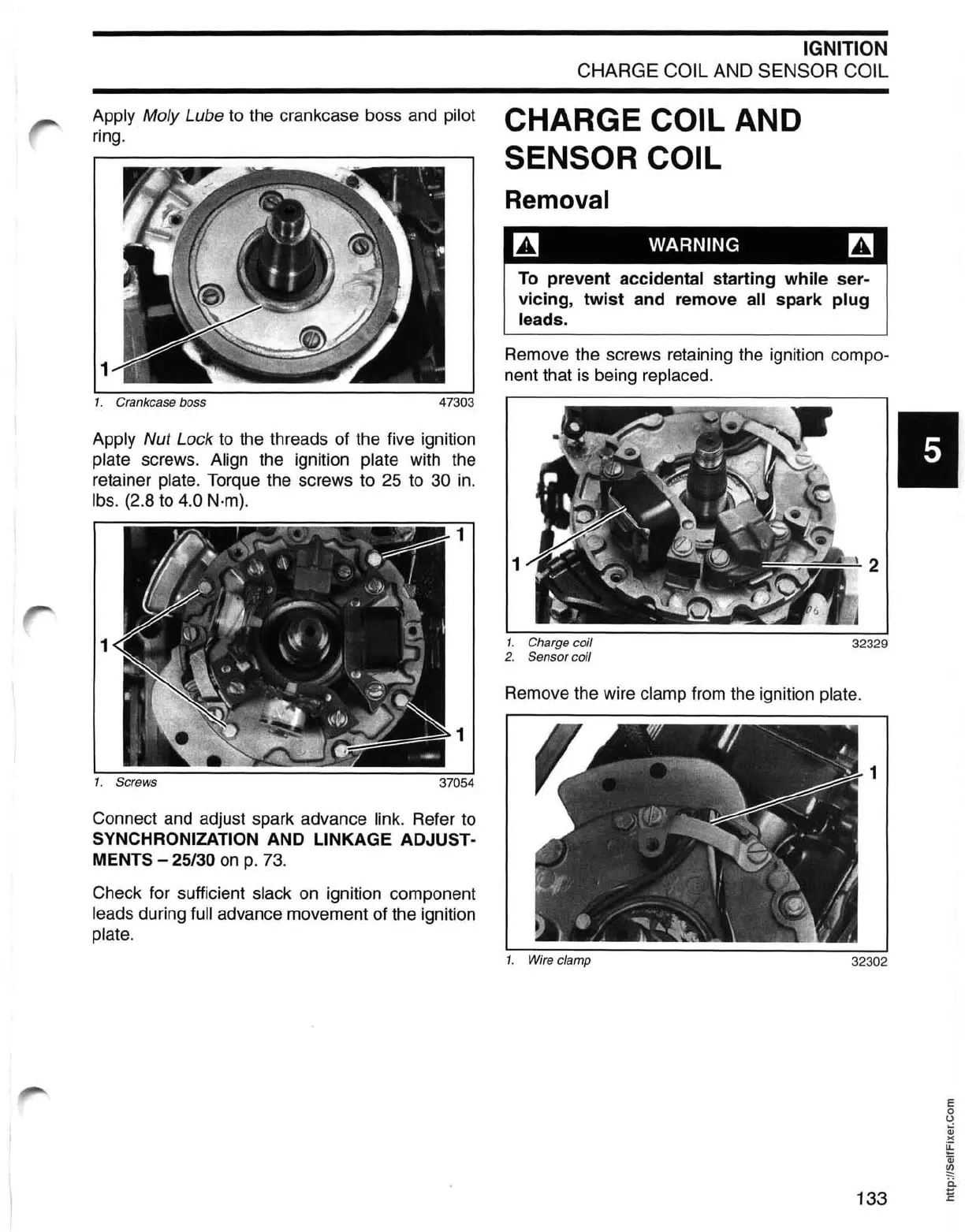

Johnson J30MLSRC User Manual

Apply Moly Lube to the crankcase boss and pilot
ring.
1
1. Crankcase boss
47303
Apply Nut Lock to the threads of the five ignition
plate screws. Align the ignition plate with the
retainer
plate. Torque the screws to 25 to 30 in .
Ibs. (2.8 to 4.0 N·m).
Connect and adjust spark advance link. Refer to
SYNCHRONIZATION AND LINKAGE ADJUST-
MENTS
- 25/30 on p. 73.
Check for sufficient
slack on ignition component
leads during full advance movement of the ignition
plate.
IGNITION
CHARGE COIL AND SENSOR COIL
CHARGE COIL AND
SENSOR COIL
Removal
~ WARNING ~
To prevent accidental starting while ser-
vicing,
twist and remove all spark plug
leads.
Remove the screws retaining the ignition compo-
nent that is being
replaced.
1
2
1. Charge coil
32329
2. Sensor coil
Remove the wire clamp from the ignition plate.
1
1. Wire clamp
32302
I
E
o
o
:;j
)(
~
Qj
~
i::i.
133 ~
