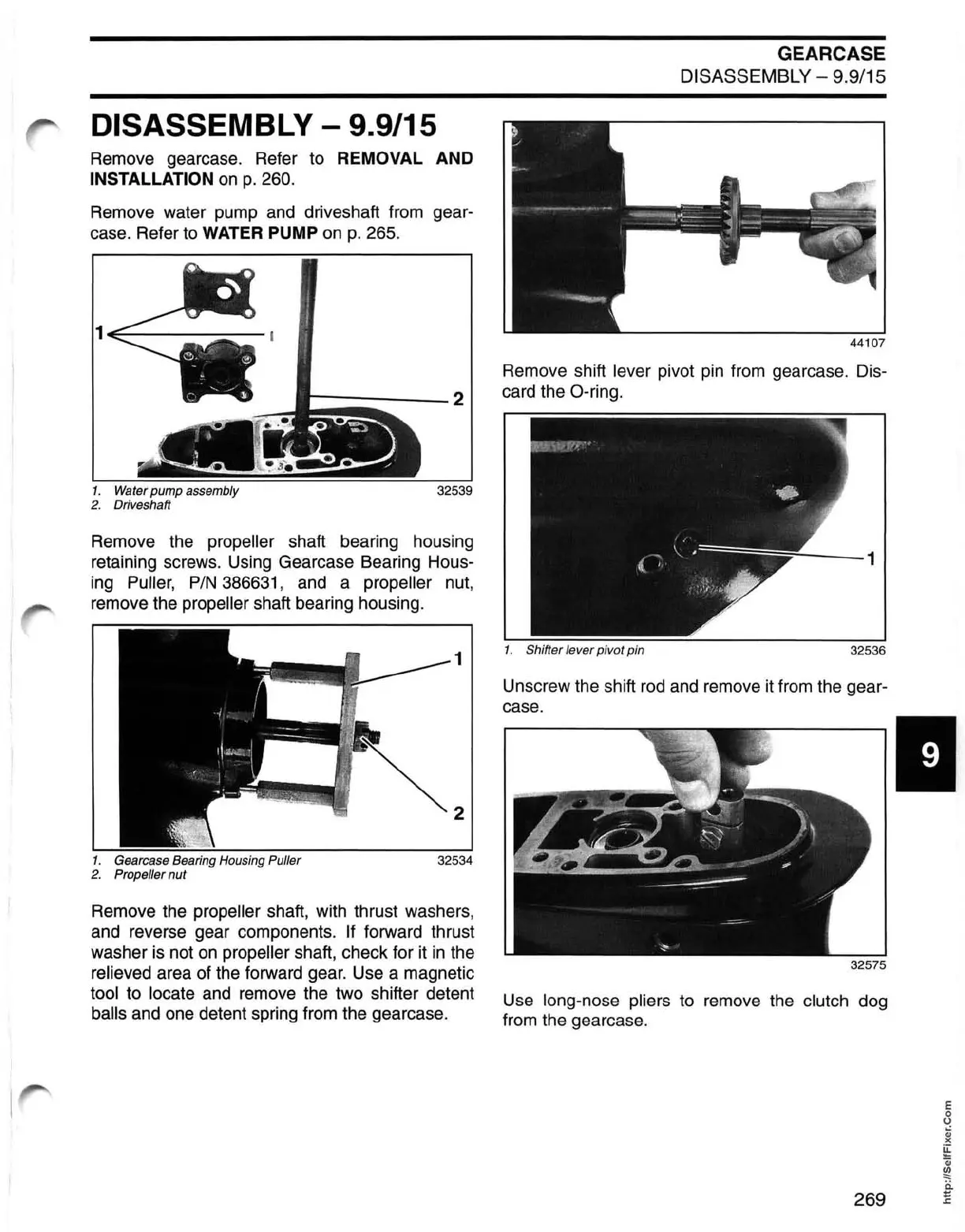

DISASSEMBLY - 9.9/15
Remove gearcase. Refer to REMOVAL AND
INSTALLATION
on
p.
260.
Remove water pump
and
driveshaft from gear-
case. Refer
to
WATER PUMP
on
p.
265.
1~------
------2
1.
Water pump assembly 32539
2. Driveshaft
Remove the propeller shaft bearing housing
retaining screws. Using Gearcase Bearing Hous-
ing
Puller,
PIN
386631, and a propeller nut,
remove the
propeller shaft bearing housing.
1
2
1.
Gearcase Bearing Housing Puller 32534
2. Propeller nut
Remove the propeller shaft, with thrust washers,
and reverse gear components.
If forward thrust
washer
is
not
on
propeller shaft, check for it
in
the
relieved area of the forward gear. Use a magnetic
tool to locate
and
remove the two shifter detent
balls
and
one
detent spring from the gearcase.
GEARCASE
DISASSEMBLY - 9.9/15
Remove shift lever pivot
pin
from gearcase. Dis-
card the
O-ring.
.-----1
1. Shifter lever pivot pin
32536
Unscrew the shift
rod
and
remove it from the gear-
case.
Use long-nose pliers to remove the clutch dog
from the gearcase.
E
o
o
~
><
~
OJ
~
c.
269 E
To Next Page
