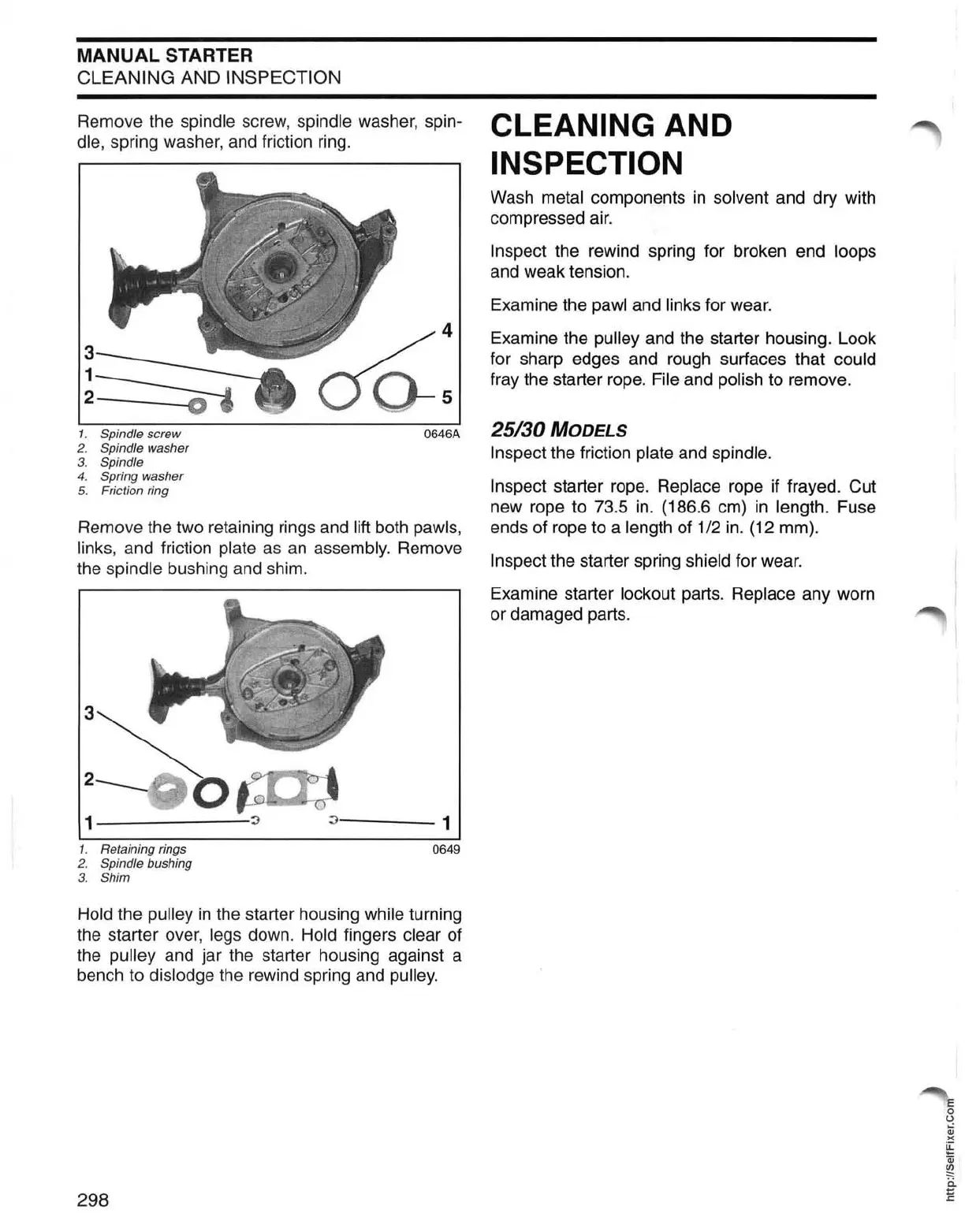

MANUAL STARTER
CLEANING AND INSPECTION
Remove the spindle screw, spindle washer, spin-
dle, spring washer, and friction ring.
4
1. Spindle scr ew 0646A
2. Spindle wash er
3. S pi ndle
4. S
pri ng wa sher
5. Friction ring
Remove the two retaining rings and lift both pawls,
links,
and friction plate as an assembly. Remove
the
spindle bushing and shim.
1------
----1
1. Reta in ing rings 0649
2. Spindle bushing
3.
Shim
Hold the pulley in the starter housing while turning
the starter over,
legs down. Hold fingers clear of
the
pulley and jar the starter housing against a
bench
to dislodge the rewind spring and pulley.
298
CLEANING AND
INSPECTION
Wash metal components in solvent and dry with
compressed air.
Inspect the rewind spring for broken end loops
and weak tension.
Examine the
pawl and links for wear.
Examine the
pulley and the starter housing. Look
for sharp edges and rough surfaces that
could
fray the starter rope. File and polish to remove.
25/30 MODELS
Inspect the friction plate and spindle.
Inspect
starter rope. Replace rope if frayed. Cut
new rope to 73.5
in . (186.6 cm) in length. Fuse
ends of rope to a
length of 1/2 in. (12 mm).
Inspect the starter spring shield for wear.
Examine starter
lockout parts. Replace any worn
or damaged parts.
