Johnson J30MLSRC User Manual

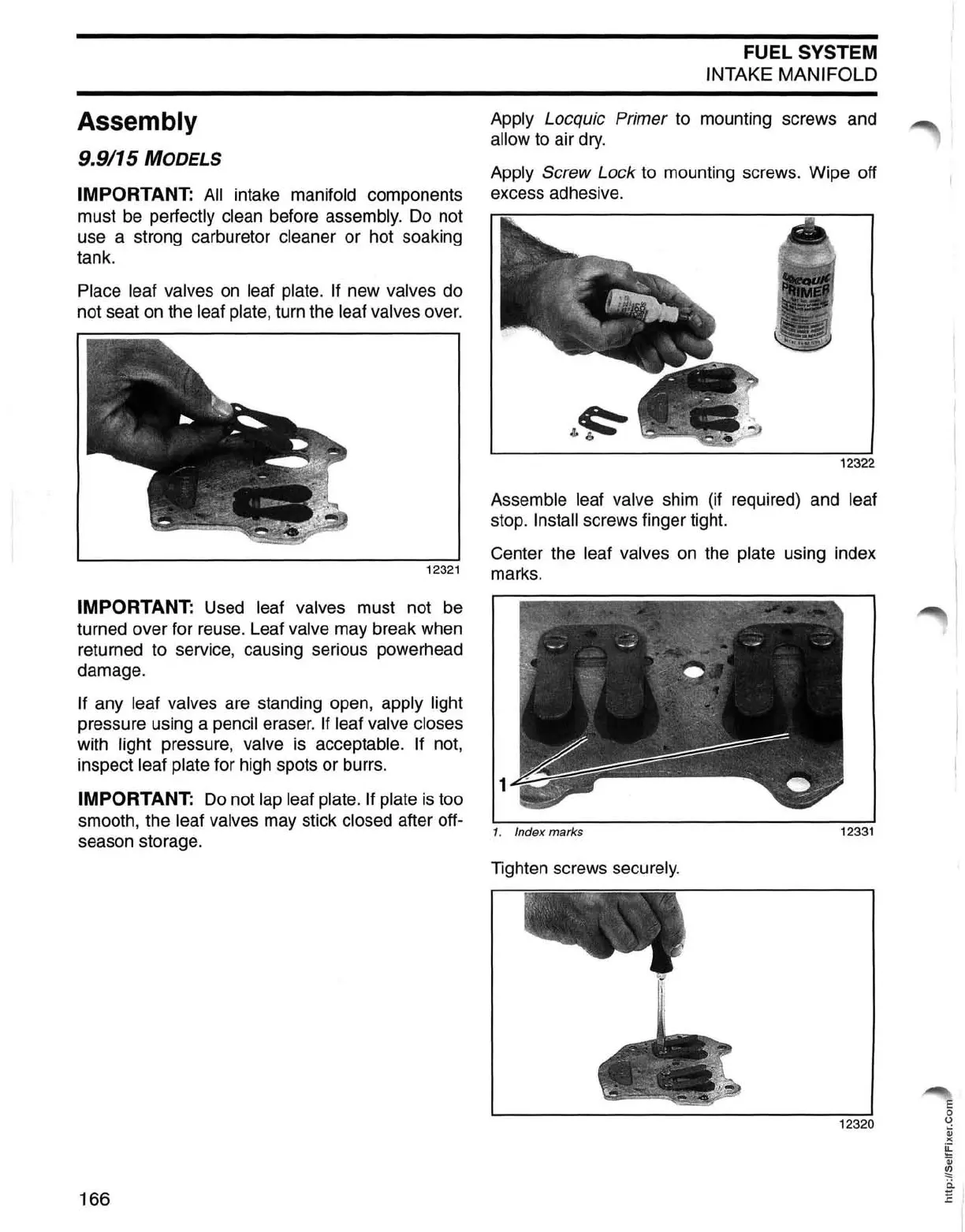

Assembly
9.9/15 MODELS
IMPORTANT: All intake manifold components
must
be perfectly clean before assembly. Do not
use a strong carburetor cleaner or hot soaking
tank.
Place leaf valves
on leaf plate. If new valves do
not seat on the leaf plate, turn the leaf valves over.
FUEL SYSTEM
INTAKE MANIFOLD
Apply Locquic Primer to mounting screws and
allow to air dry.
Apply Screw Lock to mounting screws. Wipe off
excess adhesive.
Assemble leaf valve shim (if required) and leaf
stop.
Install screws finger tight.
Center the leaf valves
on the plate using index
12321 marks.
IMPORTANT: Used leaf valves must not be
turned over for reuse. Leaf valve may break when
returned to service, causing serious powerhead
damage.
If any leaf valves are standing open, apply light
pressure using a pencil eraser.
If leaf valve closes
with light pressure, valve
is acceptable. If not,
inspect leaf plate for high spots or burrs.
IMPORTANT: Do not lap leaf plate. If plate is too
smooth, the leaf valves may stick closed after off-
season storage.
166
1
1. Index marks
12331
Tighten screws securely.
12320
E
o
o
~
><
~
Qj
~
i:i
~ I
