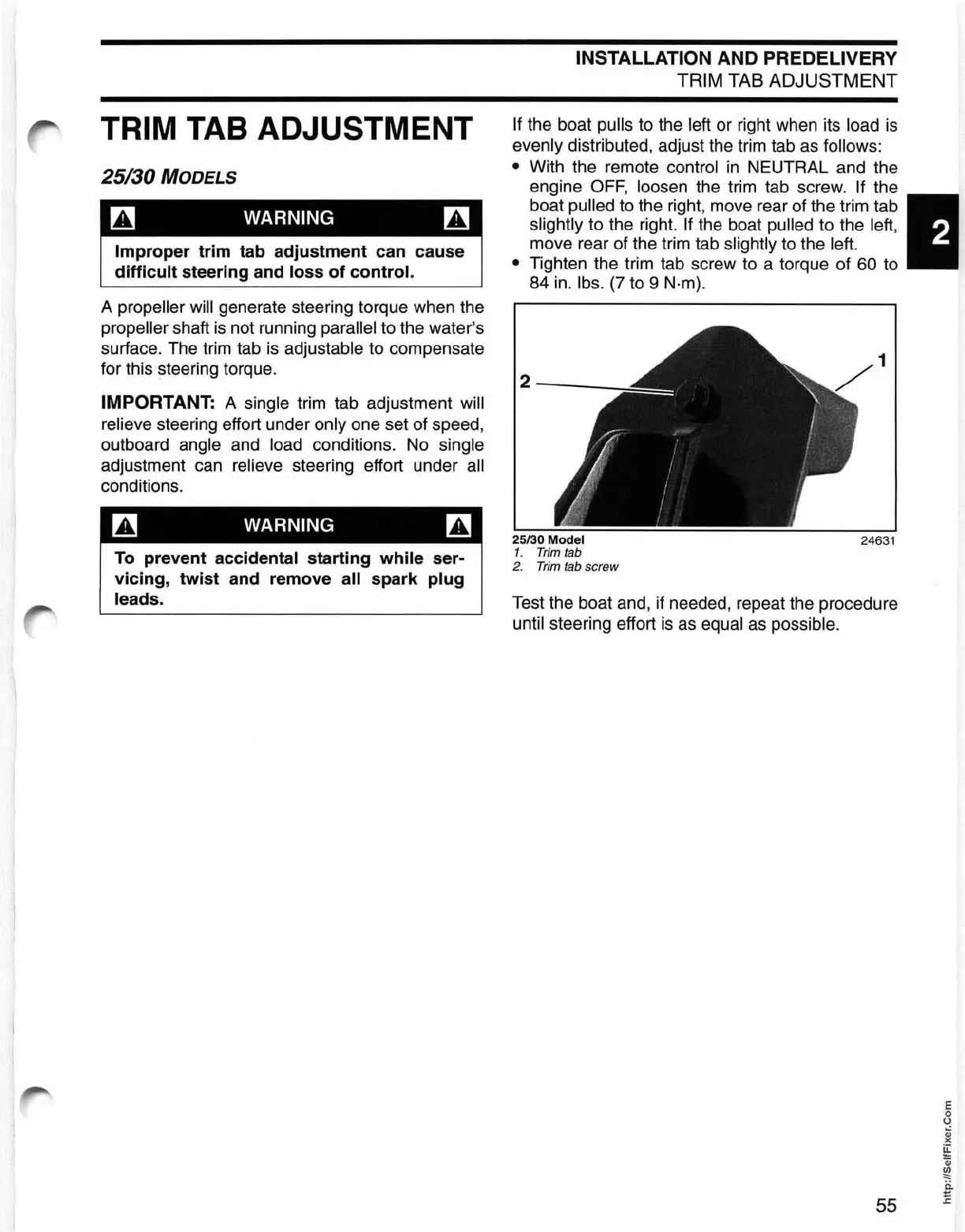

TRIM TAB ADJUSTMENT
25/30
MODELS
~
WARNING
~
Improper trim tab adjustment can cause
difficult
steering and loss
of
control.
A propeller will generate steering torque when the
propeller shaft
is
not running parallel to the water's
surface. The trim tab
is
adjustable to compensate
for this steering torque.
IMPORTANT: A single trim tab adjustment will
relieve steering effort under only one set of speed,
outboard
angle and load conditions. No single
adjustment can relieve steering effort under all
conditions.
~
WARNING
~
To
prevent accidental starting
while
ser-
vicing,
twist
and remove all spark plug
leads.
INSTALLATION AND PREDELIVERY
TRIM TAB ADJUSTMENT
If the boat pulls to the left or right when its load
is
evenly distributed, adjust the trim tab as follows:
•
With the remote control
in
NEUTRAL and the
engine
OFF,
loosen the trim tab screw. If the
boat
pulled to the right, move rear of the trim tab 2
Slightly to the right. If the boat pulled to the left,
move rear of the trim tab slightly to the left.
• Tighten the trim tab screw to a torque of 60 to
84
in.
Ibs.
(7
to 9 N·m).
1
2-
__
_
25/30 Model
24631
1.
Trim
tab
2.
Trim
tab screw
Test the boat and, if needed, repeat the procedure
until steering effort
is
as equal as possible.
