IGNITION

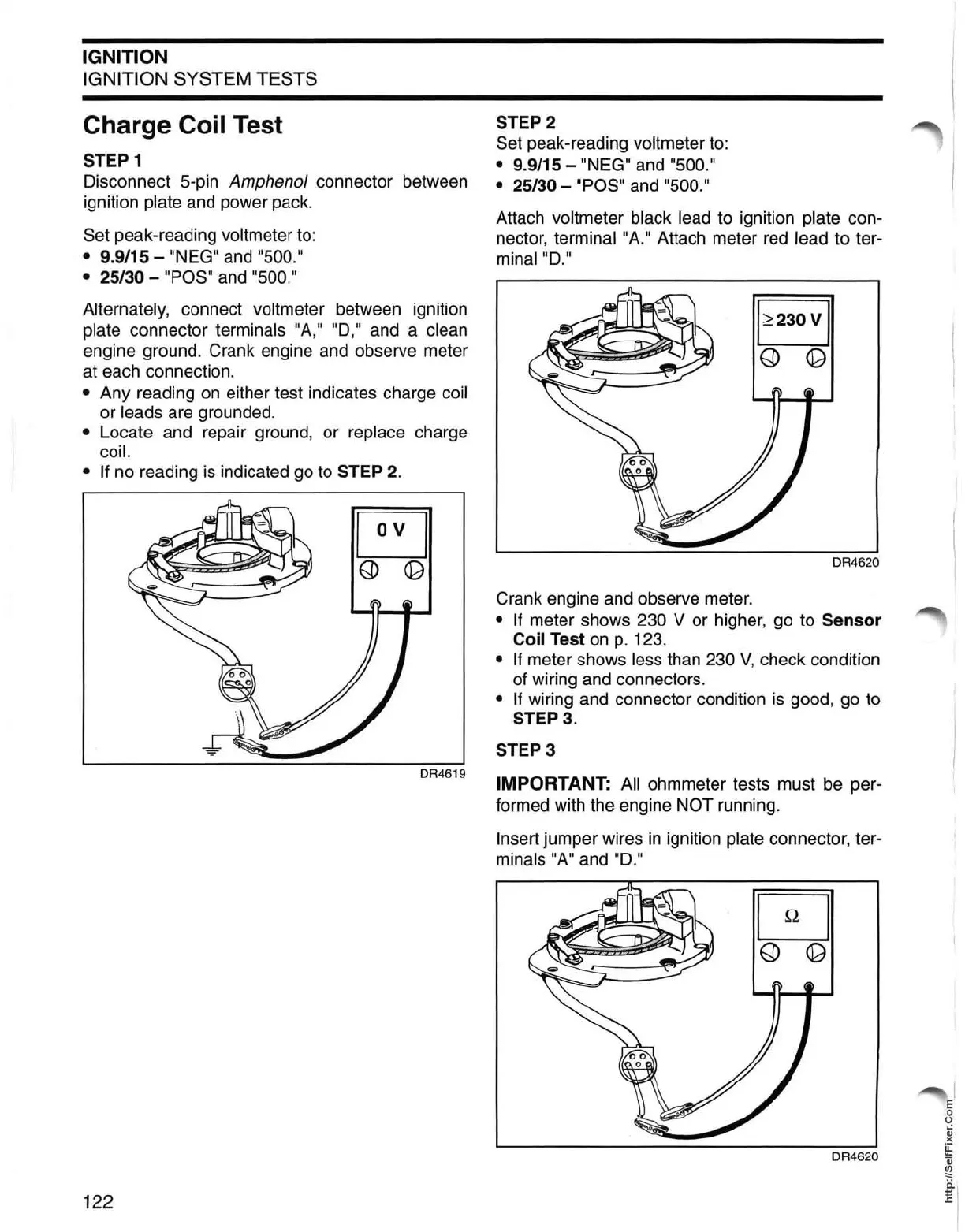

IGNITION SYSTEM TESTS
Charge Coil Test
STEP 1
Disconnect 5-pin
Amphenol connector between
ignition
plate and power pack.
Set peak-reading voltmeter to:
• 9.9/15 - "NEG" and "SOD."
• 25130 - "POS" and "SOD."
Alternately, connect voltmeter between ignition
plate connector terminals "A," "0," and a clean
engine ground. Crank engine and observe meter
at each connection.
• Any reading on either test indicates charge coil
or leads are grounded.
• Locate and repair ground, or replace charge
coil.
•
If no reading is indicated go to STEP 2.
DR4619
122
STEP 2
Set peak-reading voltmeter to:
• 9.9/15 - "NEG" and "SOD."
• 25130 - "pas" and "SOD."
Attach voltmeter black lead to ignition plate con-
nector, terminal
"A." Attach meter red lead to ter-
minal"D ."
DR4620
Crank engine and observe meter.
• If meter shows 230 V or higher, go to Sensor
Coil Test on p. 123.
• If meter shows less than 230 V, check condition
of wiring and connectors.
• If wiring and connector condition is good, go to
STEP 3.
STEP 3
IMPORTANT: All ohmmeter tests must be per-
formed with the engine
NOT running.
Insert jumper wires in ignition plate connector, ter-
minals "A" and "D."
DR4620
