ELECTRICAL
CONNECTOR SERVICING

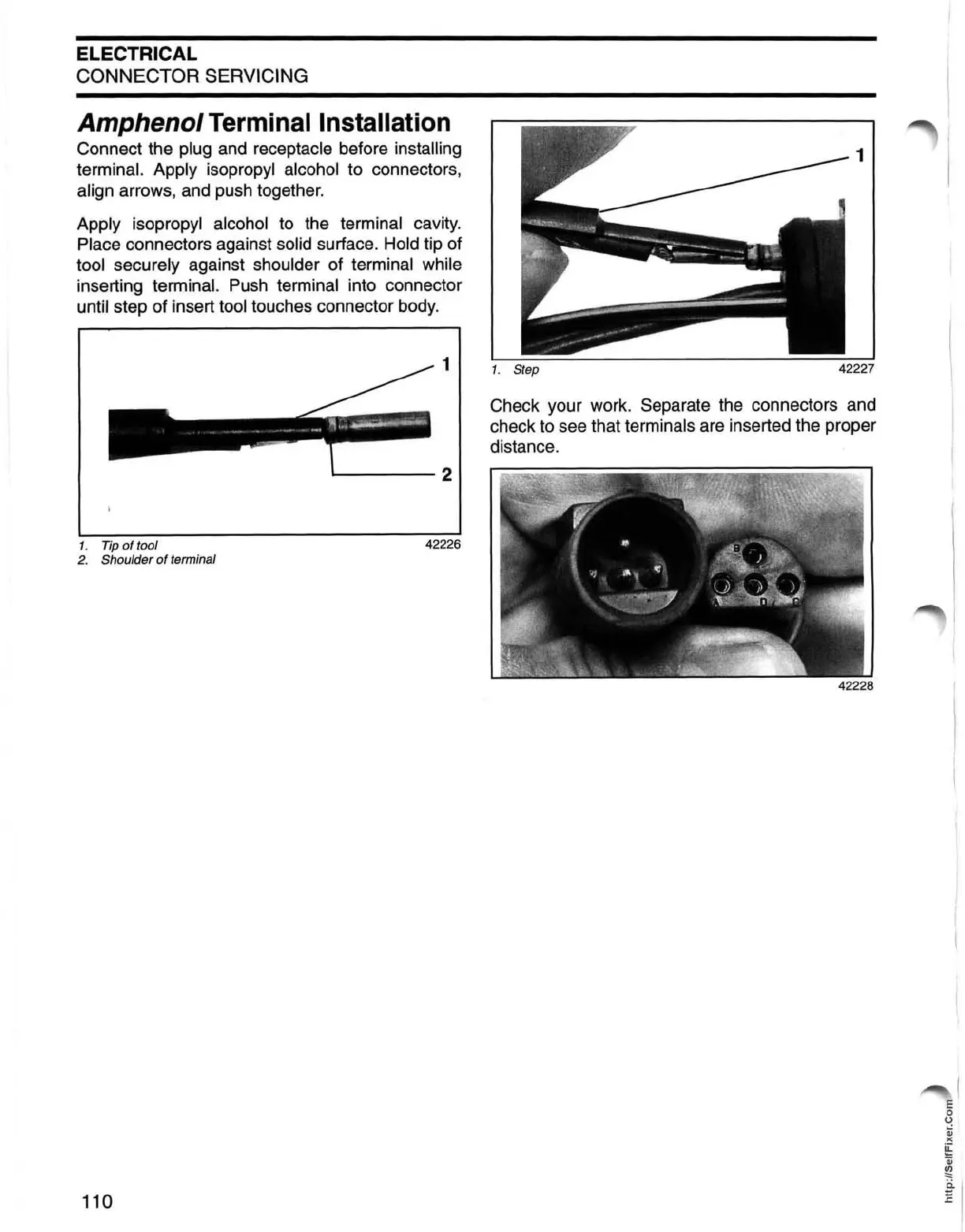

Ampheno/ Terminal Installation
Connect the plug and receptacle before installing
terminal. Apply isopropyl alcohol
to connectors,
align arrows, and push together.
Apply isopropyl alcohol to the terminal cavity.
Place connectors against solid surface. Hold tip of
tool securely against shoulder of terminal while
inserting terminal.
Push
terminal into connector
until step of insert tool touches connector body.
1
~----2
1.
Tip
of
tool
42226
2. Shoulder
of
terminal
110
1
1.
Step
42227
Check your work. Separate the connectors and
check to see that
terminals are inserted the proper
distance.
