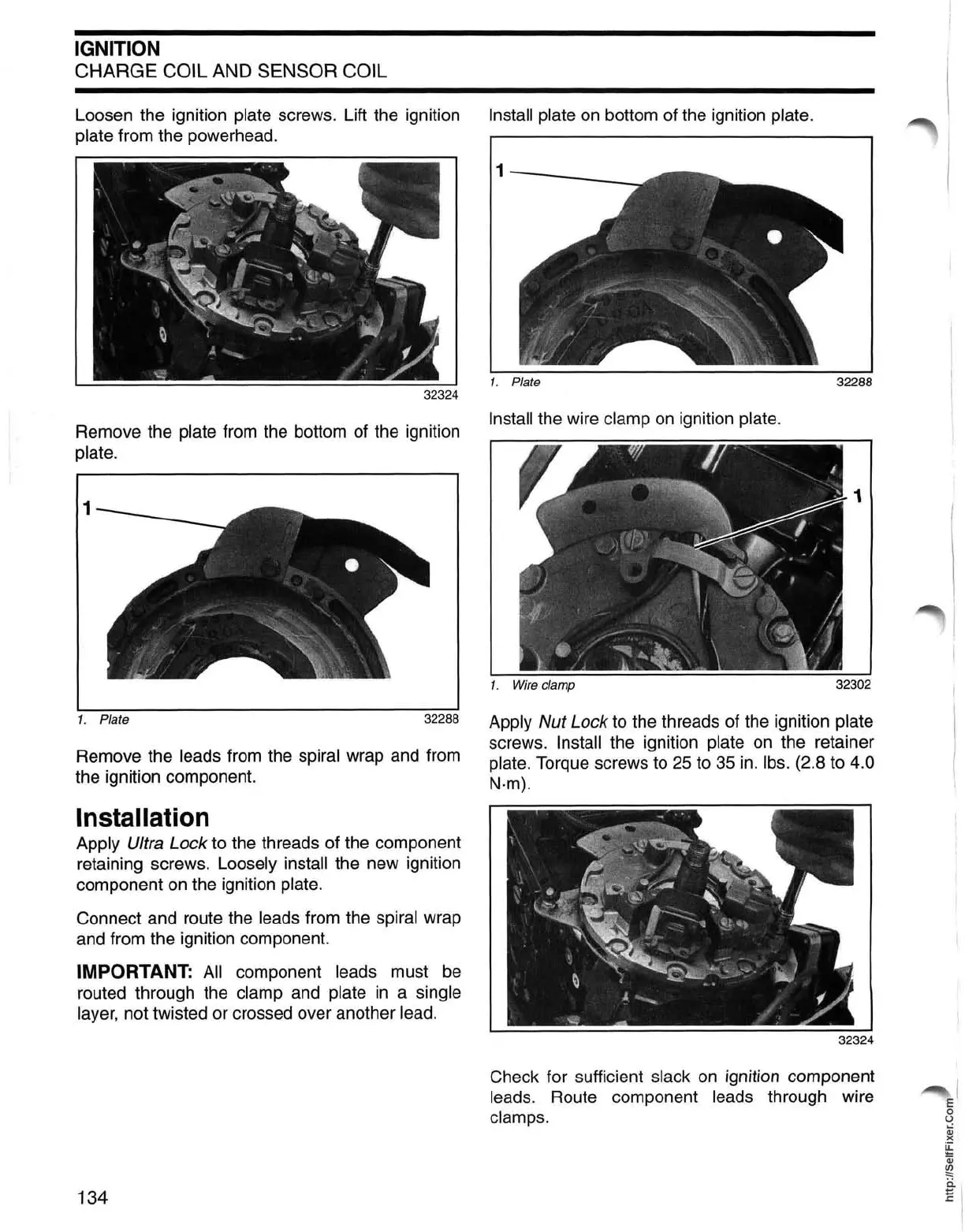

IGNITION
CHARGE COIL AND SENSOR COIL
Loosen the ignition plate screws. Lift the ignition Install plate on bottom of the ignition plate.
plate
from the powerhead.
Remove the
plate from the bottom of the ignition
plate.
1
1. Plate
32288
Remove the leads from the spiral wrap and from
the ignition component.
Installation
Apply Ultra Lock to the threads of the component
retaining screws.
Loosely install the new ignition
component on the ignition
plate.
Connect and route the leads from the spiral wrap
and from the ignition component.
IMPORTANT: All component leads must be
routed through the
clamp and plate
in
a single
layer,
not twisted or crossed over another lead.
134
1. Plate 32288
Install the wire clamp
on
ignition plate.
1.
Wire
clamp
Apply Nut Lock to the threads of the ignition plate
screws. Install the ignition plate on the retainer
plate. Torque screws to 25 to 35
in
. Ibs.
(2
.8 to 4.0
N·m).
Check for sufficient slack on ignition component
leads. Route component leads through wire
clamps.
