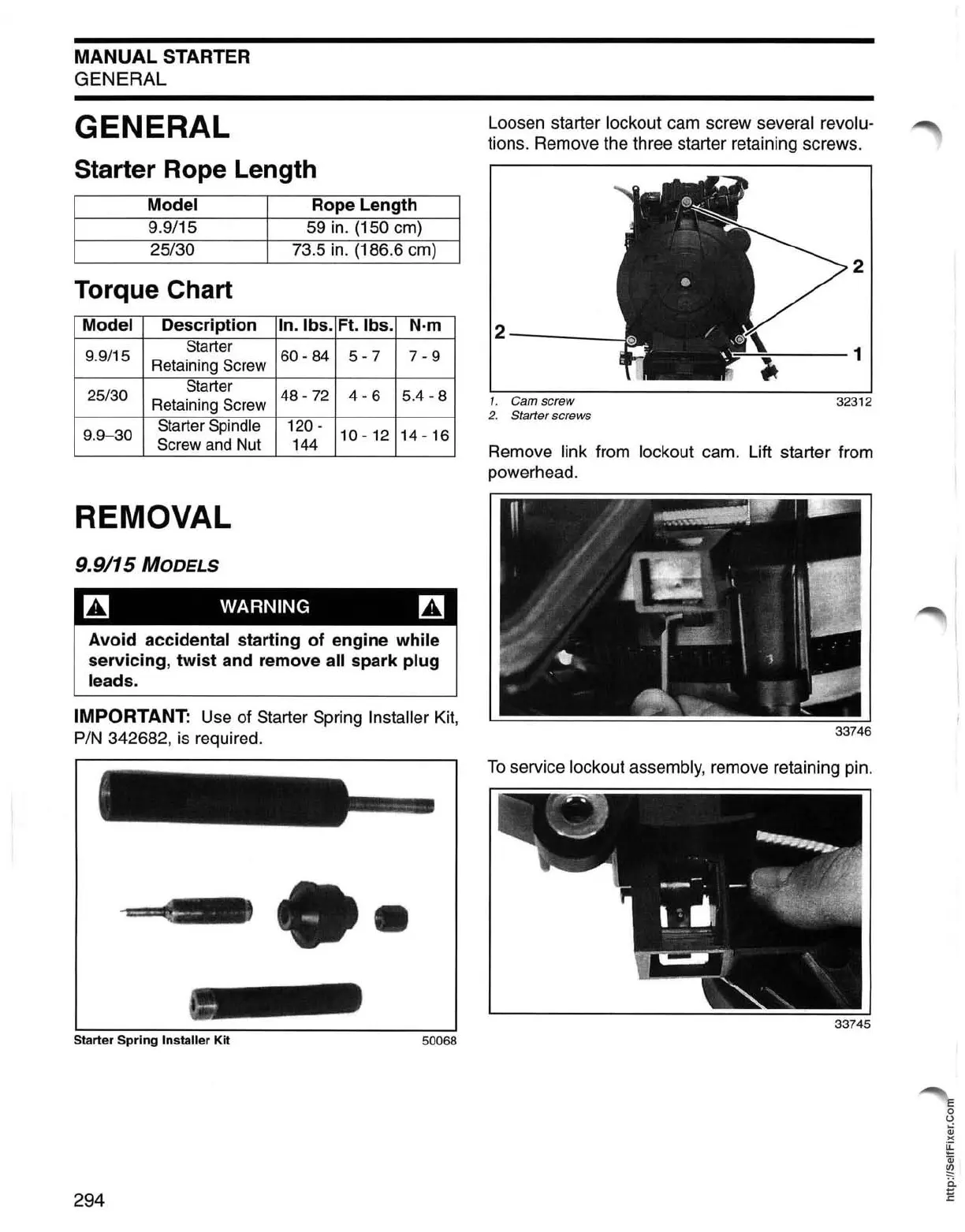

MANUAL STARTER
GENERAL
GENERAL
Starter Rope Length
Model Rope Length
9.9/15 59 in . (150 cm)
25/30 73.5 in. (186.6 cm)
Torque Chart
Model Description In.lbs. Ft. Ibs.
N·m
9.9/15
Starter
60 - 84
5-7
7-9
Retaining Screw
25/30
Starter
48 -72 4-6
5.4 - 8
Retaining Screw
9.9-30
Starter Spindle 120 -
10 - 12 14 - 16
Screw and Nut 144
REMOVAL
9.9/15 MODELS
~ WARNING ~
Avoid accidental starting of engine while
servicing, twist and remove all spark plug
leads.
IMPORTANT: Use of Starter Spring Installer Kit,
PIN 342682, is required.
II
Starter Spring Installer Kit
50068
294
Loosen starter lockout cam screw several revolu-
tions. Remove the three starter retaining screws.
2
2-- __ __
E:=-.....:::=---1
1. Cam screw
32312
2. Starter screws
Remove link from lockout cam. Lift starter from
powerhead.
33746
To service lockout assembly, remove retaining pin.
