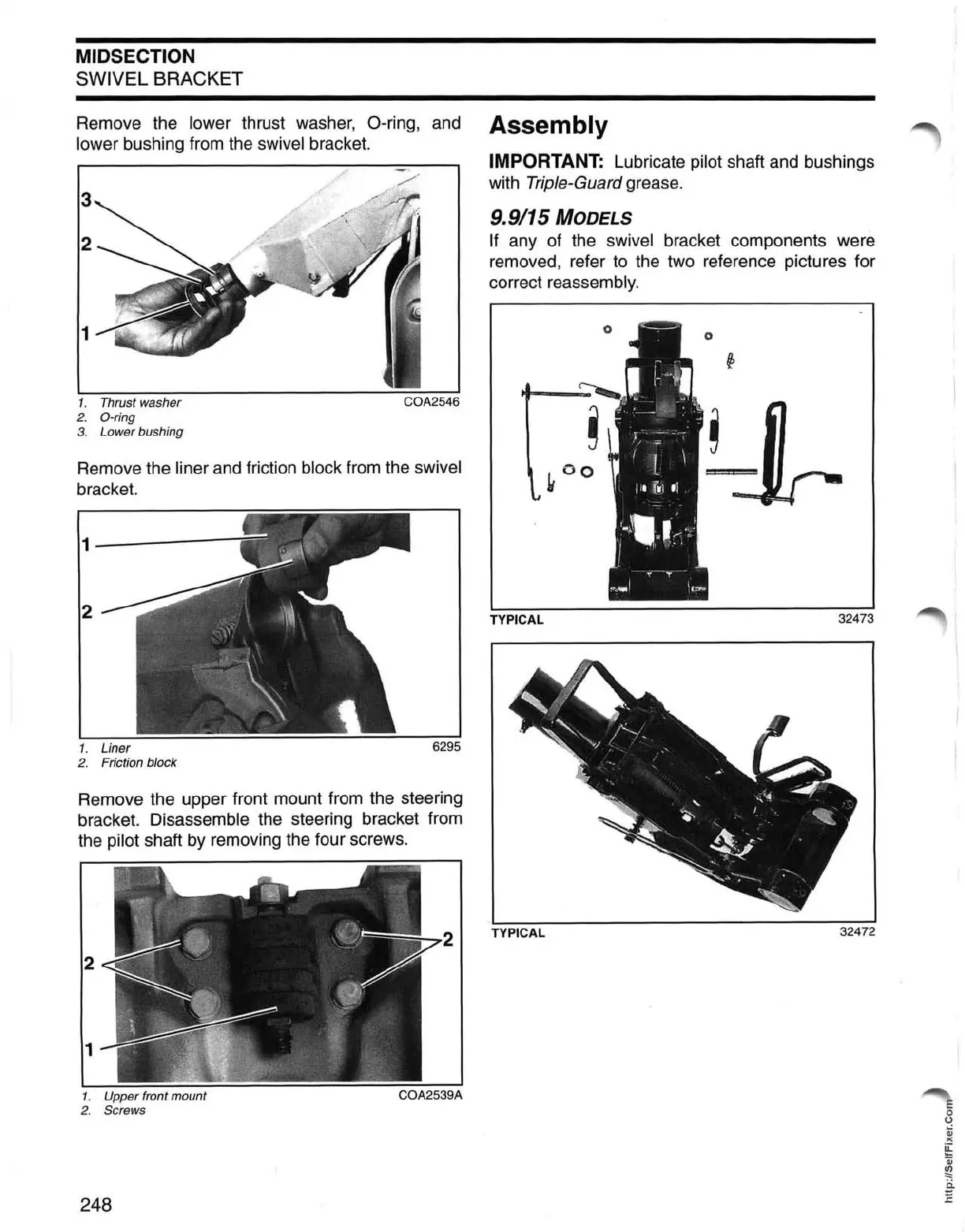

MIDSECTION

SWIVEL

BRACKET

Remove the lower thrust washer, O-ring, and Assembly

lower bushing from the swivel bracket.

1. Thrust washer

COA2546

2. O-ring

3. Lower bushing

Remove the liner

and

friction block from the swivel

bracket.

1. Liner

6295

2. Friction block

Remove the upper front mount from the steering

bracket.

Disassemble the steering bracket from

the pilot shaft

removing the four screws.

1. Upper front mount

Screws

248

IMPORTANT: Lubricate pilot shaft and bushings

with

Triple-Guard grease.

9.9/15

MODELS

any of the swivel bracket components were

removed, refer to the two reference pictures for

correct reassembly.

TYPICAL

i:i
