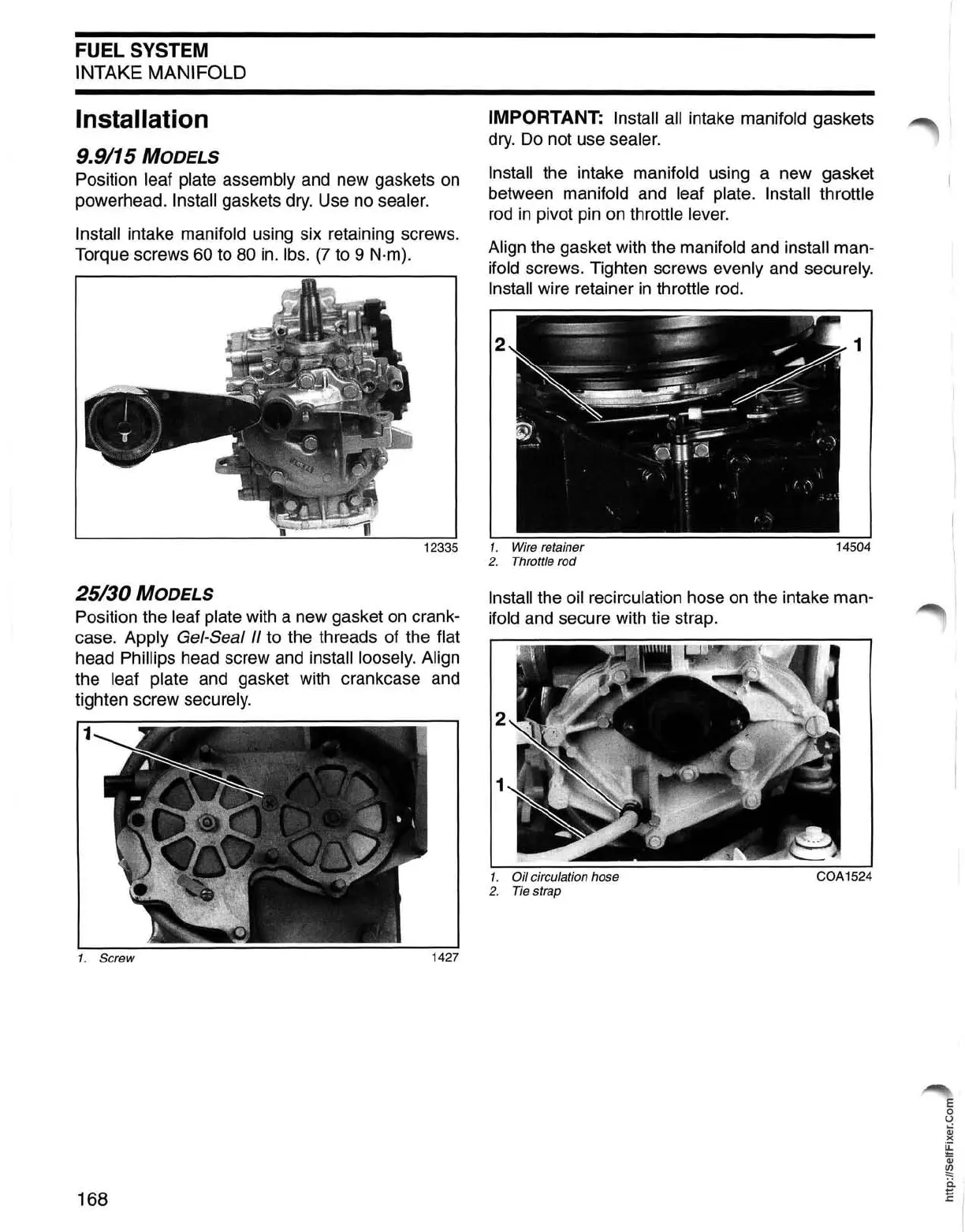

FUEL
SYSTEM
INTAKE MANIFOLD
Installation
9.9/15 MODELS
Position leaf plate assembly and new gaskets
on
powerhead. Install gaskets
dry.
Use no sealer.
Install
intake manifold using six retaining screws.
Torque screws
60 to 80
in.
Ibs.
(7
to 9 N·m).
IMPORTANT: Install all intake manifold gaskets
dry.
Do not use sealer.
Install
the intake manifold using a new gasket
between manifold and leaf plate. Install throttle
rod
in
pivot pin on throttle lever.
Align
the gasket with the manifold and install man-
ifold screws. Tighten screws evenly and securely.
Install wire retainer
in
throttle
rod.
2
1
12335 1.
Wire
retainer
2. Throttle rod
14504
25/30 MODELS
Position the leaf plate with a new gasket
on
crank-
case. Apply
Gel-Seal"
to the threads of the flat
head Phillips head screw and install loosely. Align
the leaf plate and gasket with crankcase and
tighten screw
securely.
1
168
Install the oil recirculation hose
on
the intake man-
ifold and secure with tie strap.
1. Oil circulation hose
COA1524
2.
Tie
strap
E
o
U
Qj
)(
~
OJ
~
ii
E
