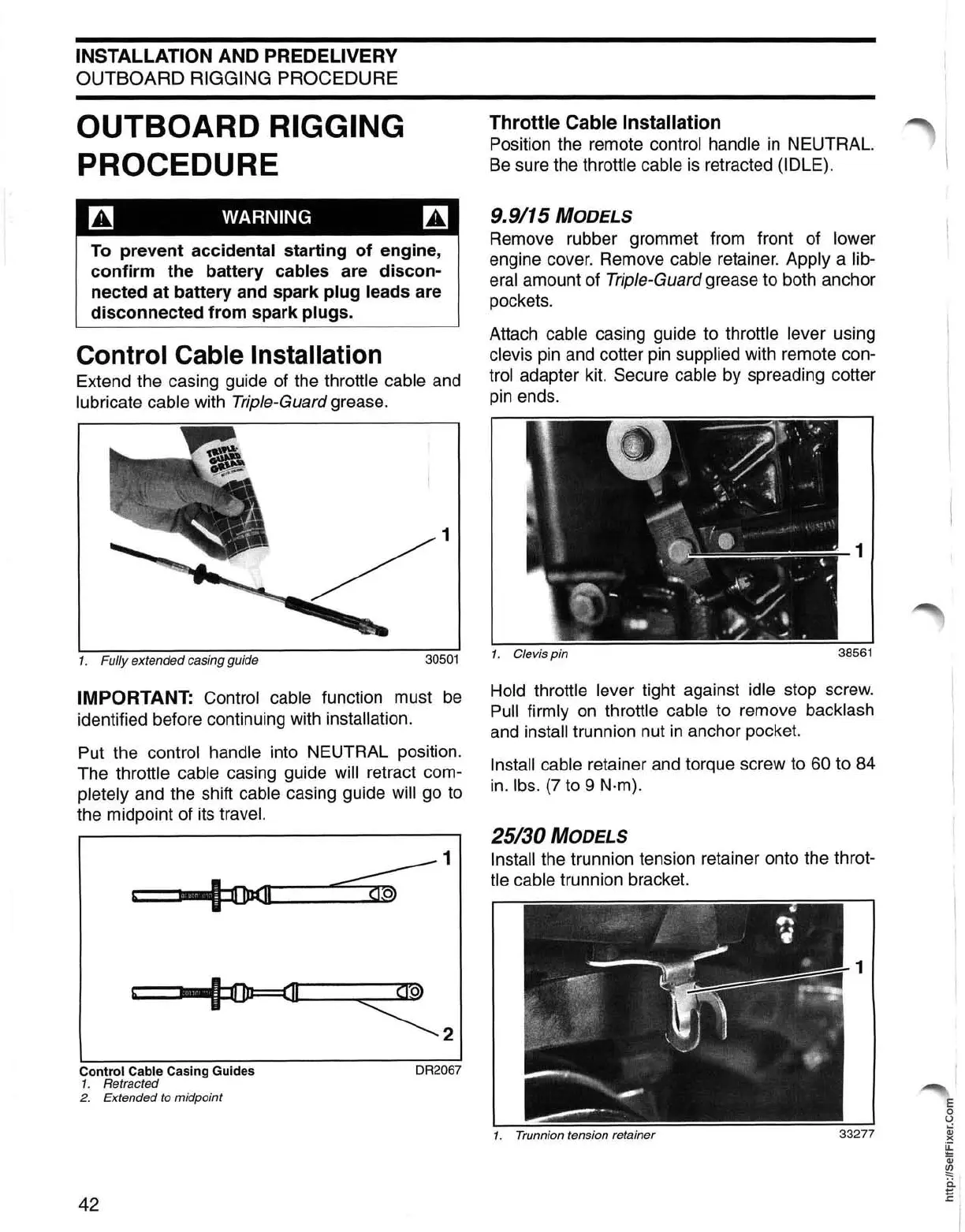

INSTALLATION AND PREDELIVERY
OUTBOARD RIGGING PROCEDURE
OUTBOARD RIGGING
PROCEDURE
~
WARNING
~
To
prevent accidental starting of engine,
confirm the battery
cables are discon-
nected at battery and spark
plug leads are
disconnected from spark
plugs.
Control Cable Installation
Extend the casing guide of the throttle cable
and
lubricate cable with Triple-Guard grease.
..
1. Fully extended casing guide
30501
IMPORTANT: Control cable function must
be
identified before continuing with installation.
Put the control handle into NEUTRAL position.
The
throttle cable casing guide will retract com-
pletely and the shift cable casing guide will go to
the midpoint of
its
travel.
Control
Cable
Casing
Guides
DR2067
1. Retracted
2.
Extended to midpoint
42
Throttle Cable Installation
Position the remote control handle
in
NEUTRAL.
Be
sure the throttle cable
is
retracted (IDLE).
9.9/15 MODELS
Remove rubber grommet from front of lower
engine cover. Remove cable retainer. Apply a lib-
eral
amount of Triple-Guard grease to both anchor
pockets.
Attach
cable casing guide to throttle lever using
clevis pin and cotter
pin
supplied with remote con-
trol adapter
kit.
Secure cable by spreading cotter
pin
ends.
1
1. Clevis pin
38561
Hold throttle lever tight against idle stop screw.
Pull firmly
on
throttle cable to remove backlash
and
install trunnion nut
in
anchor pocket.
Install cable retainer
and
torque screw
to
60
to 84
in.
Ibs.
(7
to 9 N·m).
25/30 MODELS
Install the trunnion tension retainer onto the throt-
tle cable trunnion bracket.
E
o
U
Qj
)(
~
Qj
~
I
Co
E
