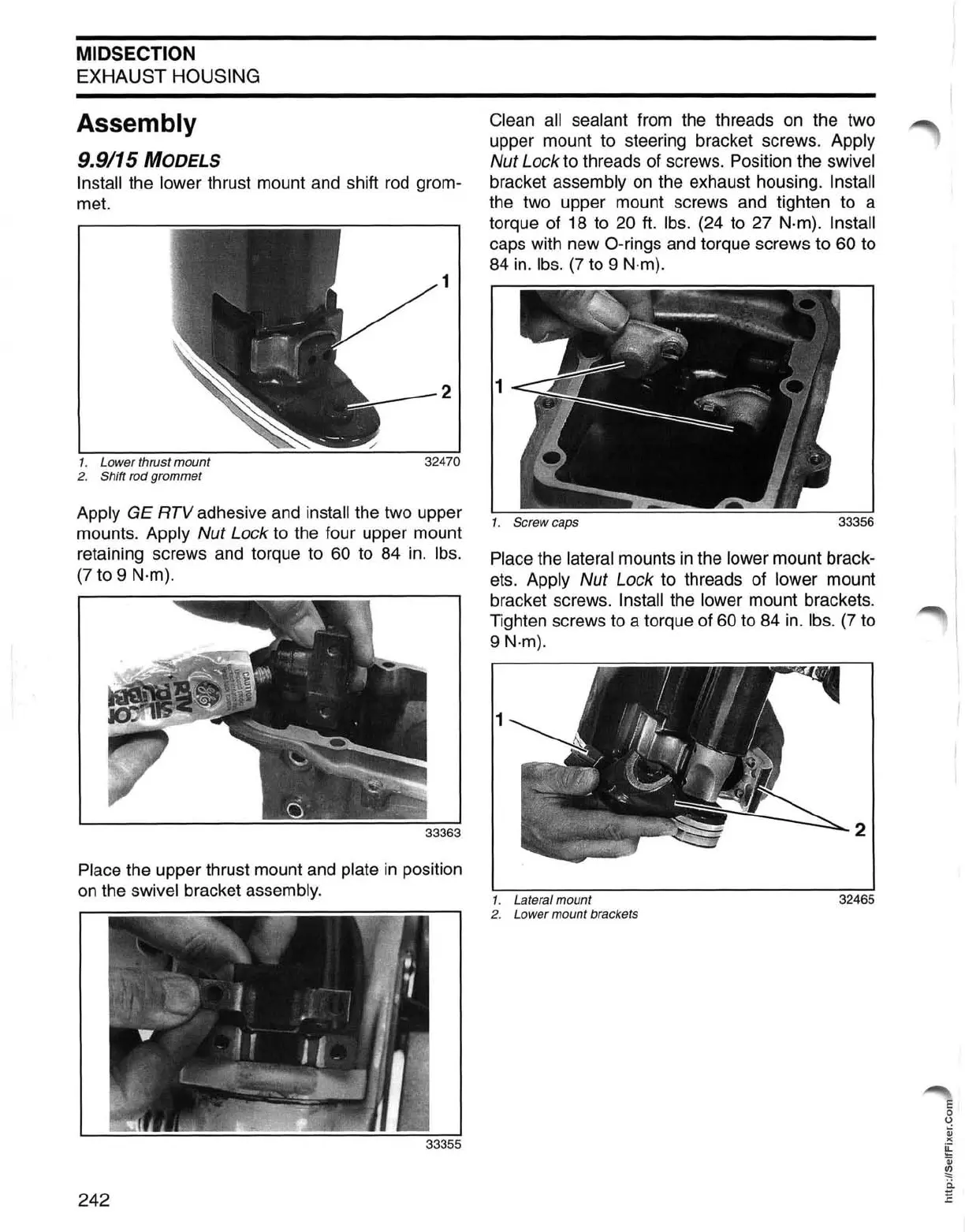

MIDSECTION
EXHAUST HOUSING
Assembly
9.9/15
MODELS
Install the lower thrust mount and shift
rod
grom-
met.
1
2
1.
Lower thrust mount
2.
Shift rod grommet
Apply
GE
RTVadhesive and install the two upper
mounts.
Apply Nut Lock to the four upper mount
retaining screws and torque to
60 to 84 in.
Ibs.
(7
to 9 N·m).
Place
the upper thrust mount and plate
in
position
on
the swivel bracket assembly.
242
Clean all sealant from the threads on the two
upper mount to steering bracket screws. Apply
Nut Lock to threads of screws. Position the swivel
bracket assembly on the exhaust housing. Install
the two upper mount screws and tighten to a
torque of 18 to
20
ft.
Ibs. (24 to 27 N·m). Install
caps with new O-rings and torque screws to
60
to
84 in. Ibs. (7 to 9 N.m).
1. Screw caps
33356
Place the lateral mounts
in
the lower mount brack-
ets.
Apply Nut Lock to threads of lower mount
bracket screws.
Install the lower mount brackets.
Tighten screws to a torque of
60 to 84 in. Ibs. (7 to
9 N·
m)
.
2
1.
Lateral mount
32465
2. Lower mount brackets
E
o
o
~
><
~
Qj
~
i:i
E
