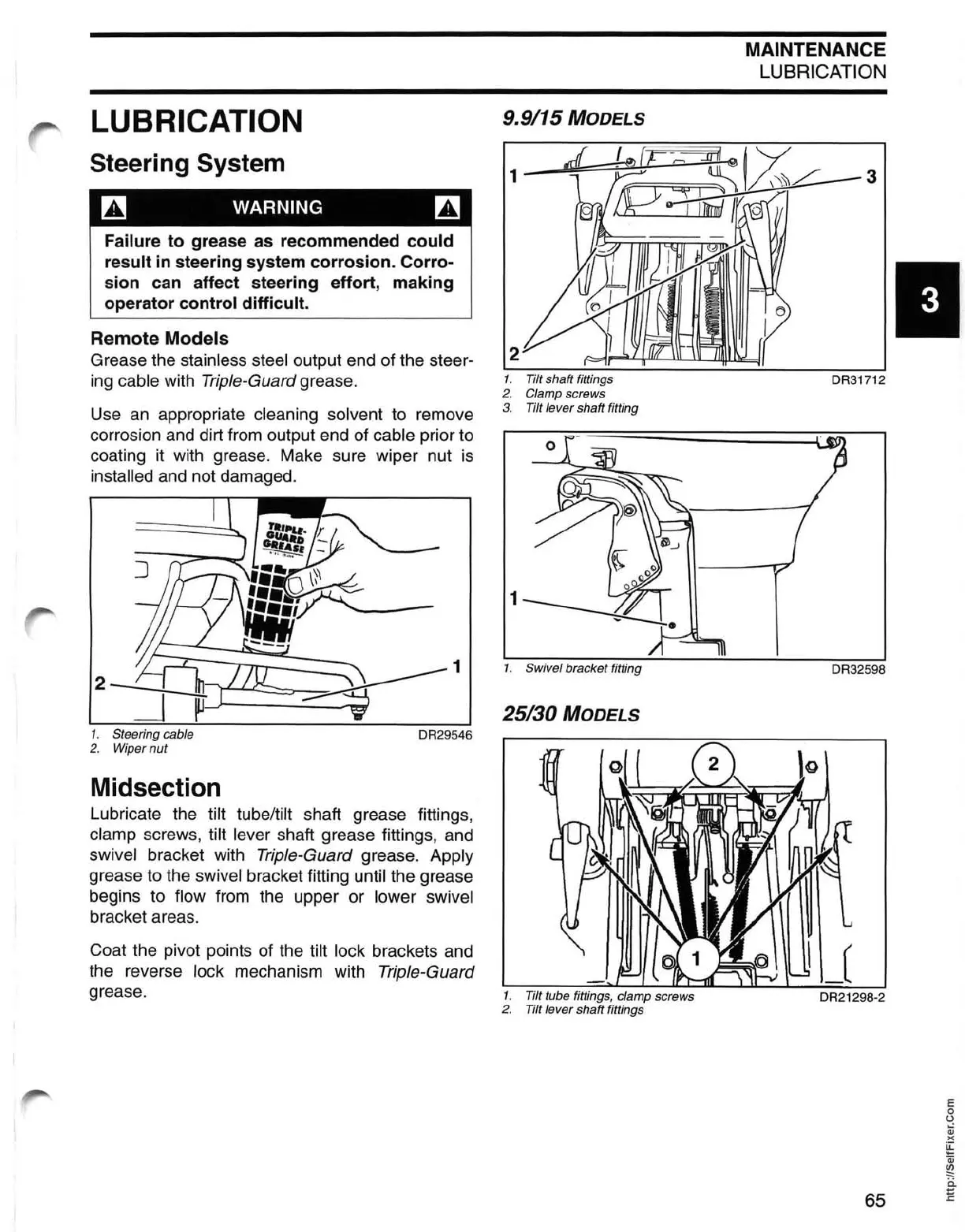

Johnson J30MLSRC User Manual

LUBRICATION
Steeri ng System
~ WARNING ~
Failure to grease as recommended could
result
in steering system corrosion. Corro-
sion can affect steering effort, making
operator
control difficult.
Remote Models
Grease the stainless steel output end of the steer-
ing cable with Triple-Guard grease.
Use an appropriate cleaning solvent to remove
corrosion and dirt from output end of cable prior to
coating
it with grease. Make sure wiper nut is
installed and not damaged.
J
1
1. Steering cable
DR29S46
2. Wiper nut
Midsection
Lubricate the tilt tube/tilt shaft grease fittings,
clamp screws,
tilt lever shaft grease fittings, and
swivel bracket with Triple-Guard grease. Apply
grease to the swivel bracket fitting until the grease
begins to
flow from the upper or lower swivel
bracket areas.
Coat the pivot points of the
tilt lock brackets and
the reverse
lock mechanism with Triple-Guard
grease.
9.9/15 MODELS
1. Tilt shaft fittings
2. Clamp screws
3. Tilt lever shaft fitting
1.
Swivel bracket fitting
25/30 MODELS
1. Tilt tube fittings, clamp screws
2. Tilt lever shaft fittings
MAINTENANCE
LUBRICATION
3
DR31712
DR32S9S
DR2129S-2
•
E
o
o
:;j
)(
~
Qj
~
i::i.
65 ~
