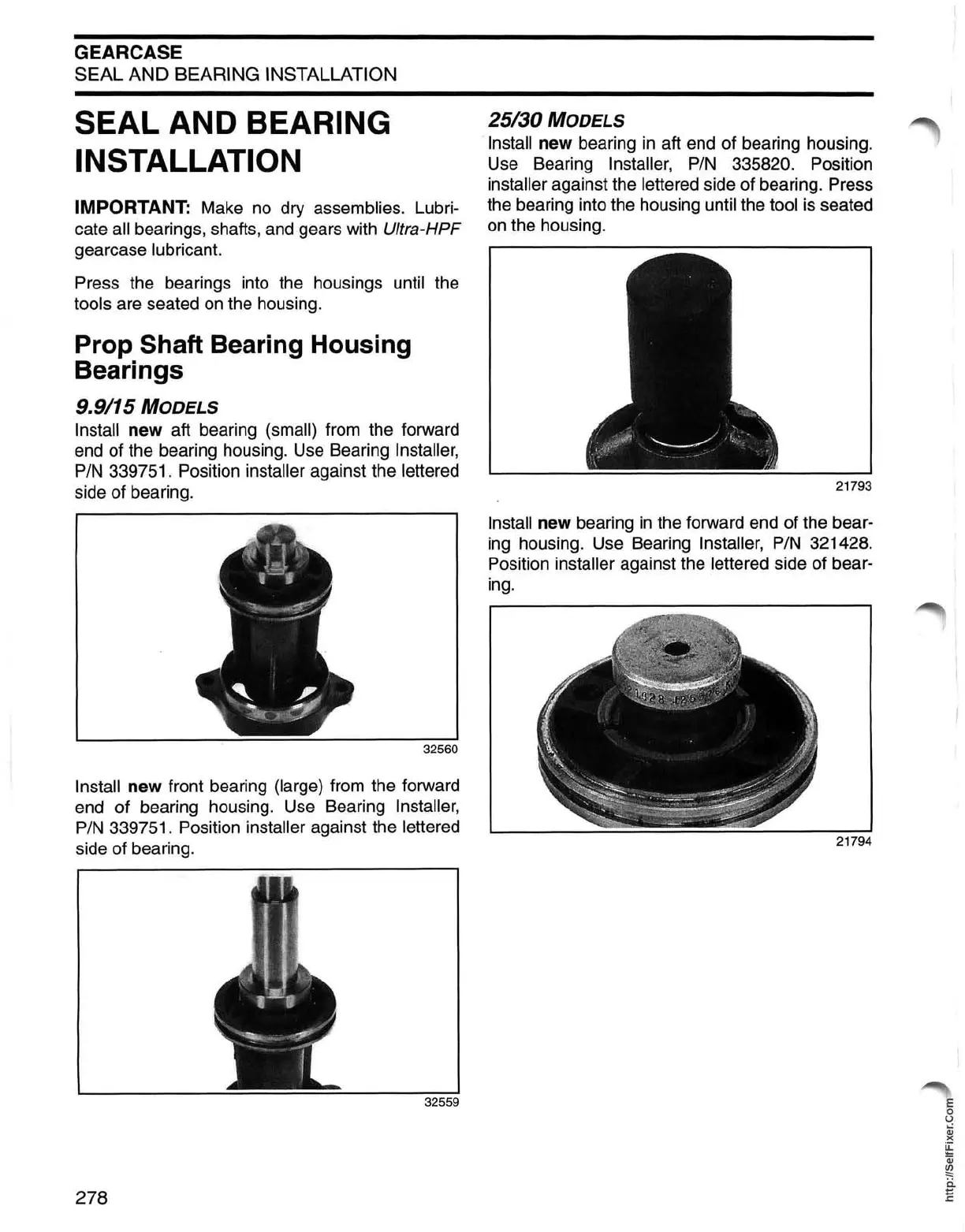

GEARCASE
SEAL AND BEARING INSTALLATION
SEAL AND BEARING
INSTALLATION
IMPORTANT: Make
no
dry assemblies. Lubri-
cate all bearings, shafts,
and
gears with Ultra-HPF
gearcase lubricant.
Press the bearings into the housings until the
tools are seated
on
the housing.
Prop Shaft Bearing Housing
Bearings
9.9/15 MODELS
Install new aft bearing (small) from the forward
end
of the bearing housing. Use Bearing Installer,
PIN
339751. Position installer against the lettered
side of bearing.
Install new front bearing (large) from the forward
end of bearing housing. Use Bearing
Installer,
PIN
339751. Position installer against the lettered
side of bearing.
278
25/30 MODELS
. Install new bearing
in
aft
end
of bearing housing.
Use Bearing
Installer,
PIN
335820. Position
installer against the lettered side of bearing. Press
the bearing into the housing
until the tool is seated
on
the housing.
21793
Install new bearing
in
the forward end of the bear-
ing
housing. Use Bearing Installer,
PIN
321428.
Position
installer against the lettered side of bear-
ing.
E
o
U
Qj
)(
~
Qj
~
ii
E
