MAINTENANCE
LUBRICATION
1. Swivel bracket fitting
2. Lower swivel bracket area
3. Pivot points
Throttle and Shift Linkage
DR21886

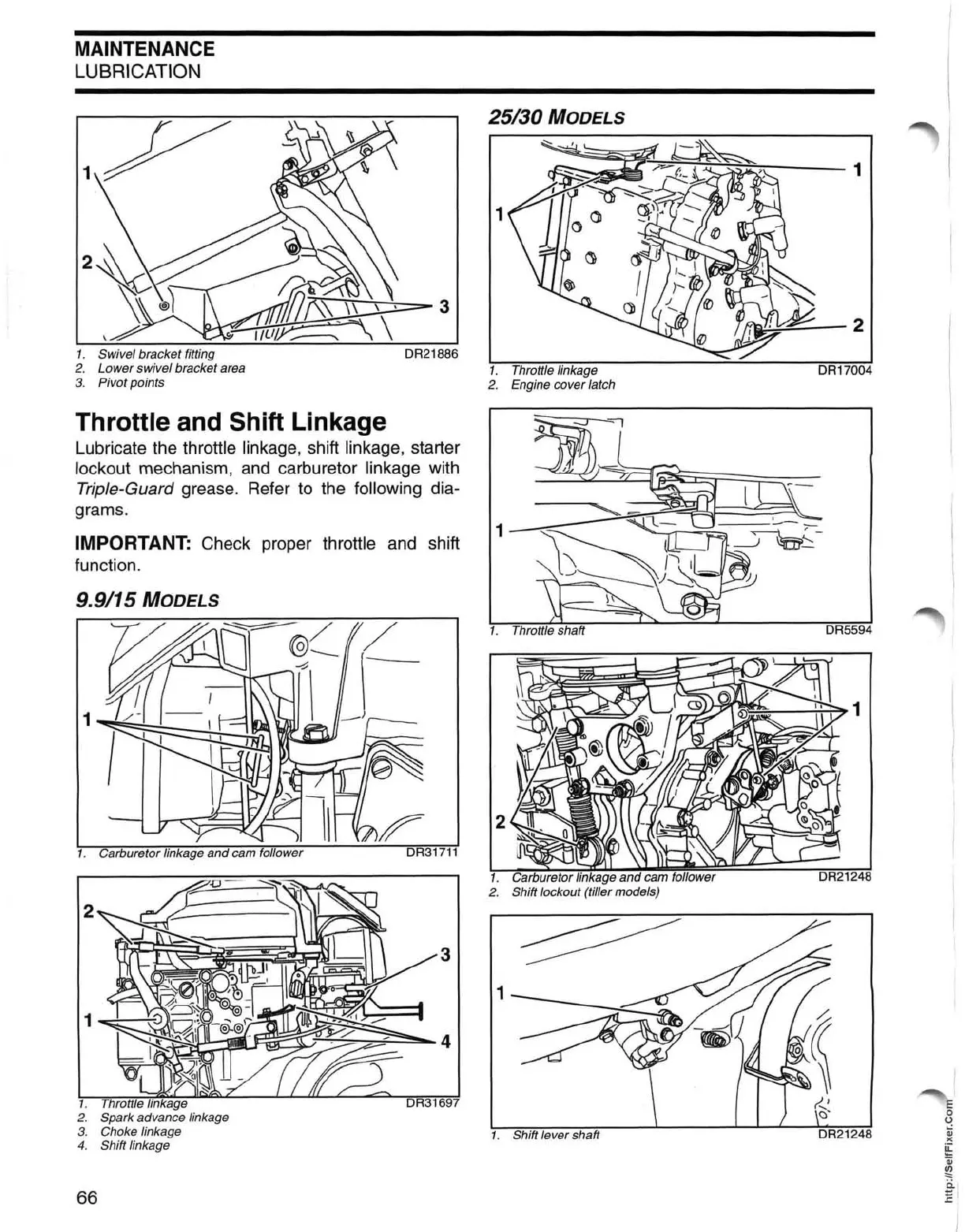

Lubricate the throttle linkage, shift linkage, starter
lockout mechanism, and carburetor linkage with
Triple-Guard grease. Refer to the following dia-
grams.
IMPORTANT: Check proper throttle and shift
function.
9.9/15
MODELS
66
25/30
MODELS
1
1. Throttle linkage
2. Engine cover latch
1.
Shift lever shaft
Q!.:..,~--
2
DR17004
DR5594
DR21248
o
o
~
><
~
OJ
~
ii
i
~
I
