XFP Uplink Module
Figure 8 on page 21 shows the XFP uplink module, which provides two ports for 10-gigabit
XFP transceivers.

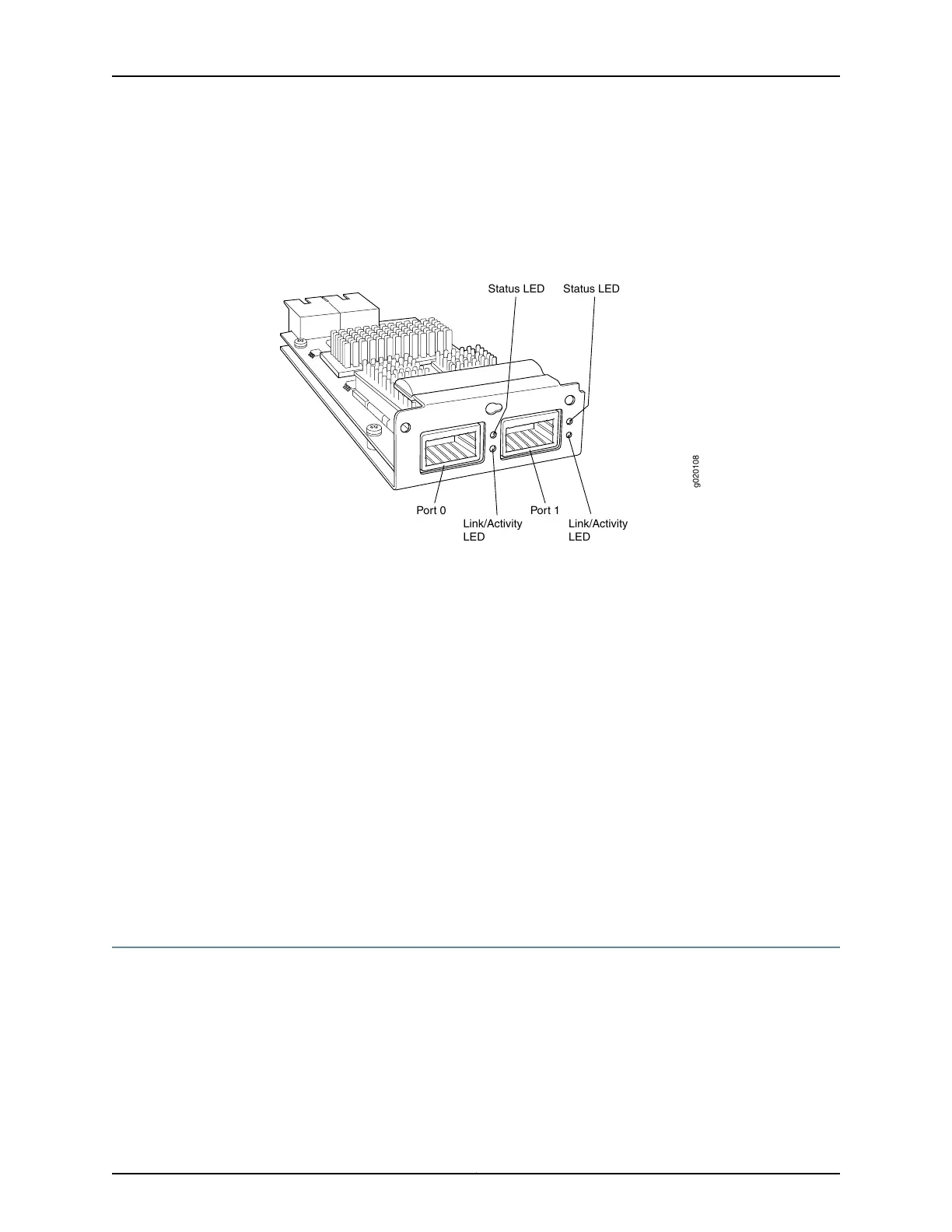

Figure 8: XFP Uplink Module
g020108
Link/Activity
LED
Link/Activity
LED
Status LED Status LED
Port 0 Port 1
XFP uplink modules are shipped with a dust cover preinstalled in one port.
The XFP uplink module requires Junos OS for EX Series switches, Release 9.0 or later.
Related
Documentation
Network Port LEDs in EX4200 Switches on page 24•
• Uplink Modules Connector Pinout Information for EX4200 Switches on page 99
• Pluggable Transceivers Supported on EX4200 Switches on page 79
• SFP+ Direct Attach Copper Cables for EX Series Switches on page 81
• Example: Configuring Aggregated Ethernet High-Speed Uplinks Between an EX4200
Virtual Chassis Access Switch and an EX4200 Virtual Chassis Distribution Switch
• Example: Configuring Aggregated Ethernet High-Speed Uplinks with LACP Between an
EX4200 Virtual Chassis Access Switch and an EX4200 Virtual Chassis Distribution Switch
• Installing an Uplink Module in an EX4200 Switch on page 187
• Troubleshooting Virtual Chassis Port Connectivity on an EX4200 Switch on page 238
Chassis Status LEDs in EX4200 Switches
The front panel of an EX4200 switch has three LEDs on the far right side of the panel,
next to the LCD panel (see Figure 9 on page 22).
