NOTE: EX4200-24PX andEX4200-48PX switchesdonot support the930 W
(EX-PWR-930-AC) or the 600 W (EX-PWR-600-AC) AC power supplies that
are used in the EX4200-48P and the EX4200-24P switch models.
EX4200-24PX andEX4200-48PX switcheswork only with thepower supplies
labeled EX-PWR2-930-AC or EX-PWR3-930-AC.All EX4200 switches support
EX-PWR2-930-AC and EX-PWR3-930-AC power supplies. You can find the
label on the top of the power supply (see “Removing a Power Supply from
an EX4200 Switch” on page 185).
This topic describes:
•
AC Power Supplies on page 34
•
DC Power Supplies on page 35
•
PoE Power Budget and AC Power Supplies on page 36
AC Power Supplies
All the EX4200 switches that are powered by AC power supplies except the
EX4200-24F-S and EX4200-48T-S switches are shipped with one AC power supply
pre-installed in the rear panel of the switches. EX4200-24F-S and EX4200-48T-S
switches are not shipped with pre-installed power supplies; you must order them
separately.
The AC power supply for the switch is available in 320 W, 600 W, and 930 W models
(see Figure 17 on page 34 and Figure 18 on page 35). The exterior of the 600 W model is
identical in appearance to that of the 930 W model. The 320 W power supply is flush
with the chassis. The 600 W power supply and 930 W power supply extend out of the
chassis by 2.25 in. The power cord retainer clips extend out of the power supply by 3 in.
The number of ports on which PoE is enabled determines the minimum power
requirements of different switch models.

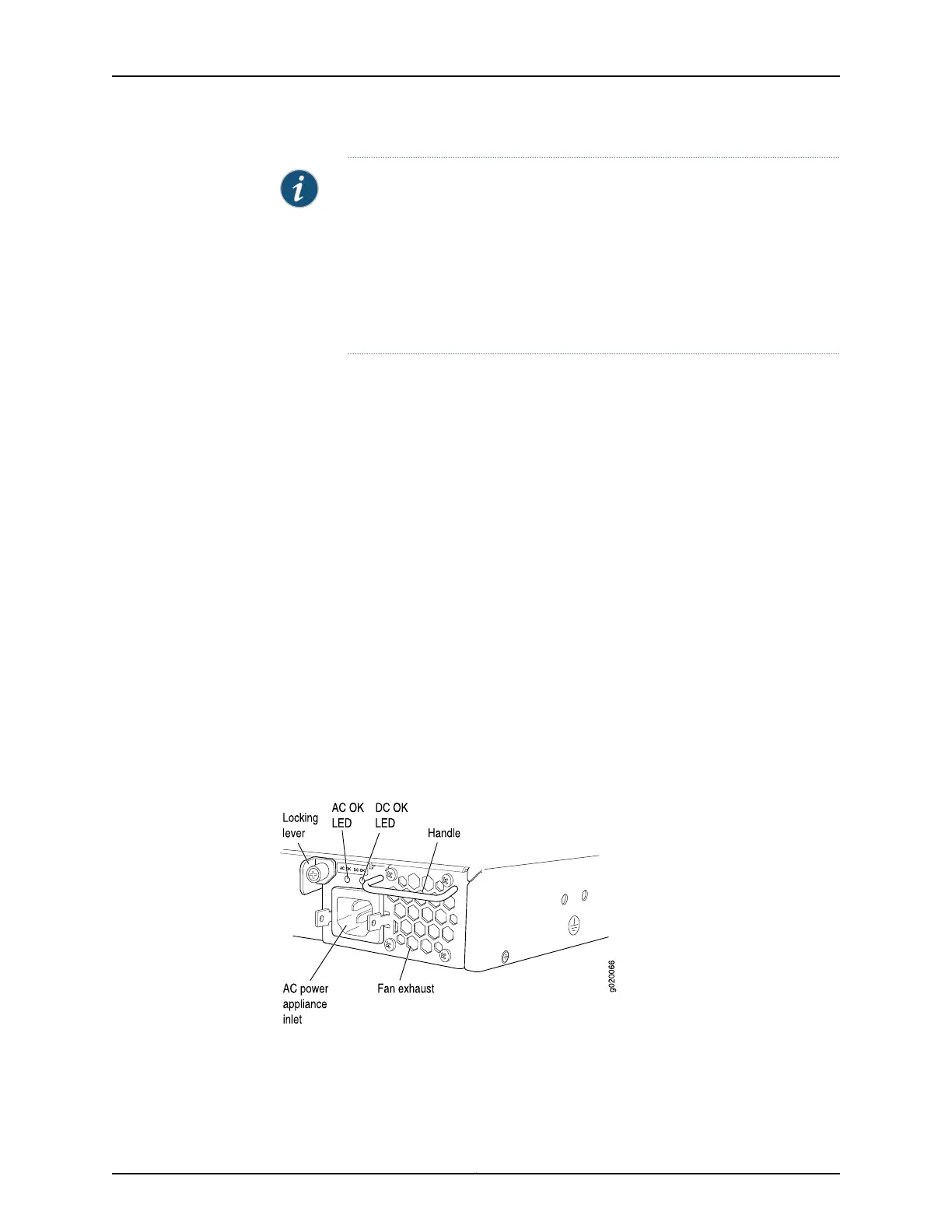

Figure 17: 320 W AC Power Supply
Copyright © 2017, Juniper Networks, Inc.34
EX4200 Switch Hardware Guide
