Table 35: MX5, MX10, MX40, and MX80 Rack Requirements and Specifications (continued)
GuidelinesRack Requirement
•
Secure the rack to the building structure.
•
If earthquakes are a possibility in your geographic area, secure the rack to the floor.
•
Secure the rack to the ceiling brackets as well as wall or floor brackets for maximum
stability.
Rack connection to the building
structure

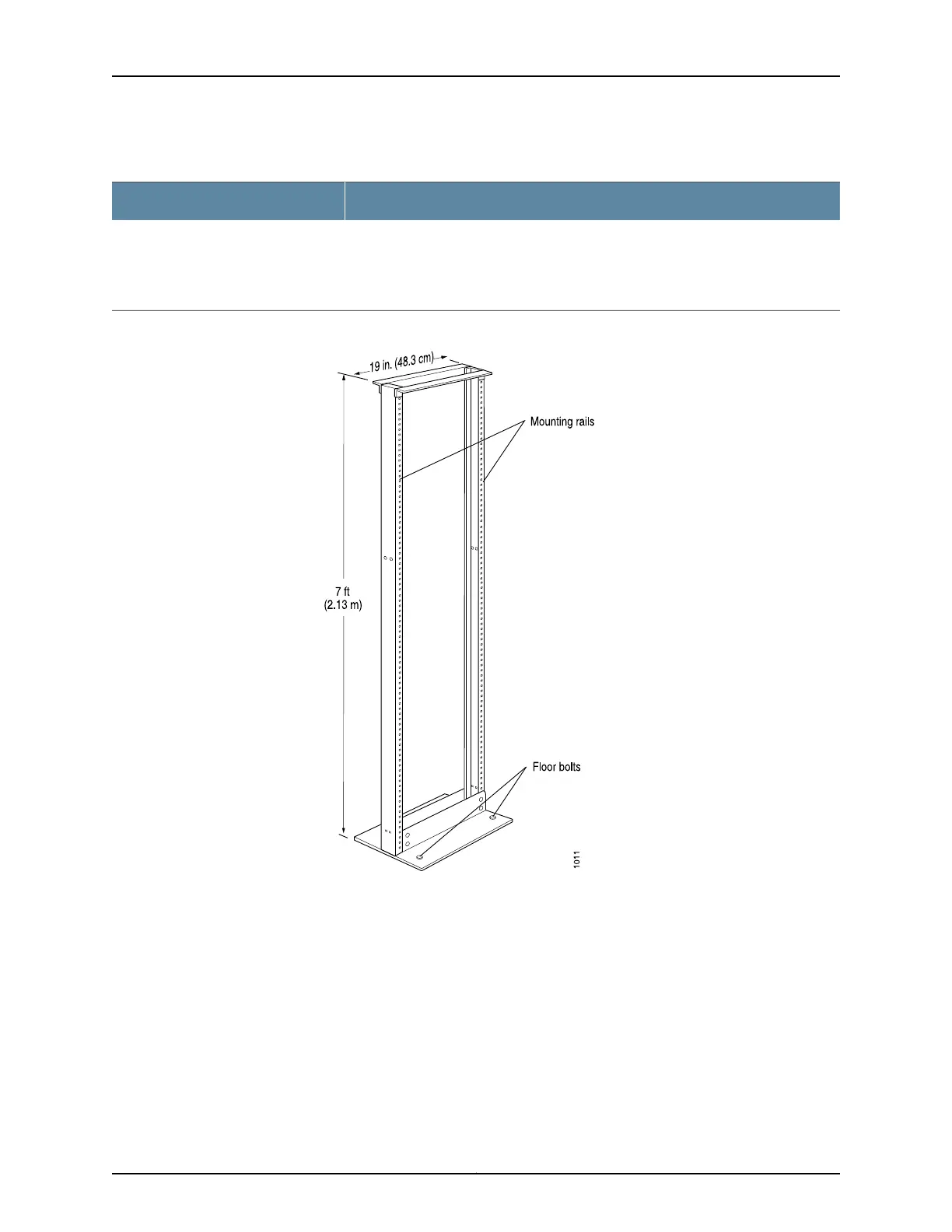

Figure 25: Typical Open-Frame Rack
MX5, MX10, MX40, and MX80 Routers Clearance Requirements for Airflow and Hardware
Maintenance
When planning the installation site, allow sufficient clearance around the rack (see
Figure 26 on page 66):
•
For the cooling system to function properly, the airflow around the chassis must be
unrestricted. Allow at least 6 in. (15.2 cm) of clearance between side-cooled routers.
Allow 2.8 in. (7 cm) between the side of the chassis and any non-heat-producing
surface such as a wall.
65Copyright © 2019, Juniper Networks, Inc.
