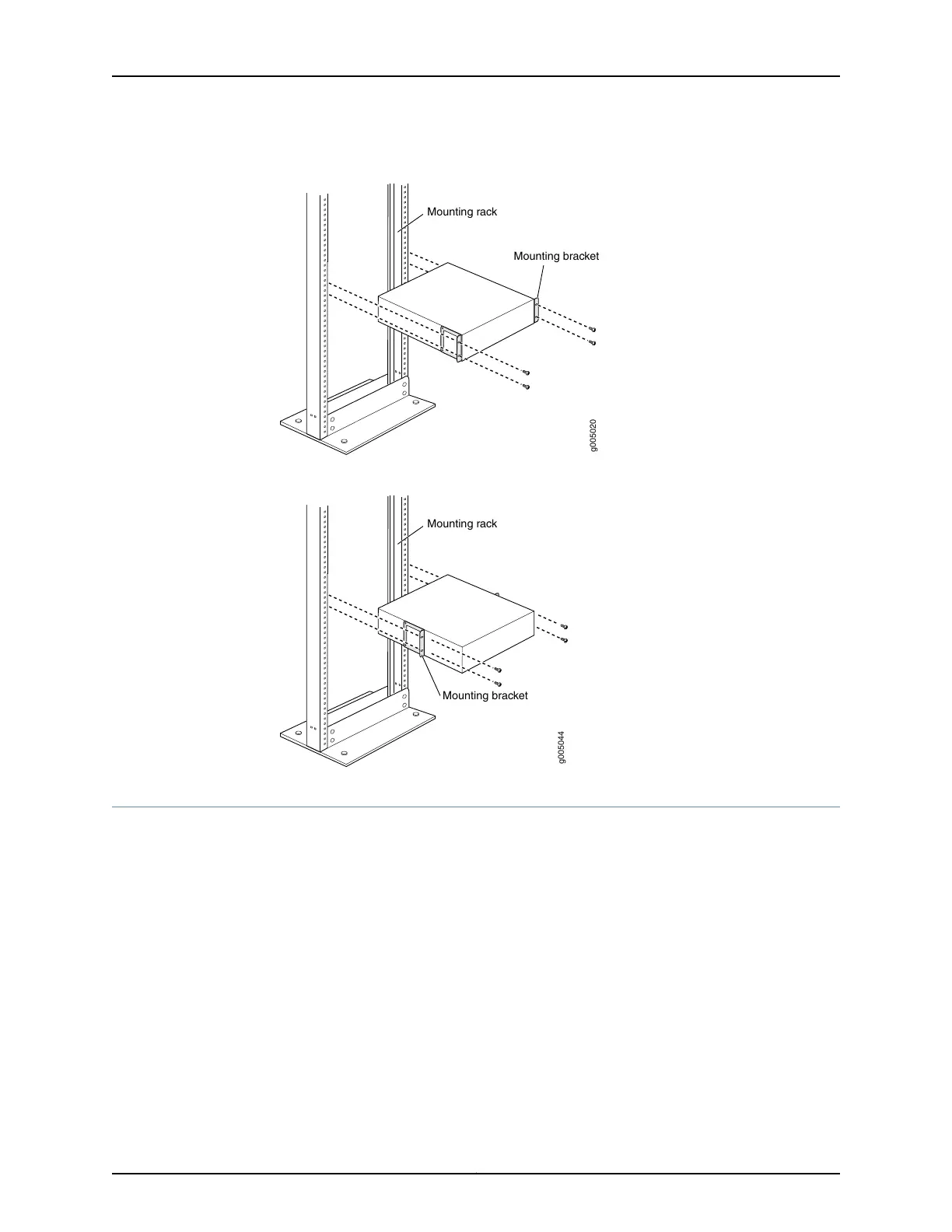

Figure 31: Installing the Front-Mounted Router in the Rack
Mounting rack
Mounting bracket
g005020
Figure 32: Installing the Center-Mounted Router in the Rack
Mounting rack
Mounting bracket
g005044
Connecting the MX5, MX10, MX40, and MX80 Routers to Power
•
Tools and Parts Required for MX5, MX10, MX40, and MX80 Router Grounding and
Power Connections on page 83
•
Grounding MX5, MX10, MX40, and MX80 Routers on page 83
•
Connecting Power to an AC-Powered MX5, MX10, MX40, and MX80 Router on page 84
•
Powering On an AC-Powered MX5, MX10, MX40, and MX80 Router on page 85
•
Connecting Power to a DC-Powered MX5, MX10, MX40, and MX80 Router on page 86
•
Powering On a DC-Powered MX5, MX10, MX40, and MX80 Router on page 88
•
Powering Off MX5, MX10, MX40, and MX80 Routers on page 90
Copyright © 2019, Juniper Networks, Inc.82
MX5, MX10, MX40, and MX80 Universal Routing Platforms Hardware Guide
