Juniper SRX110 Hardware Guide

Table 47: RJ-45 Connector Pinouts for the Services Gateway Ethernet
Port (1 Gbps) (continued)
SignalPin
BI_DB+3
BI_DC+4
BI_DC-5
BI_DB-6
BI_DD+7
BI_DD-8
Related
Documentation
Interface Cable and Wire Specifications for the SRX110 Services Gateway on page 135•
• RJ-45 Connector Pinouts for the SRX110 Services Gateway Console Port on page 137
RJ-45 Connector Pinouts for the SRX110 Services Gateway Console Port

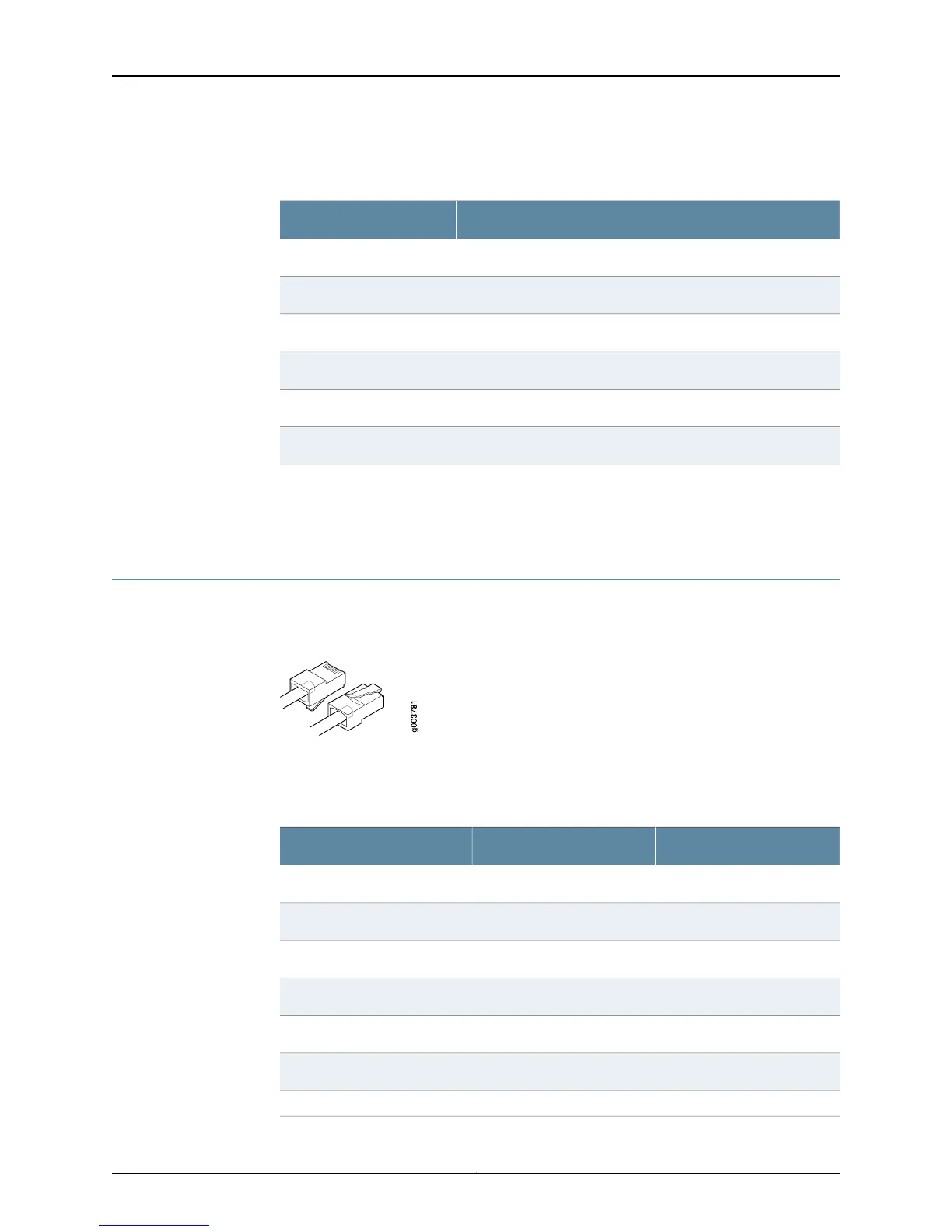

Figure 29 on page 137 shows the RJ-45 connector pinouts for the console port.
Figure 29: Console Cable Connector
Table 48 on page 137 describes the RJ-45 connector pinouts for the console port.
Table 48: RJ-45 Connector Pinouts for the Services Gateway Console
Port
DescriptionSignalPin
Request to SendRTS1
Data Terminal ReadyDTR2
Transmit DataTXD3
Signal GroundGround4
Signal GroundGround5
Receive DataRXD6
Data Set ReadyDSR/DCD7
137Copyright © 2013, Juniper Networks, Inc.
Appendix C: SRX110 Services Gateway Interface Cable Specifications and Connector Pinouts
