Table 6: SRX110 Services Gateway Front Panel Components (continued)
ComponentNumber
Fast Ethernet ports4
Console port5
Reset Config button6
LEDs: SYNC and TX/RX7
•
For SRX110H-VA—VDSL/ADSL-POTS
•
For SRX110H-VB—VDSL/ADSL-ISDN
8
For more information on the front panel components, see the following topics:
•
SRX110 Services Gateway Built-In Interfaces on page 11
•
SRX110 Services Gateway LEDs on page 13
•
SRX110 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 15
SRX110 Services Gateway Back Panel View

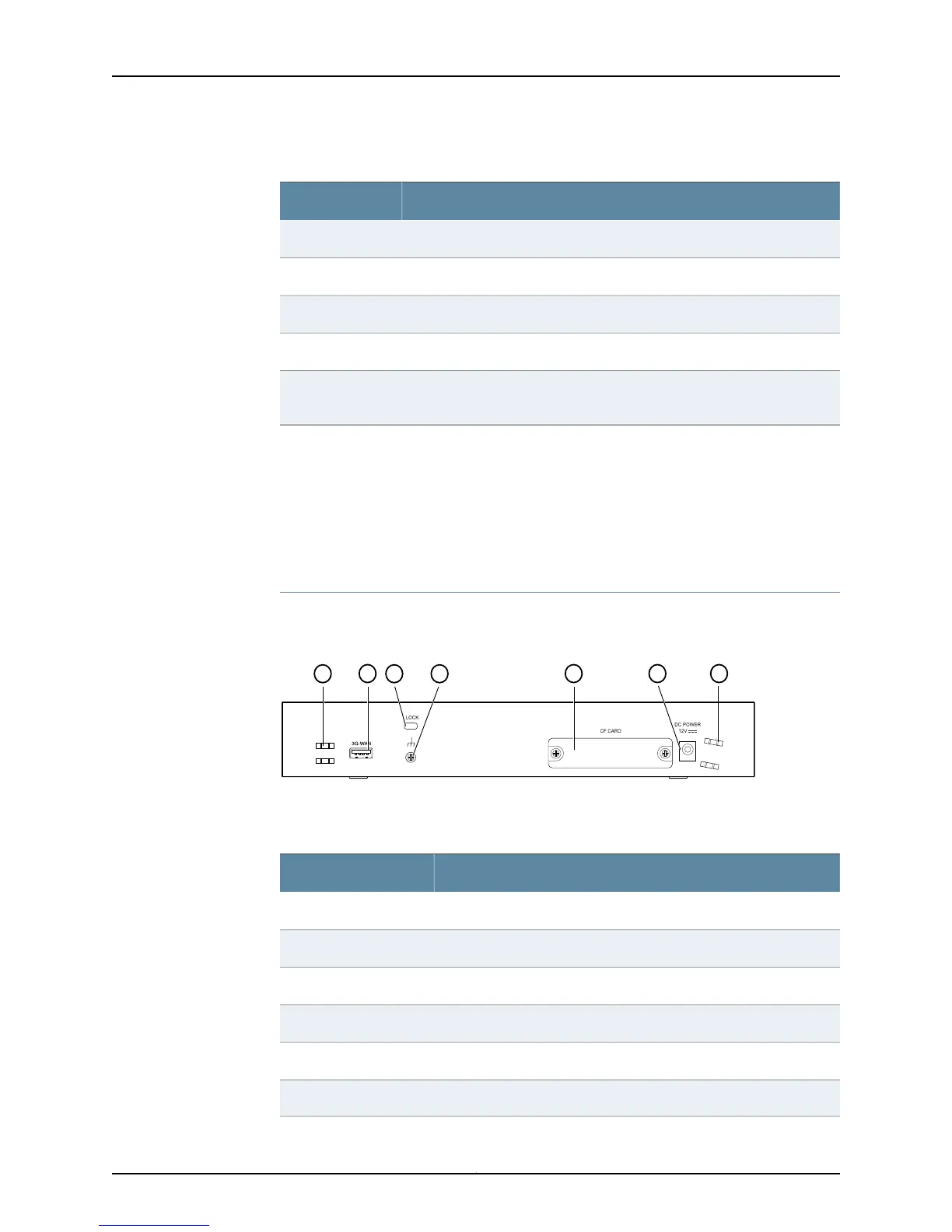

Figure 5 on page 10 shows the back panel of the SRX110 Services Gateway.
Figure 5: SRX110 Services Gateway Back Panel
g033603
1 3 4
2 5 6 7
Table 7 on page 10 lists the back panel components of the SRX110 Services Gateway.
Table 7: SRX110 Services Gateway Back Panel Components
ComponentNumber
Cable tie holder1
3G-WAN USB port2
Lock3
Grounding point4
CompactFlash card5
Power supply unit6
Copyright © 2013, Juniper Networks, Inc.10
SRX110 Services Gateway Hardware Guide
