Juniper SRX110 Hardware Guide

• SRX110 Services Gateway LEDs on page 13
SRX110 Services Gateway LEDs
This topic includes the following sections:
•
SRX110 Services Gateway Front Panel LEDs on page 13
•
SRX110 Services Gateway Ethernet Port LEDs on page 14
SRX110 Services Gateway Front Panel LEDs
Figure 6 on page 13 shows the SRX110 Services Gateway Front Panel LEDs.

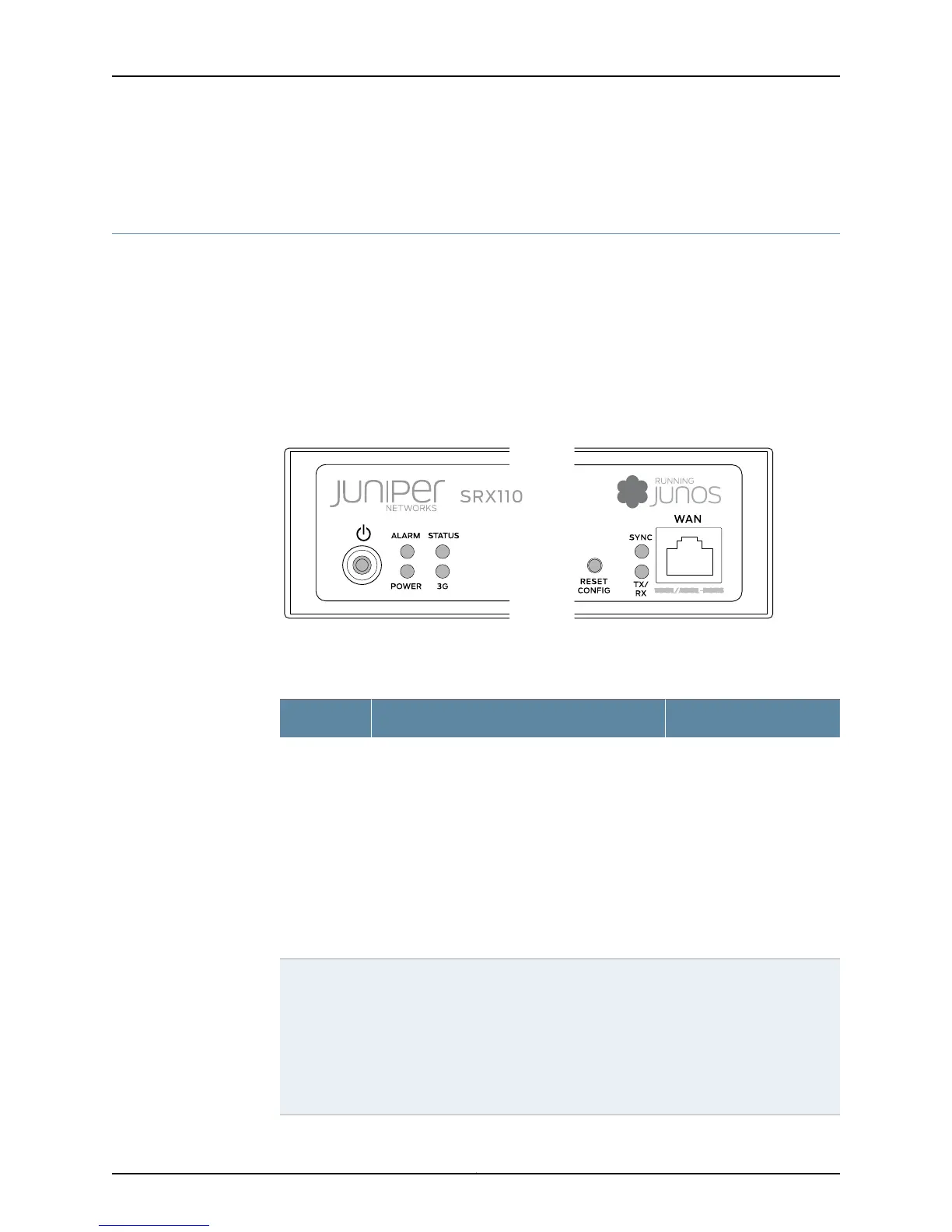

Figure 6: SRX110 Services Gateway Front Panel LEDs
g033605
Table 9 on page 13 lists the LED indicators on the SRX110 Services Gateway front panel.
Table 9: SRX110 Services Gateway Front Panel Components LEDs
UsageDescriptionComponent
The Alarm LED can be used
to gather information on
critical, major, or minor
alarms or to determine if the
device is functioning
normally.
The Alarm LED has the following indicator colors:
•
Solid red indicates a critical alarm.
•
Solid amber and steadily on indicates a major
alarm.
•
Green indicates that the device is functioning
normally with no alarms.
•
Off indicates that the device is not powered on.
NOTE: When the system is up and running, if the
Alarm LED is off, it indicates that no alarms are
present on the device.
Alarm LED
The Status LED can be used
to determine whether the
device is starting up, is
functioning normally, or has
failed.
The Status LED has the following indicator colors:
•
Solid green indicates that the device is
functioning normally.
•
Solid amber and steadily on indicates that the
device is starting up.
•
Solid red indicates that the device has failed.
•
Off indicates that the device is not powered on.
Status LED
